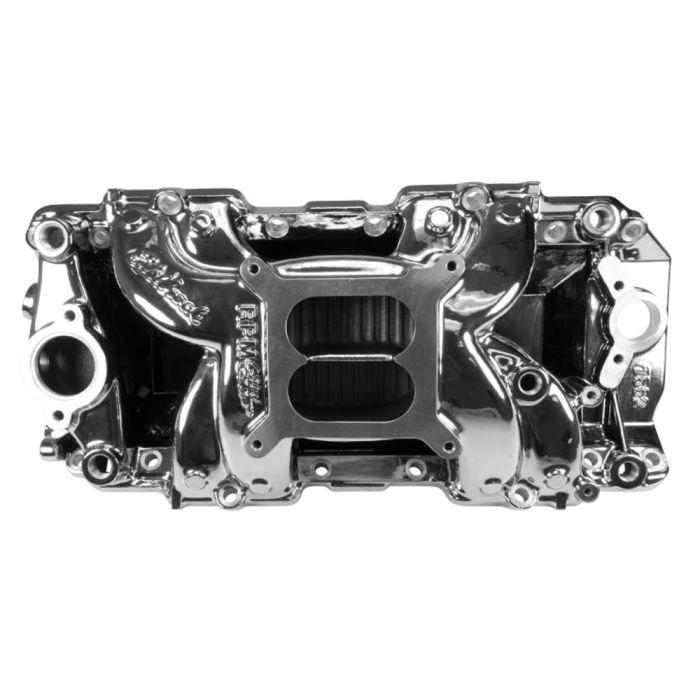

Edelbrock RPM Air-Gap Intake Manifold Chrome Plasma 396-502 Big Block Chevy

This intake manifold (7562-CP) transforms your big block Chevy engine’s street and strip performance. The dual-plane intake operates in the 1500-6500 RPM range, ideal for strong mid- to high-end power. The innovative Air-Gap design isolates the runners from hot engine oil to deliver a cooler, denser air/fuel charge for increased horsepower. Built from lightweight aluminum and finished in Chrome Plasma for a custom look, this intake combines form and function.

Features and Benefits:
- Designed for 396-502ci big block Chevys
- Rectangular port configuration
- Dual-plane with Air-Gap cooling design
- Chrome Plasma aluminum finish
- Accepts 750-800 CFM carburetors
- Compatible with late-model accessory brackets
- Rear water outlets and nitrous bosses included
- Operates in 1500-6500 RPM range

Specifications:
- UPC: 085347898381
- Material: aluminum
- Finish: chrome plasma
- Grade type: performance
- Gasket or seal included: no
- Manifold height: A-4.45", B-6.0"
- Carb pad height: 5.22"
- Port exit size 1.56" x 2.24"

Vehicle Fitment:
- 1960-1987 Chevy C10s
- Fits 396-502 CID Big Block Chevy Engines

Tech Tips:
- Recommended intake gasket: Edelbrock #7202.
- Carb recommendations: Edelbrock AVS2 or Performer Series 750-800 cfm.
- Use bracket #8031 for 1972-1978.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076.
- Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

Please Note: Will not fit under the stock hoods of Chevy Corvettes, 1964-1967 Chevy Chevelles, or 1967-1981 Chevy Camaros. Do not use end seal gaskets.
