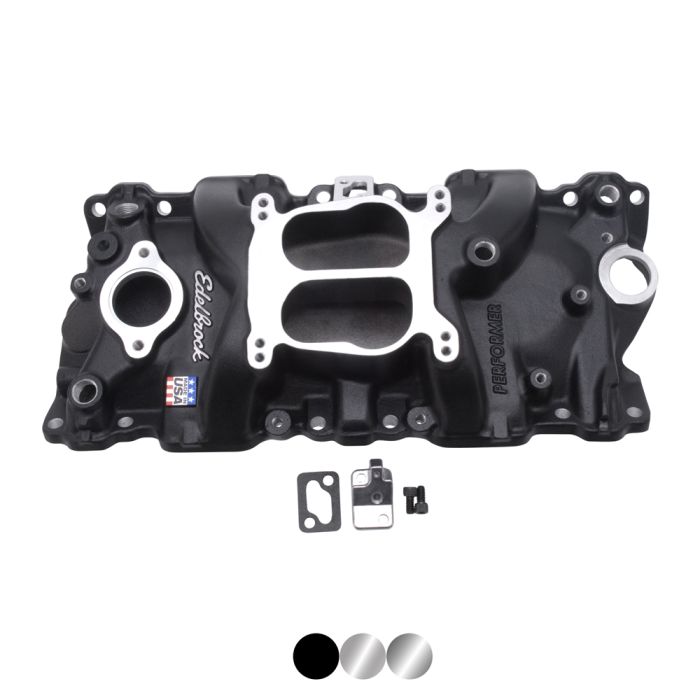

Edelbrock Performer Intake Manifold For Small Block Chevy Engine 1987-1995

Boost your street-driven 1987-1995 small-block Chevy engine with this intake manifold. It uses a dual-plane, low-rise intake design to maximize torque and throttle response across the RPM range. The Performer intake is optimized for idle to 5,500 RPM, making it ideal for everyday driving, light towing, 4x4s, trucks, and RVs. Compared to factory intakes, it improves both low- and mid-range power, ensuring smoother acceleration and better drivability.

Features and Benefits:
- Dual-plane Performer design for torque and throttle response
- Direct fit for 1987-1995 cast iron heads with canted center bolts
- Built for Chevy small block V8 engines (262-400ci)
- Accepts 4150-style Edelbrock or Q-jet carburetors
- Non-EGR design for improved airflow and performance
- Power range from idle to 5,500 RPM
- Improves drivability compared to stock manifolds
- Available in a black, polished, or satin finishes

Vehicle Fitment:
- Fits 1987-1995 Chevy 262-400ci V8 with cast iron heads and canted center bolts

Specifications:
- Center maximum height: 4.050”
- CNC ported: no
- Front maximum height: 3.500”
- Rear maximum height: 4.600”
- Port exit dimensions: 1.14” x 1.88”
- Carb pad height: 4.05”

Tech Tips:
- Recommended carburetor: Edelbrock AVS2 Series or Performer Series Carbs.
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant P/N: EDL1076. Do not use end seals gaskets.
- NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
- Do not overtighten NPT/Pipe fittings; this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
- Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
