Edelbrock Pro-Flo 4 EFI System for 1986-Earlier Small Block Chevy Engines

Edelbrock:
35690
$2,185.95

Edelbrock Pro-Flo 4 EFI System for 1986-Earlier Small Block Chevy Engines

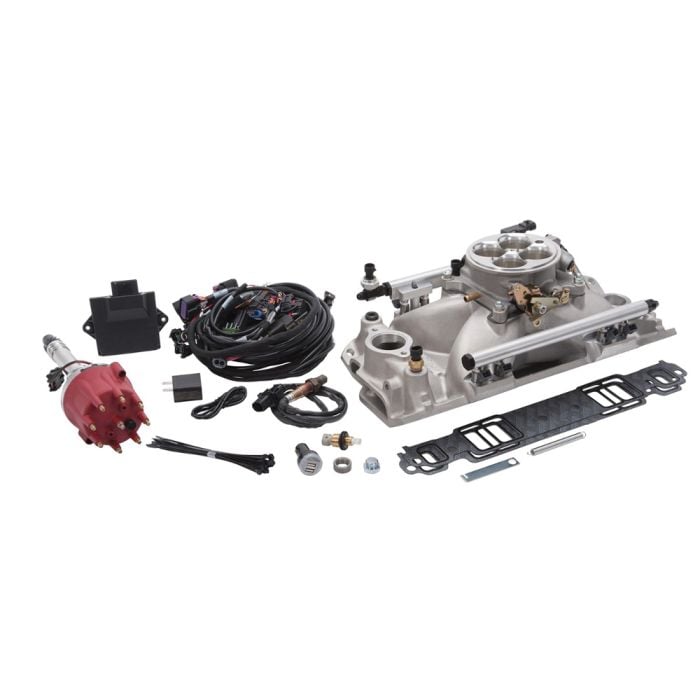

The Edelbrock part # 35690 Pro-Flo 4 EFI System for 1986 & Earlier Small-Block Chevy engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style satin finish single plane intake manifold and 42 Lb/Hr injectors capable of 675 HP. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get maximum performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. If you don't have a compatible device, then we also offer kits that include a 7" Android tablet with the E-Tuner 4 app pre-installed. Multiple dash displays are included to allow you to monitor engine vitals with an Android smart phone or tablet. Pro-Flo 4 does not require laptop tuning.

Installation Notes

    This kit will require a high pressure EFI fuel delivery system. Fuel delivery systems are available and sold separately. 35690 manifold height: 4.58". Throttle body height: 2.25"



-1975 Chevrolet C10
-1976 Chevrolet C10
-1977 Chevrolet C10
-1978 Chevrolet C10
-1979 Chevrolet C10
-1979 GMC C1500
-1979 GMC C2500
-1979 GMC C3500
-1980 Chevrolet C10
-1980 GMC C1500
-1980 GMC C2500
-1980 GMC C3500
-1981 Chevrolet C10
-1981 GMC C1500
-1981 GMC C2500
-1981 GMC C3500
-1982 Chevrolet C10
-1982 GMC C1500
-1982 GMC C2500
-1982 GMC C3500
-1983 Chevrolet C10
-1983 GMC C1500
-1983 GMC C2500
-1983 GMC C3500
-1984 Chevrolet C10
-1984 GMC C1500
-1984 GMC C2500
-1984 GMC C3500
-1985 Chevrolet C10
-1985 GMC C1500
-1985 GMC C2500
-1985 GMC C3500
-1986 Chevrolet C10
-1986 GMC C1500
-1986 GMC C2500
-1986 GMC C3500

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:
