Edelbrock Throttle Body Victor Electric Fuel Injection 4-Barrel

Edelbrock:
4150

Highlights

  • 1000CFM Flow Rating
  • Classic Satin Finish
  • Accepts Standard Air Cleaner
  • Progressive Valve Linkage
$385.95

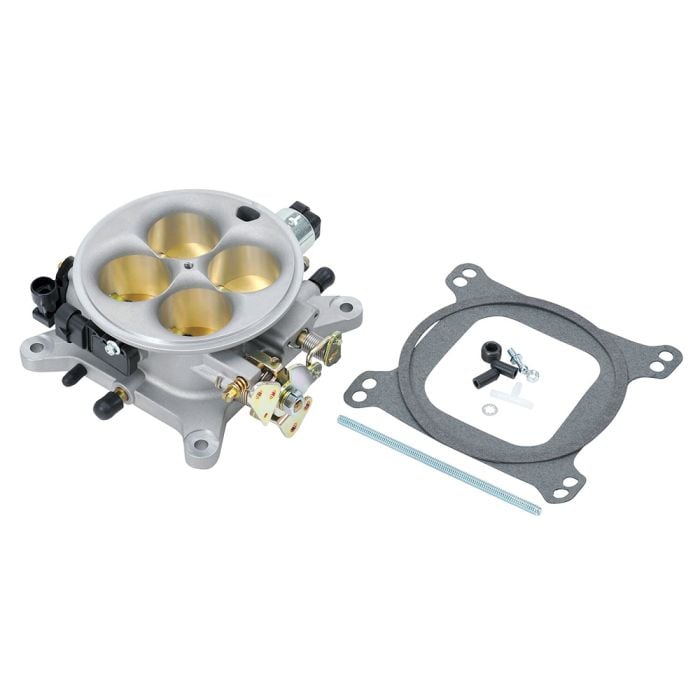

Edelbrock Victor Electric Fuel Injection 4-Barrel Throttle Body.

The Edelbrock Victor EFI 4-Barrel Throttle Body 4150 is a high-quality satin-finished component with four 1.75-inch throttle bores for a 1,000 CFM flow rating. Create a great relationship between your EFI manifold and this throttle body for optimized air control with over 1,000cfms.

The Edelbrock Victor EFI 4150-style base flange throttle body will fit most of the Edelbrock Victor and Pro-Flo 4 style manifolds or other similar manifolds with a 4150-style square-bore carburetor flange and standard bolt spacing. The Victor EFI Four-Barrel Throttle Body will accept a standard air cleaner with a 5-1/8-inch flange and the assembly includes a Delphi/GM 4-pin stepper-style idle air control (IAC) motor with a GM-style 3-pin throttle position sensor (TPS) and 1-bar GM MAP sensor.

Included are multiple vacuum take-off and a MAP sensor mounting location incorporated on the housing. Precision throttle control is provided by a progressive linkage with provisions for a 700R4-style throttle valve cable.

Specifications:
- Base flange to air cleaner flange: 2.53"
- Full diecast machinedconstruction
- Vacuum take-offs: 3/8 and 1/4 at the front with 3/8, 1/4 and 3/16 at the rear, and another 3/16 on the passenger side

Features:
- Fits EFI applications
- 1000 CFM throttle body
- Satin finish
- Diecast and fully machined construction
- Includes gaskets

Vehicle Fitment:
- 1965-1973 Mustang
- 1960-1966 Bronco
- 1948-1979 F100
- 1960-1987 C10

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following Bronco years:

  • 1966

This product will fit the following C10 years:

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,

This product will fit the following Mustang years:
