Hotchkis Stage 2 Front TVS Suspension System Mustang 67-70

Upgrade the handling, ride quality, and overall performance of your 1967-1970 Mustang with this suspension system. It eliminates the guesswork of mixing components by providing everything needed to improve stability, traction, and steering response in one kit.

The system includes geometry-corrected tubular upper control arms and tubular lower control arms with corrected ball joint angle for lowered ride heights. Subframe connectors add chassis rigidity, and included hardware ensures proper installation for a well-integrated suspension upgrade.

Features and Benefits:
- Complete TVS system eliminates mixing and matching parts
- Geometry-corrected control arms improve alignment and handling
- Adjustable strut rods increase caster and steering stability
- Front coil springs provide 0.5" drop
- Rear multi-leaf springs provide 1.5" drop
- 32mm front sway bar and adjustable 22mm rear sway bar
- Includes tuned front and rear shocks by Fox
- Subframe connectors improve chassis rigidity
- Includes mounting hardware and end links

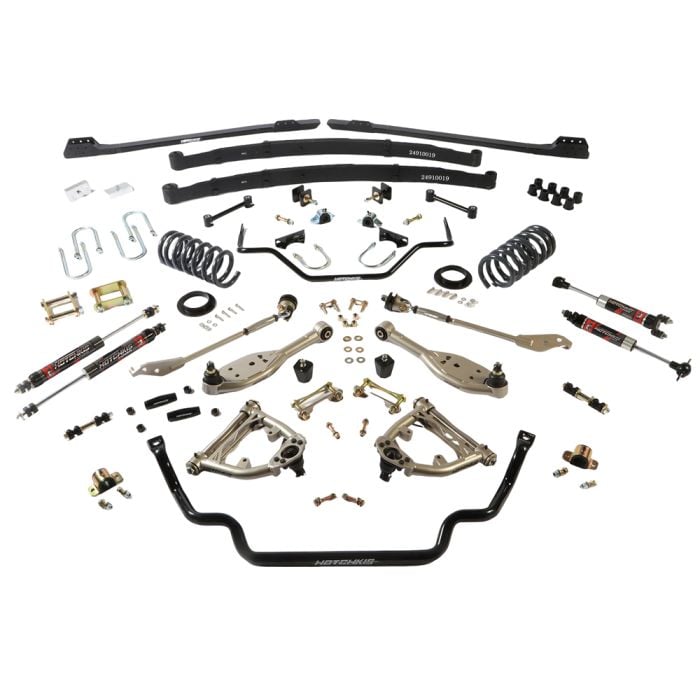

Kit Includes:
- Adjustable tie rod sleeves
- Steel U-bolts
- Laser-cut axle and frame rail mounts
- Polyurethane bushings
- Grade 8 bolts
- TIG-welded steel dog-bone end links

Vehicle Fitment:
- 1967-1970 Mustangs with a Small Block Engine
- Fits Coupes and Fastback models
- Does not fit Convertible models
