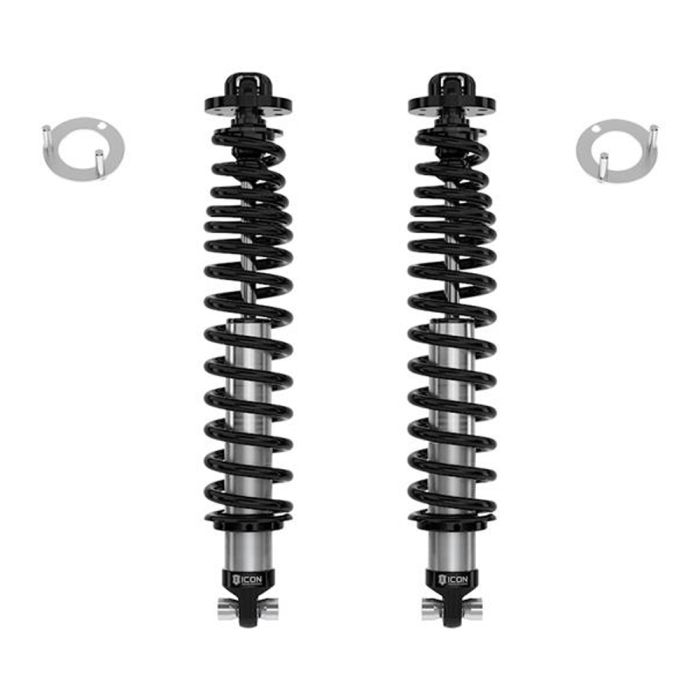

ICON Vehicle Dynamics V.S. 2.5 Series Coilover Kit Internal Reservoir Rear Bronco 2021-2024

These V.S. 2.5 Series Rear Coilover Shocks lift the rear of your 2021-2024 Bronco by 2 to 3 inches for 4-door non-Sasquatch models and 1-1/4 to 2-1/4 inches over stock Sasquatch 4-doors models. They use larger 2-1/2 inch bodies for increased wheel travel up to 14 inches while also enhancing ride quality on or off the road!

Features and Benefits:
- Rear-specific coilover shocks
- Increases wheel travel up to 14"
- Enhanced ride quality over stock
- Tuned for vehicle-specific shock damping and control
- Adjustable up to 2-3" front lift for non-Sasquatch models
- Adjustable up to 1-1/4" to 2-1/4" front lift for Sasquatch models
- ICON-engineered triple-rate coil springs
- CNC-machined 6061 aircraft-grade aluminum shock parts
- CAD-plated 7/8" diameter shock bodies resist corrosion
- FK rod end bearings minimize deflection and extend lifespan
- Fully rebuildable and re-tunable design
- 100% bolt-on installation with no drilling, cutting, or welding
- Made in the USA

These shocks from ICON Vehicle Dynamics allow you to run bigger tires on your Bronco, making for an upgrade to your suspension system. Their triple-rate coil springs improve your vehicle's resistance to bottom-outs by allowing for a softer spring rate when the vehicle is heightened. This all combines to create a more enjoyable ride experience, especially when paired with the same shocks in the front. These shocks (48610) are rebuildable and re-tunable, and they're CAD-plated to resist corrosion over time.

Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels (With Sasquatch Package): 17x8.5" w/ 4.75" Backspace / 0mm Offset
- Recommended Aftermarket Wheels (With Sasquatch Package): 18x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels (With Sasquatch Package): 20x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels (Without Sasquatch Package): 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels (Without Sasquatch Package): 18x9" w/ 6.00" Backspace / 25mm Offset
- Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
- Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers)
- Factory UCAs will not align properly past 2-1/2" of lift. An aftermarket UCA is recommended for lift higher than this.
- When running 37" tires use Up Travel Limiters part #611074 in the rear.
- Recommended Crash Bars part #42000 on non-Sasquatch equipped vehicles when running 35" tires.
- Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier-equipped Broncos, consider part number 48613.
- Lift height ranges advertised are for 4-door models. Any 2-door models will net approximately 1/2" of additional rear lift over stock.

Vehicle Fitment:
- 2021-2024 Ford Bronco with Sasquatch

*Not compatible with Bronco Raptor.
