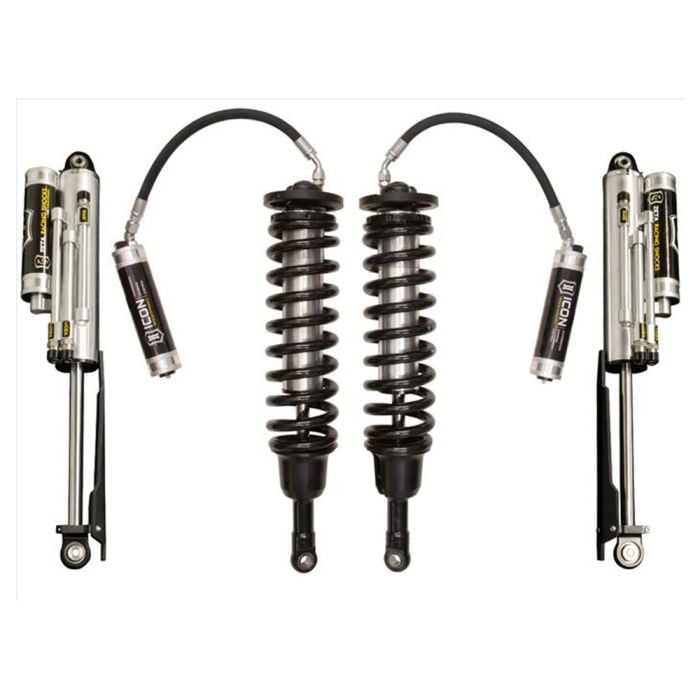

ICON Vehicle Dynamics Stage 1 Suspension System Raptor 2010-2014

For off-road enthusiasts looking to upgrade their ride, the ICON Vehicle Dynamics Stage 1 Suspension System (K93051) is a serious game-changer. Specifically designed for 2010-2014 Raptors, this system boasts a 3.0 series adjustable coilover shock that yields a 1-3" front-end lift and increased wheel travel. With vehicle-specific valving and a 50% increase in damping over OE shocks, the Stage 1 Suspension System provides superior low-speed control and reduces body roll in corners.

Features and Benefits:
- 3.0 series adjustable coilover shock
- Adjustable coilovers yield 1-3” front-end lift
- Increased wheel travel
- Vehicle-specific valving
- 50% increase in damping over OE shocks
- Superior low-speed control
- Reduced body roll in corners
- Easy-to-adjust compression damping control valve
- 10 compression damping settings
- Multi-stage hydraulic “bump zone”
- PiggyBack reservoir
- High-quality ICON-engineered chrome silicon steel springs
- CNC-machined 1” shock shafts
- CAD plated shock body
- Hard anodized piston and top cap
- Digressive rebound and flutter stack compression
- Made in the USA

The easy-to-adjust compression damping control valve offers 10 compression damping settings and a multi-stage hydraulic "bump zone," while the PiggyBack reservoir ensures high-quality performance. Constructed with ICON-engineered chrome silicon steel springs, CNC-machined 1" shock shafts, and a CAD-plated shock body, this system is built to last. Featuring a hard anodized piston and top cap, digressive rebound, and flutter stack compression, the ICON Vehicle Dynamics Stage 1 Suspension System is the ultimate addition to any off-road vehicle.

Additional Notes:
- OEM Wheels and Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock-Equipped Vehicle
- Ships in multiple boxes
