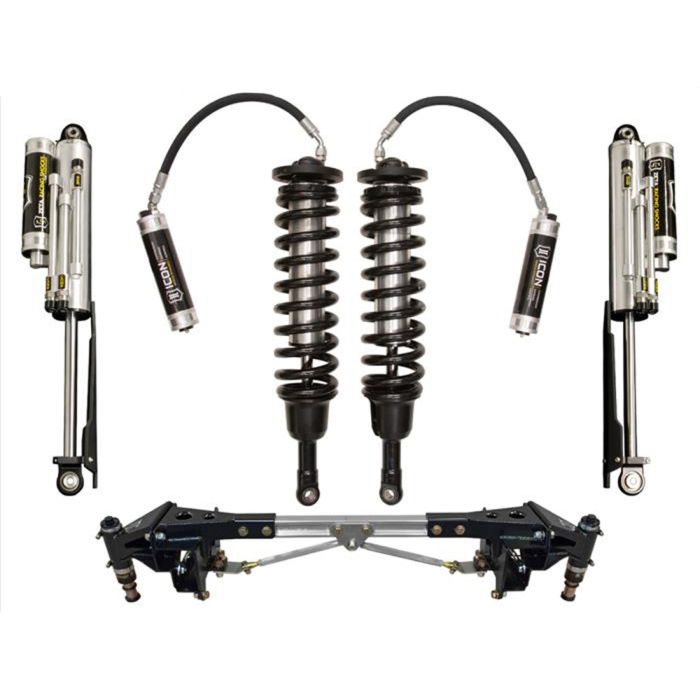

ICON Vehicle Dynamics Stage 2 Suspension System Raptor 2010-2014

Specifically designed for the 2010-2014 Ford Raptor, the ICON Vehicle Dynamics Stage 2 Suspension System (K93052) delivers increased wheel travel, superior low-speed control, and reduced body roll in corners. The 3.0 series adjustable coilover shock and adjustable coilovers that yield a 1-3" front-end lift are just the beginning. With vehicle-specific valving, a 50% increase in damping over OE shocks, and an easy-to-adjust compression damping control valve with 10 compression damping settings and a multi-stage hydraulic "bump zone," this suspension system is the ultimate choice for serious off-road performance.

Features and Benefits:
- 3.0 series adjustable coilover shock
- Uniball upper control arms
- Adjustable coilovers yield 1-3” front-end lift
- Increased wheel travel
- Vehicle-specific valving
- 50% increase in damping over OE shocks
- Superior low-speed control
- Reduced body roll in corners
- Easy-to-adjust compression damping control valve
- 10 compression damping settings
- Multi-stage hydraulic “bump zone”
- Nitrogen-charged 6063-T832 aluminum 10” remote reservoirs
- High-quality ICON-engineered chrome silicon steel springs
- CNC-machined 1” shock shafts
- CAD plated shock body
- Hard anodized piston and top cap
- Increased frame rigidity and fluid flow
- Digressive rebound and flutter stack compression
- Direct bolt-in installation
- Made in the USA

The nitrogen-charged 6063-T832 aluminum 10" remote reservoirs and high-quality ICON-engineered chrome silicon steel springs work in tandem to provide your suspension maximum performance. The CNC-machined 1" shock shafts, CAD plated shock body, hard anodized piston, and top cap offer and increased frame rigidity for a system that can handle even the most extreme off-roading conditions. With direct bolt-in installation and made in the USA quality, the ICON Vehicle Dynamics Stage 2 Suspension System is the perfect choice for any serious off-road enthusiast.

Additional Notes:
- OEM Wheels and Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock-Equipped Vehicle
- Aftermarket Exhaust May Need To Be Slightly Modified For Use With This Kit
- Ships In Multiple Boxes
