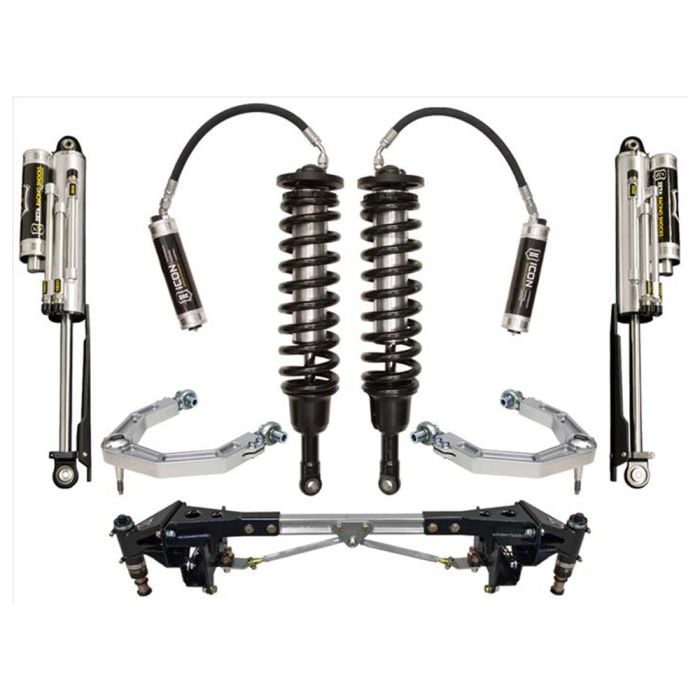

ICON Vehicle Dynamics Stage 3 Suspension System Raptor 2010-2014

If you're looking to upgrade your 2010-2014 Raptors suspension system, the ICON Vehicle Dynamics Stage 3 Suspension System (K93053) is a serious contender. With its 3.0 series adjustable coilover shock and Delta joint upper control arms, you can expect a 1-3" front-end lift and increased wheel travel, which is perfect for off-road adventures. Not only that, but this suspension system also has vehicle-specific valving, which means you'll experience superior low-speed control and reduced body roll in corners.

Features and Benefits:
- 3.0 series adjustable coilover shock
- Delta joint upper control arms
- Adjustable coilovers yield 1-3” front-end lift
- Increased wheel travel
- Vehicle-specific valving
- 50% increase in damping over OE shocks
- Superior low-speed control
- Reduced body roll in corners
- Easy-to-adjust compression damping control valve
- 10 compression damping settings
- Multi-stage hydraulic “bump zone”
- Nitrogen-charged 6063-T832 aluminum 10” remote reservoirs
- High-quality ICON-engineered chrome silicon steel springs
- CNC-machined 1” shock shafts
- CAD plated shock body
- Hard anodized piston and top cap
- Increased frame rigidity and fluid flow
- Digressive rebound and flutter stack compression
- Direct bolt-in installation
- Made in the USA

If you like to tinker with your vehicle's settings, you'll love the easy-to-adjust compression damping control valve with 10 compression damping settings and a multi-stage hydraulic "bump zone." The nitro-charged aluminum remote reservoirs, high-quality springs, and CNC-machined shock shafts ensure that this suspension system is built to last. So, if you want to experience a smoother ride and increased frame rigidity, the ICON Vehicle Dynamics Stage 3 Suspension System might just be what you're looking for.

Additional Notes:
- OEM Wheels and Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock-Equipped Vehicle
- Aftermarket Exhaust May Need To Be Slightly Modified For Use With This Kit
- Ships In Multiple Boxes
