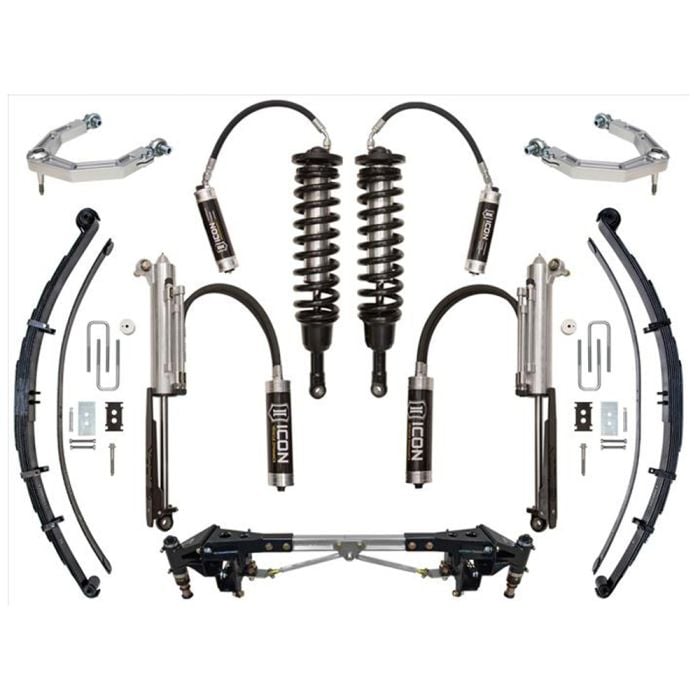

ICON Vehicle Dynamics Stage 4 Suspension System Raptor 2010-2014

The ICON Vehicle Dynamics Stage 4 Suspension System for 2010-2014 Raptors is an impressive upgrade worthy of consideration for serious off-roaders. With its 3.0 series adjustable coilover shocks, fully adjustable billet Delta joint upper control arms, and vehicle-specific valving, this system was specifically engineered for optimal performance. The adjustable coilovers deliver a 1-3” front-end lift and increased wheel travel, while the 50% increase in damping over OE shocks provides superior low-speed control and reduced body roll in corners.

Features and Benefits:
- 3.0 series adjustable coilover shock
- Fully adjustable billet Delta joint upper control arms
- Combines durability of a ball joint with uniball increased performance
- Zinc-plated housing for corrosion resistance
- Grease seal prevents the elements from harming the joint
- Adjustable coilovers yield 1-3” front-end lift
- Increased wheel travel
- Vehicle-specific valving
- 50% increase in damping over OE shocks
- Superior low-speed control
- Reduced body roll in corners
- Easy-to-adjust compression damping control valve
- 10 compression damping settings
- Multi-stage hydraulic “bump zone”
- Nitrogen-charged 6063-T832 aluminum 10” remote reservoirs
- High-quality ICON-engineered chrome silicon steel springs
- CNC-machined 1” shock shafts
- CAD plated shock body
- Hard anodized piston and top cap
- Increased frame rigidity and fluid flow
- Digressive rebound and flutter stack compression
- Direct bolt-in installation
- Made in the USA

The easy-to-adjust compression damping control valve with 10 compression damping settings and a multi-stage hydraulic “bump zone” ensures a customizable ride no matter where you are. Nitrogen-charged 6063-T832 aluminum 10” remote reservoirs, high-quality ICON-engineered chrome silicon steel springs, CNC-machined 1” shock shafts, CAD plated shock body, and hard anodized piston and top cap all come together to provide increased durability and longevity

Additional Notes:
- OEM Wheels and Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock-Equipped Vehicle
- Aftermarket Exhaust May Need To Be Slightly Modified For Use With This Kit
- Ships In Multiple Boxes
