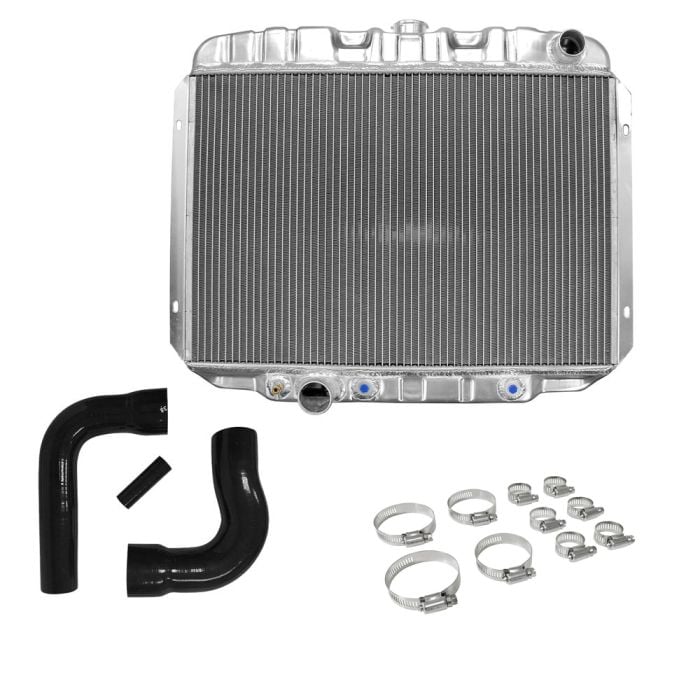

Radiator Kit OE-Style 2-Row Aluminum A/C Mustang 390/428 1967-1970/ 302/351 1970

This ACP Radiator is a drop-in upgrade that offers superior cooling when compared to copper alternatives. This MaxCore radiator fhas been constructed from aluminum using two-rows of 1-1/4” wide tubing that efficiently cool your V8 engine. The top and bottom tanks are styled after the tanks of the original V8 radiator on your classic Mustang and feature an factory-style brass petcock that allows for easier draining of the coolant.

Features and Benefits:
- Direct, Factory-Style Fit
- Billet Filler Neck
- Aluminum Construction
- 2-Rows of 1-1/4” Tubes
- Integrated Transmission cooler for Automatic Transmissions
- Factory-Style Brass Petcock for Easy Draining
- Includes Upper, Lower, and Bypass Silicone Hoses/Clamps
- Hoses are Longer Lasting than Normal Rubber Hoses
- Higher Burst Pressure Resistance than Standard Rubber
- Lower Hose is Nylon Reinforced and Uses Stainless Steel Spring

It even includes an integrated transmission cooler on the MaxCore radiator for Mustangs with an automatic transmission. You also receive performance silicone hoses, which are an upgrade to normal rubber hoses. With no fabrication or additional drilling needed, this radiator will simply mount in the same location as your old radiator for an factory-style fit.

Specifications:
- Overall Dim (W x H x D): 24" x 21 1/2" x 3"
- Core Size (W x H x D): 23 1/2" x 16 x 2 5/8"
- Inlet Diameter: 1-1/2" Top Right
- Outlet Diameter: 1-3/4" Bottom Left
- Mounting Type + Width: Saddle Mount
- Large Tube Size: 1-1/4"
- Total Tubes: 58
- Tube Spacing (Fin Height): 5/8"
- Fins/Inch: 16
- Transmission Cooler: Yes
- Weight (lbs.): 15.5 lbs.

Please Note: This radiator is not for 1970 Mustangs with a 302 or 351 V8 engine without air conditioning.
