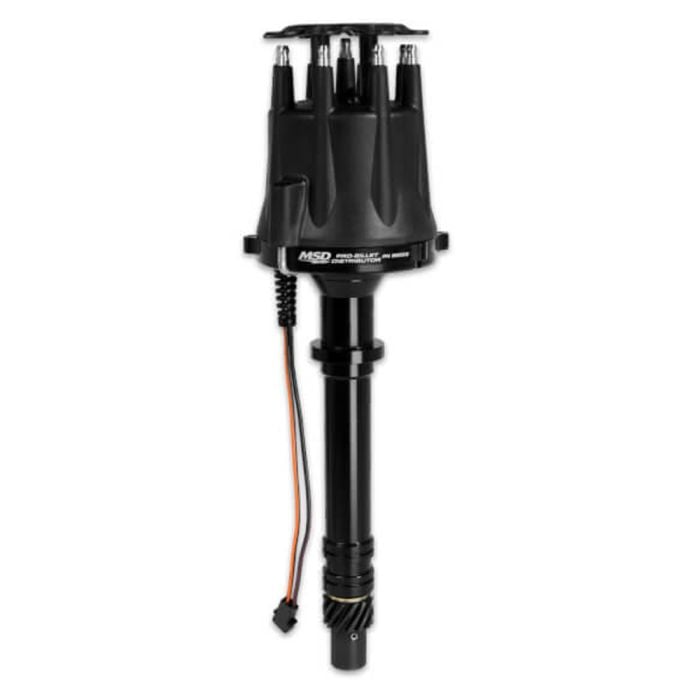

MSD Pro-Billet Distributor Black Chevrolet V8

MSD is a brand known in the industry for ignition products of excellent quality and reliability. This Pro Billet Distributor (85555) is no exception. It is designed to work with Chevrolet small block and big block V8s, and is equipped with many premium features to keep your engine turning!

Features and Benefits:
· CNC machined billet aluminum housing and billet aluminum base
· Adjustable Mechanical Advance
· O-ring seals can be added to modified blocks to improve oil pressure control
· Special oil tract improves lubrication to the distributor and cam gear
· Nylon pads ensure smooth operation of the advance weights
· Advance weight pins are staked and tig welded to the plate
· Mechanical advance assembly can be locked out for crank trigger systems
· Advance plate and weights are designed for friction reduction
· Magnetic pickup and reluctor create stable trigger signals throughout the rpm range
· Easy-to-adjust mechanical advance with supplied springs and stop bushings
· No CARB Exemption Order Number

The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenance free! Different springs and stop bushings are supplied so you can tune an advance curve to match your application.

Please Note: Must be used with an MSD 6, 7 or 8-series ignition.

Vehicle Fitment: 1975-1986 C10
