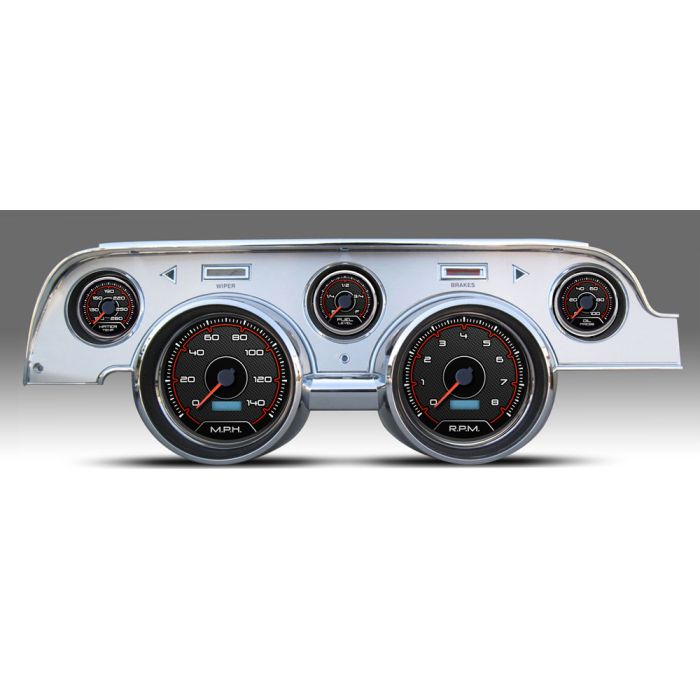

New Vintage USA Instrument Bezel Aluminum Kit With Red CFR Series Gauges/ Electric Speedometer Mustang 1967-1968

Make sure you customize the interior of your 1967-1968 Mustang by installing this complete New Vintage USA Aluminum Instrument Bezel Kit (20727-01) with Red CFR Series Gauges! A programmable electric speedometer is included for even more modern functionality.

Features and Benefits:
- Direct-Fit for 1967-1968 Mustangs
- Creates a High-End, Custom Look for Your Interior
- Complete Kit Includes an Aluminum Instrument Bezel
- Red Series CFR Instruments with LED Backlighting
- Hard-Shock Case and Spin-on Back Clamp with Vibration Dampening O-Ring
- Factory-Matched 73-10 Ohm Fuel Gauge for Use with Existing Fuel Tank
- Proudly Manufactured in the USA

Monitor your vitals in an easy-to-read package that now features the Phoenix Direct Drive OLED screen. The Phoenix platform is a beloved new choice for its user-selectable inputs, stepper motor technology, and reverse-compatible updates so your kit is always current.

Kit Includes:
- Direct-Fit Upgraded Aluminum Instrument Bezel
- 3-3/8” Programmable Electric Speedometer (140 Mph)
- 3-3/8” Tachometer (8,000 RPM)
- 2-1/16” Fuel Gauge
- 2-1/16” Water Temperature Gauge
- 2-1/16” Oil Pressure Gauge
- Voltmeter
- 18" Harness for Minor Gauges
- Temperature Sender 1/8-27 NPT
- Oil Pressure Sender 1/8-27 NPT
- Bushing Kit with 1/4", 3/8", and 1/2" Adapters
- (2) Programming Buttons
- (2) Color Coded AMP Wiring Harnesses
- (6) Back Clamps

Unlike a traditionally wired gauge kit with over 70 connections required for installation, the Phoenix Direct Drive system cuts that down to a mere 22 connections. The Phoenix Direct Drive comes with color-coded AMP harnesses for a user-friendly installation process that's easier than ever.

Please Note: This Gauge Kit does not include a speedometer sending unit (HW3345). The electronic speedometer requires a 16 pulse generator sending unit adapter to convert the transmission mechanical speedometer drive to an electronic signal.
