New Vintage USA M-102 Series Gauge Kit F-100 1973-1979

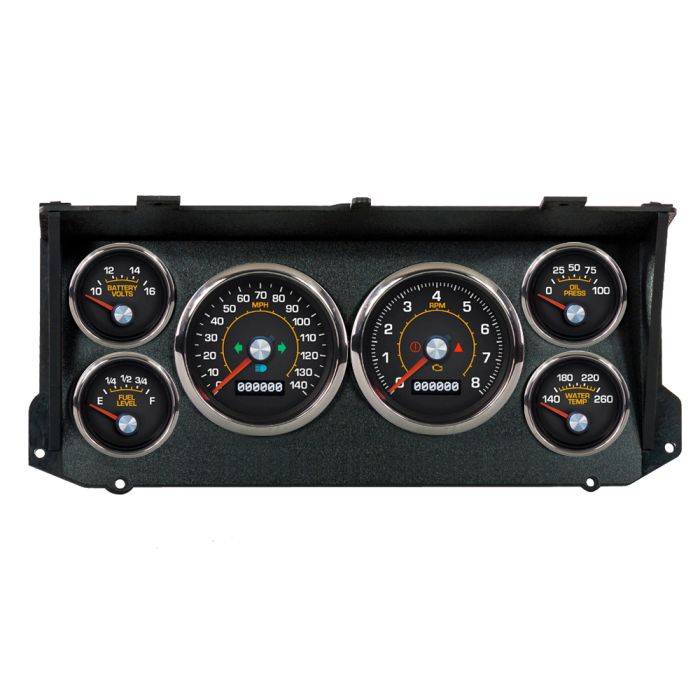

The CNC-laser cut pieces of this New Vintage USA M-102 Series Gauge Kit (79078-78) will revamp the style of your 1973-1979 F-100's dash area! It features a black instrument panel with polished stainless steel gauge bezels, adding a sharp look with easy readability.

Features and Benefits:
- Bold style 6-gauge kit
- Black instrument panel with polished stainless steel bezels
- CNC laser-cut laminate brackets and cover pieces
- Built-in indicators for turn signals, hi-beam, and warning lights
- Made for simple programming and set-up
- Features LED backlight for easy readability
- Made in the USA

This kit includes a speedo, tachometer, fuel level gauge, temperature gauge, oil pressure gauge, and voltmeter. It is designed for easy set-up featuring a simple programming feature. It also has an LED backlighting that keeps all of your readings visible. This also applies to the built-in turn signal, hi-beam, and warning light indicators.

Kit Includes:
- 3-7/16" Speedometer: 140 MPH programmable with (x1) auxiliary input
- 3-7/16" Tachometer: 8,000 RPM with (x2) auxiliary inputs
- 2-1/16" Fuel gauge: programmable (ohm settings: 0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150)
- Temperature gauge: 140-280 F
- Oil pressure gauge: 0-100 PSI
- Voltmeter: 9-17 V
- (x2) AMP connector harnesses
- (x2) Programming buttons
- Bushing kit
- Oil pressure sender (1/8-27 NPT, 240-33 Ω)
- Temperature sender (1/8-27 NPT, NVU hi match)
- Mounting bracket

Please Note:
- Requires removal of factory bezel "uprights" and installation of NVU cover pieces (included).
- 6-gauge kits include a factory-match 73-10-ohm fuel gauge to match standard tank.
- Speed sender may be required — please check your application.
