Painless Performance Truck Harness 25 Circuit Pro Series Key In Dash

Painless Performance:
10416
MSRP $668.57
$584.99
You save 13%

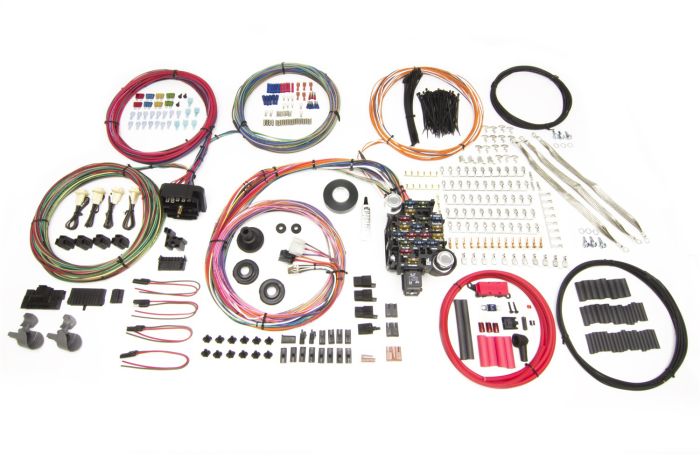

Painless Performance Pro Series 25 Circuit Truck Harness for Key In Dash Trucks.

Properly wire up your classic Ford or Chevy pick-up with this Painless Performance Pro Series 25 Circuit Truck Harness for your Key in Dash Truck. This re-wiring harness is specifically designed with the length required to meet the size requirements of your truck.

Features and Benefits:
- For 1948-1979 F-100
- For 1960-1987 Chevrolet C10s
- For key in dash trucks
- Modernizes wiring

This harness includes over 25 GM factory style connectors found on most ‘60s to early ‘90s GM switches, allowing you to turn your new Pro Series harness into a direct-fit harness for your classic rig. The included 6 gauge charge wire and midi fuse keep your truck modern while providing front and rear ground harnesses providing easy grounding.

GM Pro Series Harness Includes:
- Four (4) H4 Headlight connectors- to support single (high/low) or dual headlights
- Two (2) Turn signal connectors- fits connectors found on factory GM hard wired turn signals
- Four (4) Molded 1/4 sockets for front and rear marker lights
- Two (2) HEI distributor connectors (+ and Tach)
- Two (2) Connectors for factor GM wiper motor
- GM washer pump connector
- Courtesy light sockets
- GM headlight switch connector
- GM dimmer switch connector
- Gm brake switch connector
- GM turn signal switch flat connectors (early & late)
- GM ignition switch connectors
- Neutral Safety Switch connector (column mounted or factory floor shifter mounted)
- Reverse Switch connector (column mounted or factory floor shifter mounted)
- Braided ground straps (for body and core support to frame grounding, also includes
- Six (6) self-tapping 1/4” screws for mounting)
- Alternator bag kit with terminals, splices, resistor, diode to connect the alternator
- One (1) Connector for GM 10si alternator
- Assortment of insulated and non-insulated splices, ring terminals, heat shrink, grommets, cable ties and cable tie clips

Harness Includes Circuits For:
- A/C & Heat
- Accessory (Fan Relay Activation, etc.)
- Backup Lights
- Brake Lights
- Charging
- Cigarette Lighter
- Dome / Courtesy Lights
- Electric Choke
- Electric Fuel Pump
- Emergency Flashers
- Fused Power Source
- Grounds – Front and Rear Lights
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park / Marker Lights
- Power Door Locks
- Power Windows
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights / License Plate Light
- Third Brake Light
- Turn Signals
- Wipers / Washer Pump

Including Wires For:
- Amp Activation
- Fuel Gauge
- Oil Gauge
- Tachometer
- Temperature Gauge
- Voltmeter

Vehicle Fitment:
- 1948-1979 F-100s
- 1960-1987 C10s

If you've ever done a wiring repair or replacement on your Mustang, you know the frustration that those projects can often cause. Wiring harnesses aren't the easiest to work with, and never go in painlessly, unless you order your wiring from Painless Performance. With more than 20 years of wiring experience and a reputation for being painless to install, the parts from Painless Performance are going to be exactly what you need.

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following C10 years:

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,
