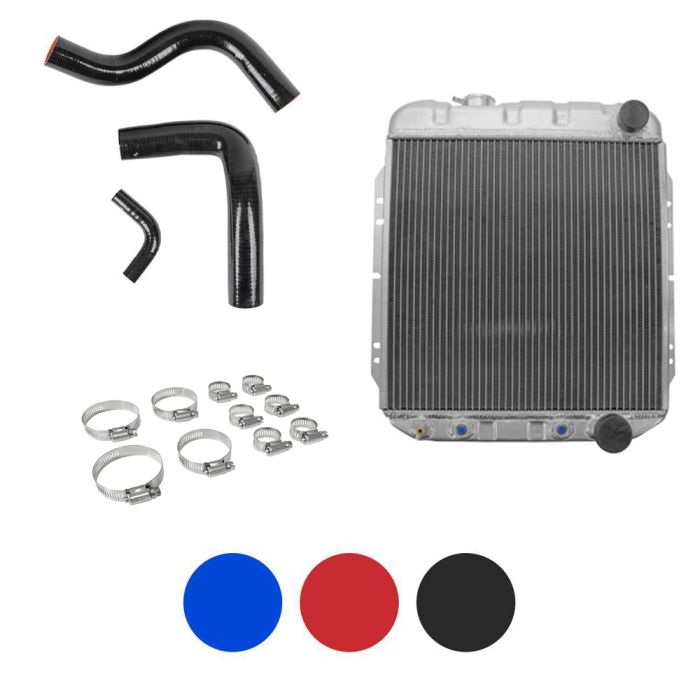

CJ Classics Radiator Kit ACP MaxCore Plus Radiator 2-Row Aluminum OE-Style 259 W/ Hoses Mustang 289 1965-1966

Sport top-notch heat dissipation in your 1965-1966 Mustang via the CJ Classics Radiator Kit with an OE-Style Type 259 ACP MaxCore Plus Aluminum 2-Row Radiator! A direct-fit replacement, this kit brings your ride refined cooling efficacy via the radiator’s two rows of 1-1/4” tubing. The wide design creates a 2-1/2” tube-to-fin contact area, cultivating better chilling over 4-row radiators. Even draining coolant is easy because of the OEM-style brass petcock. With an integrated transmission cooler for automatic transmissions, it’s perfect for any 289 engine.

Features and Benefits:
- Direct-fit replacement
- Aluminum, 2-row radiator w/ OEM-style brass petcock
- 1-1/4” wide radiator tubing helps tube-to-fin contact area
- Integrated transmission cooler for automatic transmissions
- Comes w/ billet filler neck
- Uses factory mounting points for mod-free installation
- Includes silicone upper, lower, & by-pass hoses
- Higher burst pressure resistance
- Nylon-reinforced lower hose w/ stainless steel spring
- 3 colors available for hoses
- Includes 10-piece worm gear hose clamp kit

To complement the radiator, the kit comes with upper, lower, and by-pass hoses with each one engineered from silicone. Thanks to this, they have an incredible burst pressure rating, with the lower hoses reinforced with nylon for extra durability. Users are supplied with a 10-piece worm gear hose clamp kit to secure their new hoses with ease. Plus, they’re available in either red, blue, or black for a distinct, curated under-hood style!

Vehicle Fitment:
- 1965-1966 Mustang
- For models with a 289 engine

Radiator Specifications:
- Overall dimensions (W x H x D): 17-3/8" x 21-1/2" x 3"
- Core size (W x H x D): 17" x 16-1/2" x 2-5/8"
- Inlet diameter: 1-1/2" top right
- Outlet diameter: 1-3/4" bottom right
- Mounting type + width: flange – 18-1/2"
- Large tube size: 1-1/4"
- Total tubes: 41
- Tube spacing (fin height): 5/8"
- 16 fins per inch & 41 tubes per row
