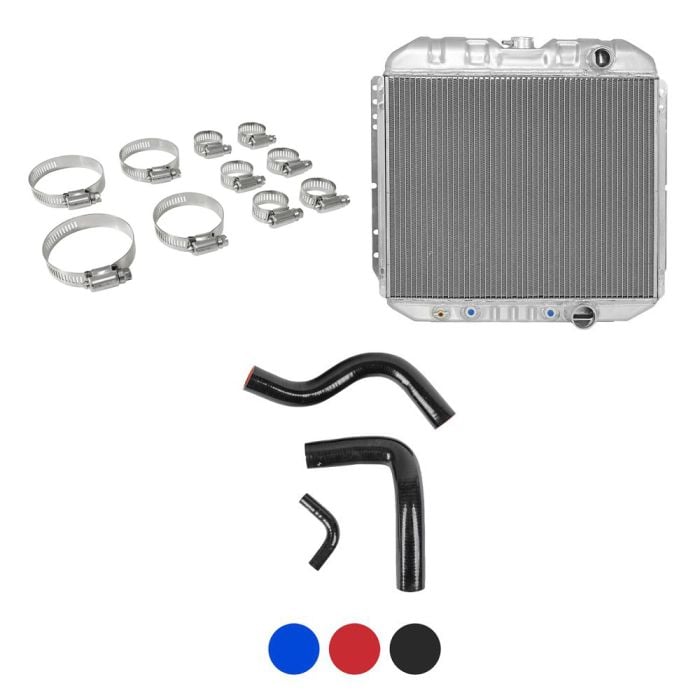

CJ Classics Radiator Kit ACP MaxCore Plus Radiator 2-Row Aluminum OE-Style 340 W/ Hoses Mustang V8 1967/ W/O A/C 1968-1969

Cater to the cooling of your 1967-1969 V8 Mustang with or without an A/C needs via CJ Classics’ Radiator Kit with an ACP MaxCore Plus OE-Style 340 Aluminum 2-Row Radiator! To easily mount the original points, this radiator is engineered as a direct-fit replacement with an OEM-style petcock. This doubles in forming a factory-like look, with the bonus of frosty cooling via the lightweight aluminum construction. With two rows of 1-1/4” tubing, the wide design puts it a step above copper iterations.

Features and Benefits:
- Direct-fit replacement
- Aluminum 2-row radiator w/ OEM-style petcock
- 1-1/4” wide radiator tubing helps tube-to-fin contact area
- Integrated transmission cooler for automatic transmissions
- Uses factory mounting points
- Includes upper, lower, & by-pass hoses
- Silicone material grants higher burst pressure resistance
- Nylon-reinforced lower hose w/ stainless steel spring
- Hoses available in blue, red, & black
- Includes 10-piece worm gear hose clamp kit

Made from a silicone material with an intense burst pressure resistance, the kit is complete with upper, lower, and by-pass hoses. Particularly sturdy, the lower hose is reinforced with nylon and comes with a stainless steel spring to boost its longevity. Plus, for a splash of color under the hood, the hoses are available in either red, blue, or black!

Radiator Specifications:
- Overall dimensions (W x H x D): 20-1/2" x 21-3/8" x 3"
- Core size (W x H x D): 20" x 16-1/2" x 2-5/8"
- Inlet diameter: 1-1/2" top right
- Outlet diameter: 1-3/4" bottom right
- Mounting type + width: flange – 21-1/2"
- Large tube size: 1-1/4"
- Total tubes: 49
- Tube spacing (fin height): 5/8"
- Fins/inch: 16
- Weight (lbs.): 13-1/2 lbs

Vehicle Fitment:
- All 1967 V8 Mustangs
- 1968-1969 V8 Mustangs without air conditioning
