How to Install LED Headlights on a 2021+ Bronco

How to Install LED Headlights on a 2021+ Bronco

Last Updated February 15, 2024 | Cory Jones

Installing new 2021+ Ford Bronco LED headlights can greatly improve visibility and appearance. LED headlights are brighter, more energy efficient, and longer lasting than the stock bulbs, making them a great investment for your vehicle.

In this guide, we'll walk you through the steps for installing new LED headlights on your 2021 Ford Bronco. We'll also show you how to wire a custom color setting for the new LED system.

2021+ Ford Bronco LED Headlight Install Instructions

For this installation, we chose AlphaRex's projector LED headlight replacements. These headlights are super bright, and offer a modern look with halo daytime running lights and several color customization options.

  • Clip Removal Tool
  • 10 mm Socket
  • Ratchet
  • 8 mm Wrench

Newsletter Sign-Up

Step 1: Remove Front Trim Panel

Open up your Bronco's hood and use a clip removal tool to unclip the front trim panel.

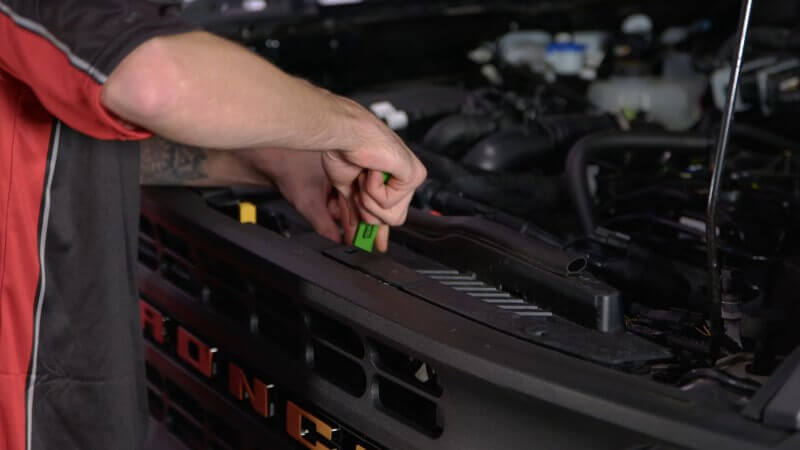

Mechanic removing the front trim panel on a 2021 Ford Bronco

Step 2: Remove Grille

Once the trim is removed, you'll be able to access the bolts underneath that hold the grille in place. Unscrew the bolts, then remove the grille.

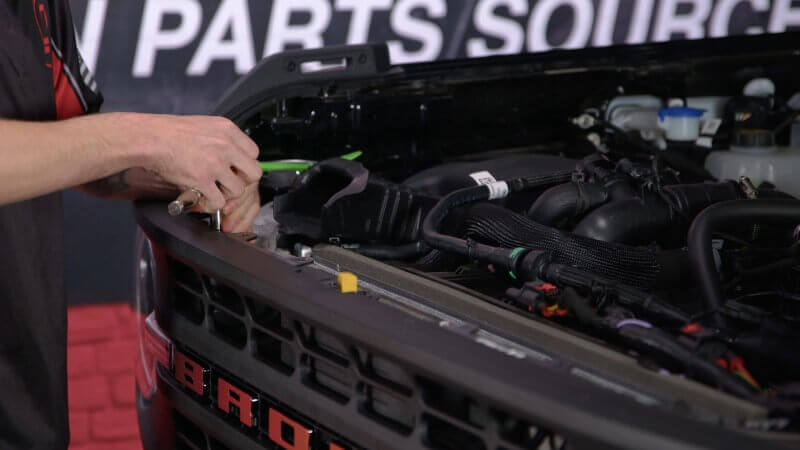

Mechanic removing the grille on a 2021 Ford Bronco

Step 3: Remove Fender Flares and Lower Valance

To access the bolts for the factory light, you'll need to remove the fender flares and lower valance.

Turn the hinges on the fender flare to the unlocked position. Remove the flare by hand.

Next, unclip the lower valance underneath the light. Repeat this process on the other side.

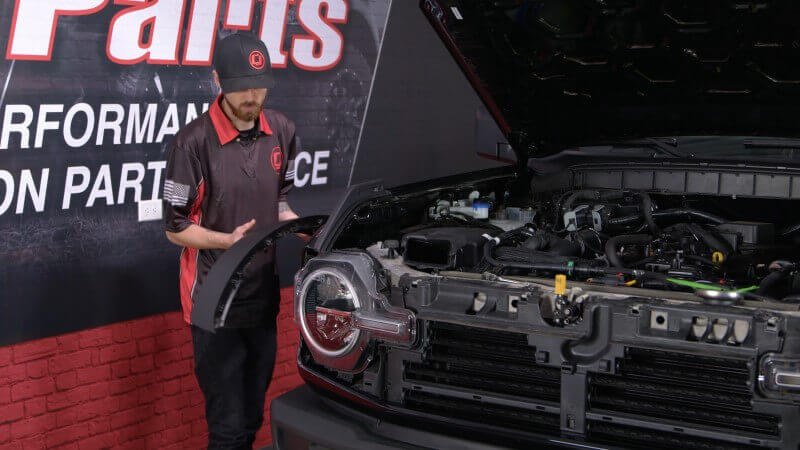

Mechanic removing the fender flares on a 2021 Ford Bronco

Step 4: Remove Factory Headlight

Using an 8 mm socket, unscrew the bolts holding the headlight in place. Remove the headlight from the housing. Repeat this process on the other side.

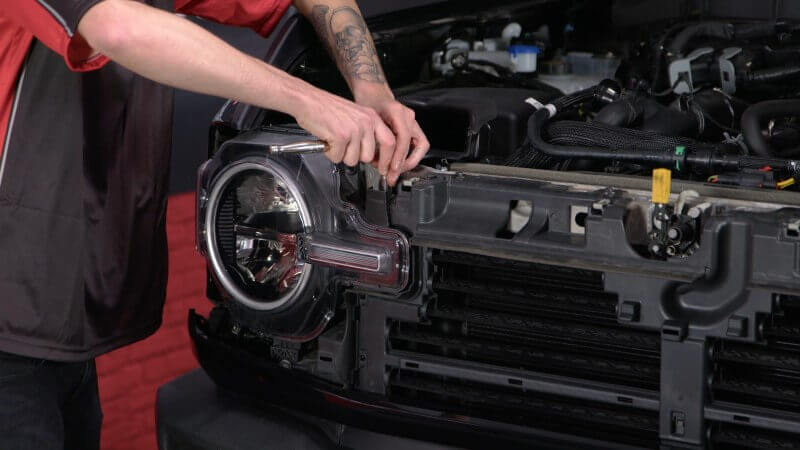

Mechanic removing the stock headlights on a 2021 Ford Bronco

Pro Tip:When you're pulling out the factory light, you may feel some resistance. This is because of a plug meant to hold the light in position. Just give it a solid pull to remove it from your Bronco.

Step 5: Adjust Lighting Settings

Use a Phillips-head screwdriver to remove the four screws on the outside of the LED wiring housing. On the inside of the wire box there'll be two wire plugs. Deciding which of these wires to plug in will determine the light setting you'll have.

For an all-white headlight with a white bar, leave both plugs unconnected.

For a white circle with an amber bar, connect the top two red wires. Leave everything else unplugged.

For an all-amber look, plug in both side connectors.

For an amber circle with a white bar, only connect the plug on the right.

Once you have your chosen setting, reassemble the wiring box. Repeat this process for the other side.

Mechanic wiring the light settings on a 2021 Ford Bronco LED headlight

Step 6: Install New LED Headlight

Plug in the new LED housing to the factory wiring harness. Reattach the bolts for the light. Repeat this process for the other side.

Once both new lights are connected, reinstall the fender flares and lower valance. Unlock the fender flare hinges, reinsert it, and relock the hinges. Snap the lower valence back into place. Reinstall these parts on the other side.

Reinstall the grille with the factory bolts, then reinsert the front trim panel.

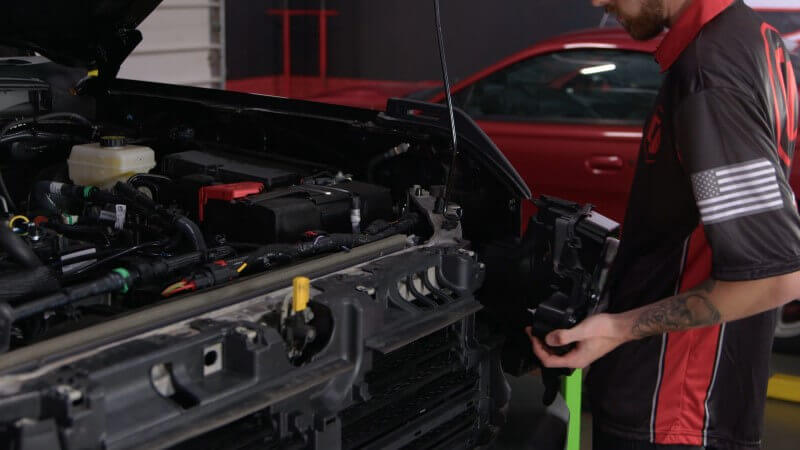

Mechanic installing new LED headlight on a 2021 Ford Bronco

Congratulations, you're all done!

Upgrade the Rest of the Lights on Your 2021 Bronco

Your new LED headlights will give your 2021 Bronco better visibility and a cool, unique style. With the settings available, you'll be able to use the system for your daytime running lights, and turn signals as well.

Upgrading your headlights is a great entry point to improving the rest of the lighting in your modern Bronco. Be sure to check out our selection of Bronco LEDs for more ideas.
