How to Install New Taillights on a 2021+ Ford Bronco

How to Install New Taillights on a 2021+ Ford Bronco

Last Updated July 6, 2026 | Nate Moonis

Replacing the factory taillights on your 2021-2026 Ford Bronco is an easy way to give your ride a more aggressive, custom appearance. Plug-and-play LED taillights offer improved visibility, dynamic sequential turn signals, and a flush mount design that complements the Bronco's factory body lines.

Check out the video below for a more in-depth installation breakdown.

How to Install New Taillights on A 2021-2026 Ford Bronco

This step-by-step installation guide will walk you through the removal of the stock taillights and the installation of the new ones. In the video above, we installed a set of Attica 4X4 Rogue Series Flush-Mount Taillights to transform the look of our Bronco.

Modern Bronco Deals

Tools and Supplies Needed:

  • Phillips head screwdriver
  • Trim removal tool
  • 10mm socket
  • 8mm socket
  • Ratchet

2021-2026 Bronco Taillight Installation

Step 1: Remove The Interior Panel Clips

Use a Phillips head screwdriver to loosen the interior panel clips behind the taillight.

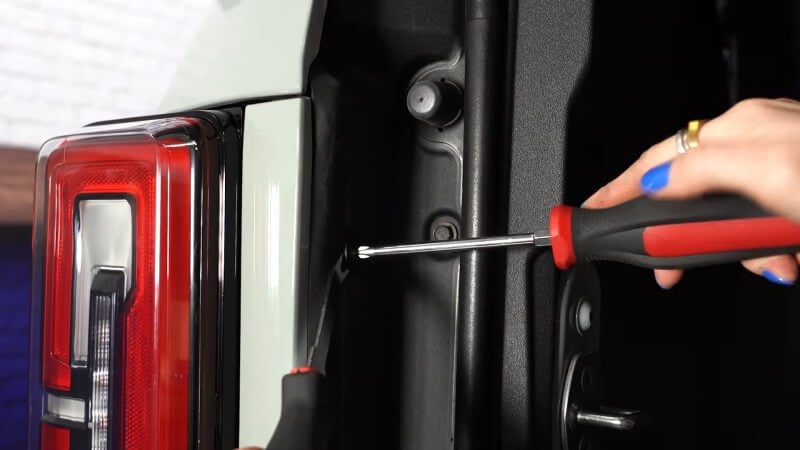

A close up of a mechanic using a screwdriver to loosen an interior panel clip on a white Ford Bronco

Step 2: Remove The Remaining Panel Clips

Use a trim removal tool to remove any panel clips that do not come out with the screwdriver.

Step 3: Remove The Trim Panel Bolts

Use a 10mm socket to remove the bolts securing the interior trim panel.

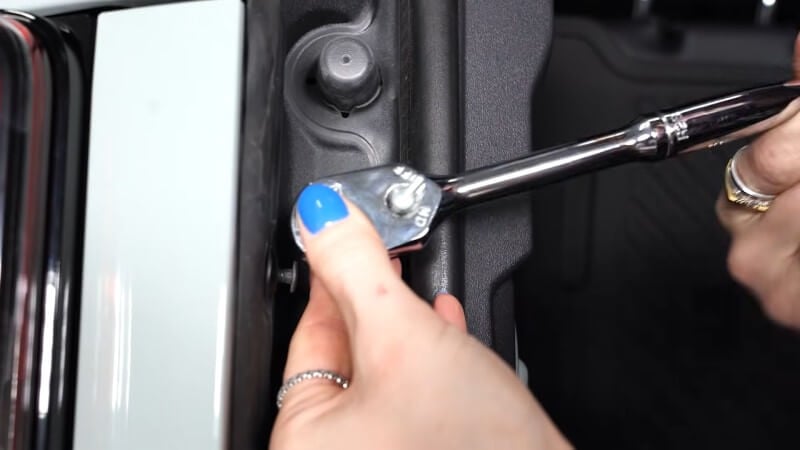

A close up of a mechanic using a ratchet to loosen a trim panel bolt on a white Ford Bronco

Step 4: Remove The Interior Trim Panel

Pull the trim panel straight away from the vehicle.

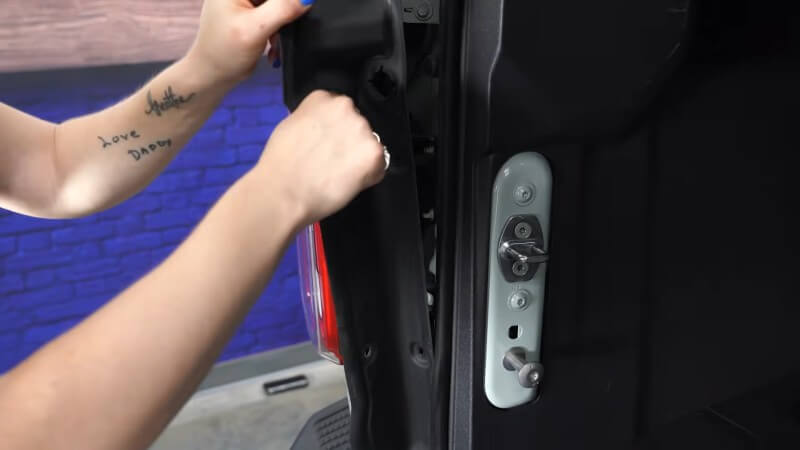

A close up of a mechanic pulling off the interior trim panel of a white Ford Bronco

Step 5: Remove The Quarter Panel Corner

Pull the corner of the quarter panel outward and slightly upward to release it.

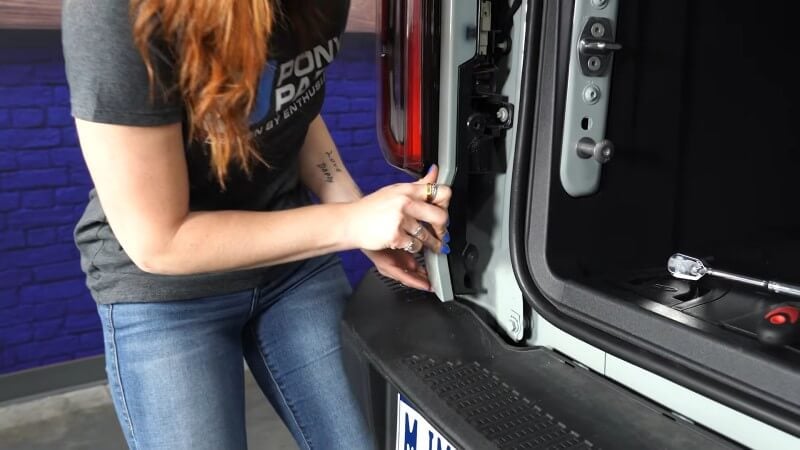

A close up of a mechanic pulling off the quarter panel corner of a white Ford Bronco

Step 6: Remove The Fender Flare

Flip the retaining tabs to the unlocked position and pull the fender flare straight away from the Bronco.

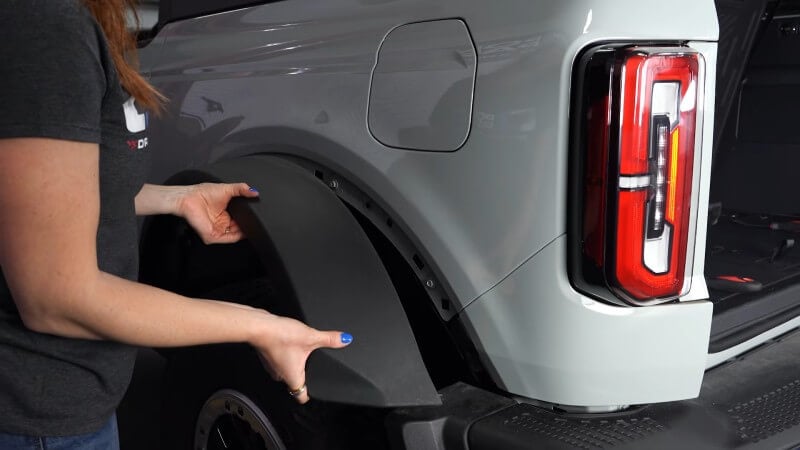

A close up of a mechanic pulling the fender flare of a white Ford Bronco off

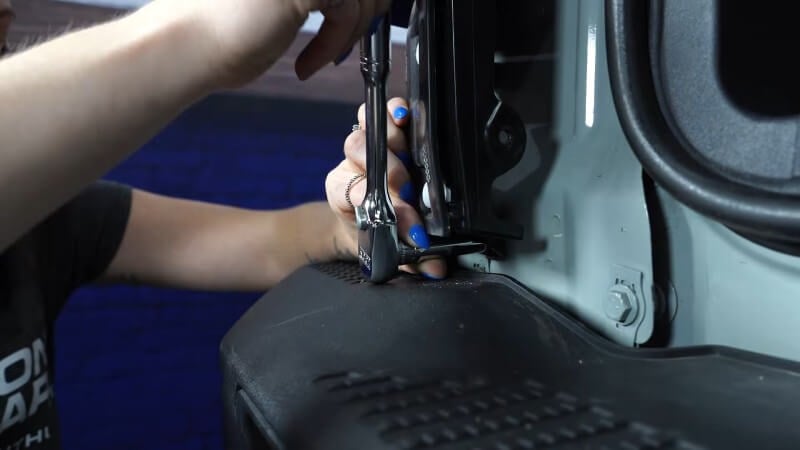

Step 7: Remove The Lower Taillight Bolt

Use a 10mm socket to remove the lower taillight mounting bolt.

A close up of a mechanic using a ratchet to remove the lower taillights bolt of a white Ford Bronco

Step 8: Remove The Side Taillight Bolts

Use a 10mm socket to remove the side mounting bolts.

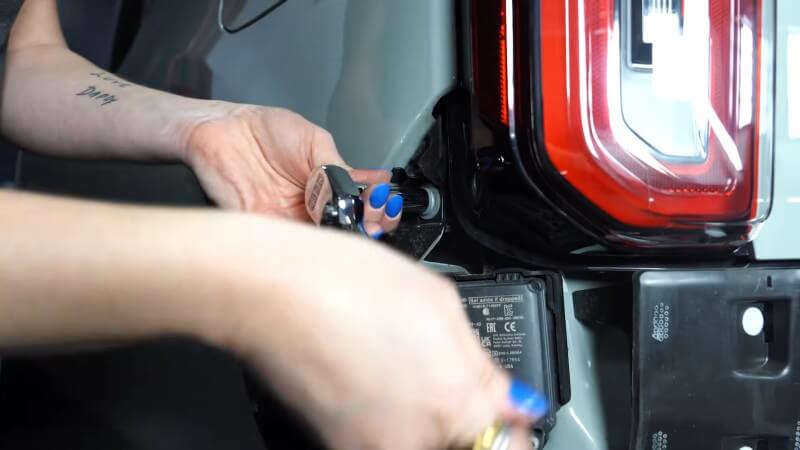

A close up of a mechanic using a ratchet to remove the side taillights bolt of a white Ford Bronco

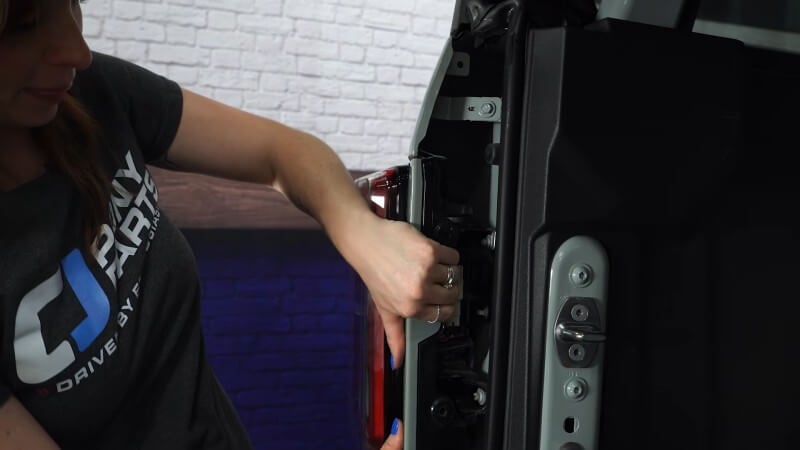

Step 9: Remove The Paint-Matched Trim

Pull the paint-matched trim piece straight away from the vehicle.

A close up of a mechanic pulling off the paint-matched trim of a white Ford Bronco

Step 10: Remove The Taillight Mounting Bolts

Use an 8mm socket to remove the bolts securing the taillight.

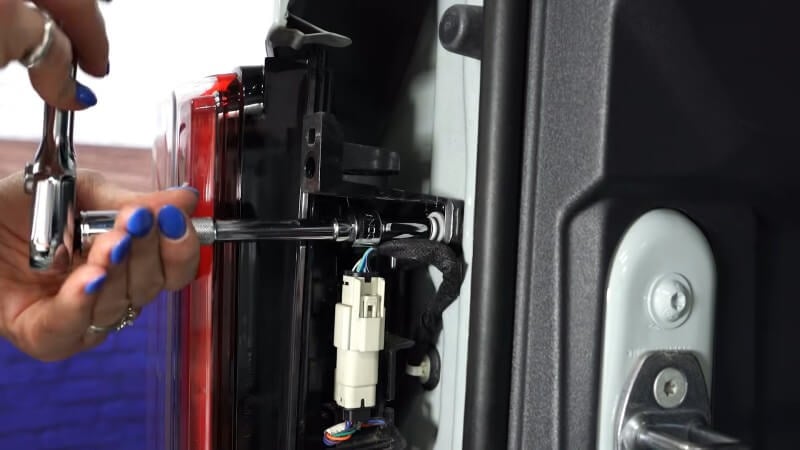

A close up of a mechanic using a ratchet to remove the taillight mounting bolts of a white Ford Bronco

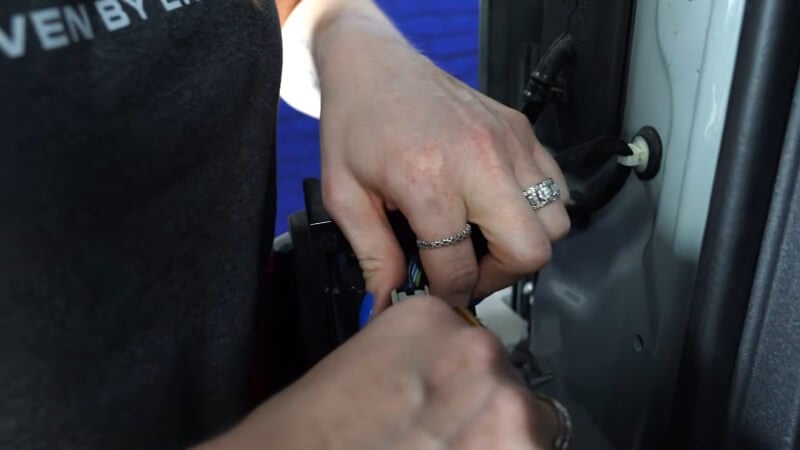

Step 11: Disconnect The Wiring Harness

Unplug the factory wiring harness from the taillight.

A close up of a mechanic using their hands to disconnect the taillight wiring harness of a white Ford Bronco

Pro Tip: Disconnect the wiring harness before removing the taillight from the Bronco. This provides a little more room to work.

Step 12: Remove The Factory Taillight

Pull the taillight straight out of the vehicle.

Step 13: Connect The New Taillight

Plug the factory wiring harness into the new taillight.

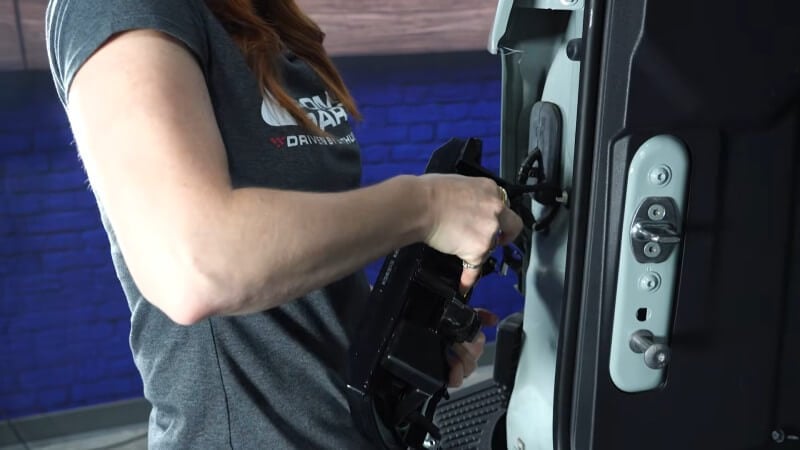

A close up of a mechanic plugging in the wiring harness of the new taillight into a white Ford Bronco

Step 14: Position The New Taillight

Place the new taillight into the body opening.

Step 15: Install The Taillight Mounting Bolts

Use an 8mm socket to reinstall the taillight mounting bolts.

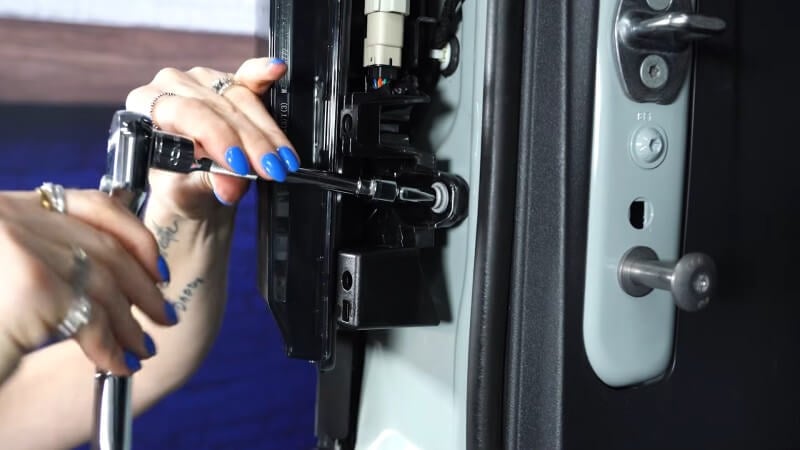

A close up of a mechanic using a ratchet to reinstall the taillight mounting bolts of a white Ford Bronco

Step 16: Reinstall The Paint-Matched Trim

Press the paint-matched trim piece back into place.

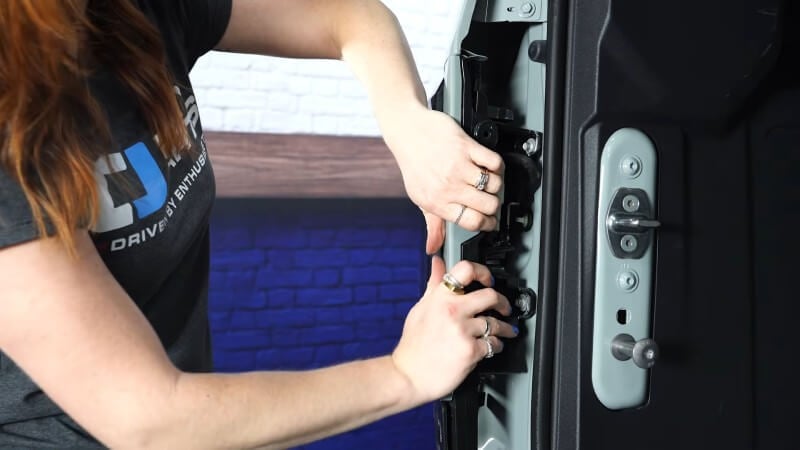

A close up of a mechanic pressing the paint-match trim surrounding the taillight back into place with their hands

Step 17: Reinstall The Taillight Bolts

Use a 10mm socket to reinstall the side and lower mounting bolts.

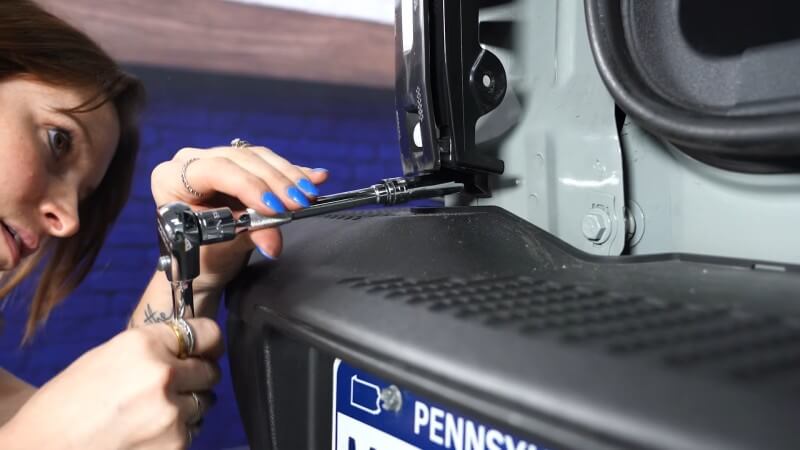

A close up of a mechanic using a ratchet to reinstall the taillight bolts

Step 18: Reinstall The Quarter Panel Corner

Press the quarter panel corner back into place.

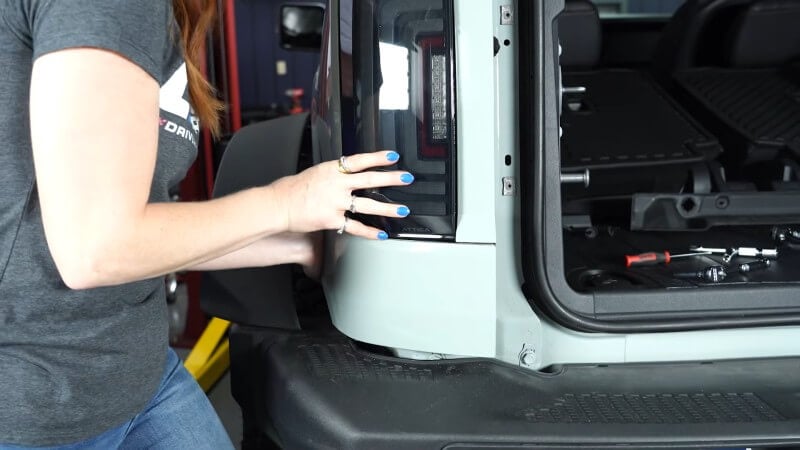

A close up of a mechanic pressing the quarter panel corner back into place with their hands

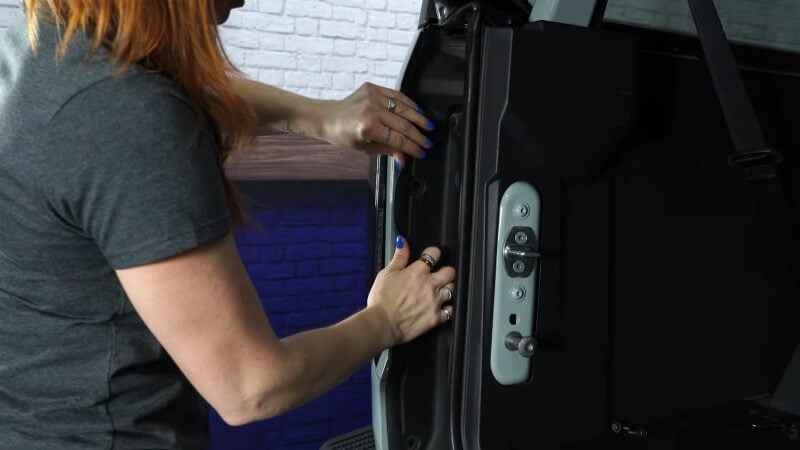

Step 19: Reinstall The Interior Trim Panel

Align the trim panel and press it into position.

A close up of a mechanic pressing the interior trim panel back into place with their hands

Step 20: Reinstall The Trim Panel Bolts

Use a 10mm socket to reinstall the trim panel bolts.

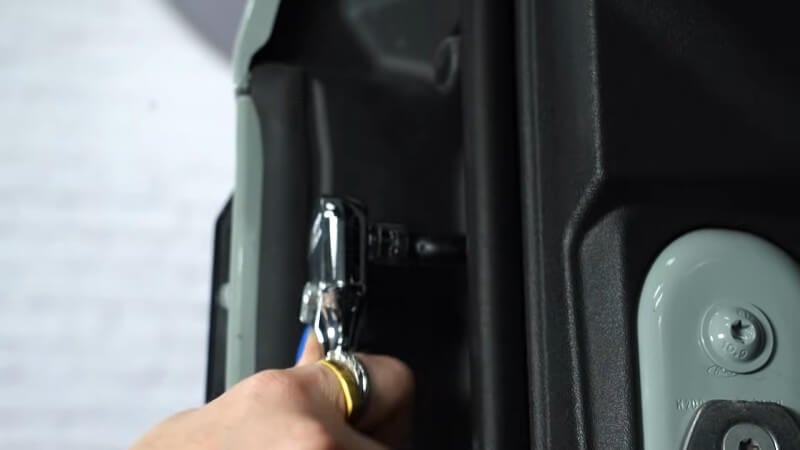

A close up of a mechanic using a ratchet to reinstall the trim panel bolts

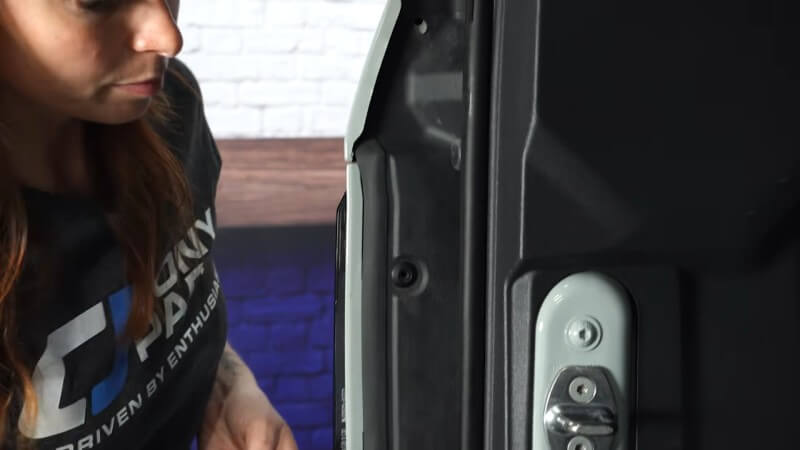

Step 21: Install The Retainer Clip Bases

Insert the bases of the retainer clips into the trim panel.

A close up of a mechanic pushing the retainer clip bases into place

Pro Tip: Remove the center screw from each retainer clip before installing the base. Once the base is seated, reinstall the screw to lock the clip in place.

Step 22: Secure The Retainer Clips

Tighten the center screws to secure the retainer clips.

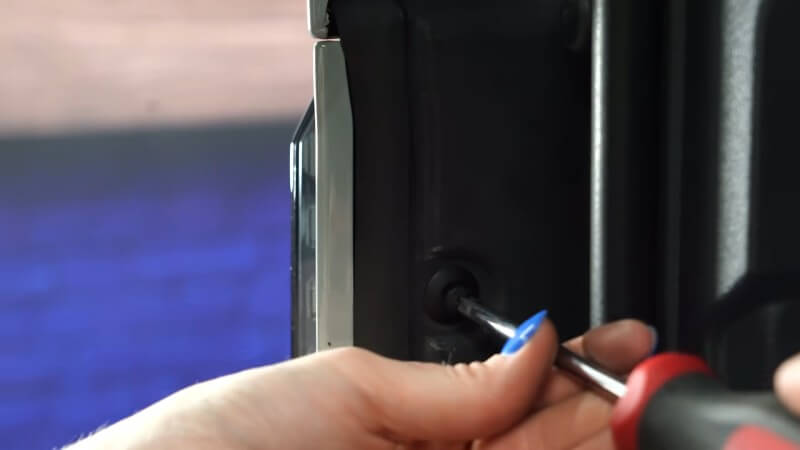

A close up of a mechanic using a screwdriver to tighten the retainer clip screws into place

Step 23: Reinstall The Fender Flare

Press the fender flare back into place and rotate the retaining tabs back to the locked position.

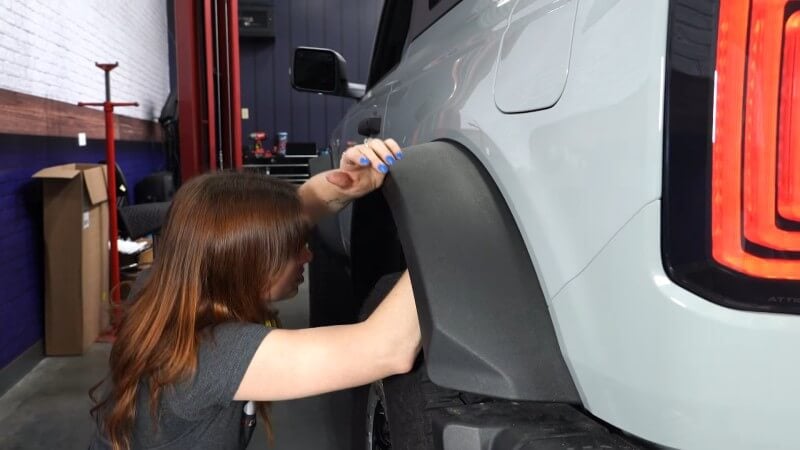

A close up of a mechanic pushing the fender flare into place and locking it down

Step 24: Repeat On The Opposite Side

Repeat the installation steps on the passenger-side taillight.

Pro Tip: Be careful when removing trim panels around the swing-out tailgate to avoid damaging the wiring routed through this area.

Transform the Look of Your 2021-2026 Ford Bronco with New Taillights

Installing plug-and-play LED taillights is a straightforward upgrade that gives your 2021-2026 Bronco a fresh, custom appearance while improving visibility. With no cutting or permanent modifications required, this installation can be completed with basic hand tools and provides an OEM-quality fit and finish.

Want to swap out your Bronco's taillights but not sure what to go with? Check out our large selection of Bronco taillights to find one that's perfect for your ride.
