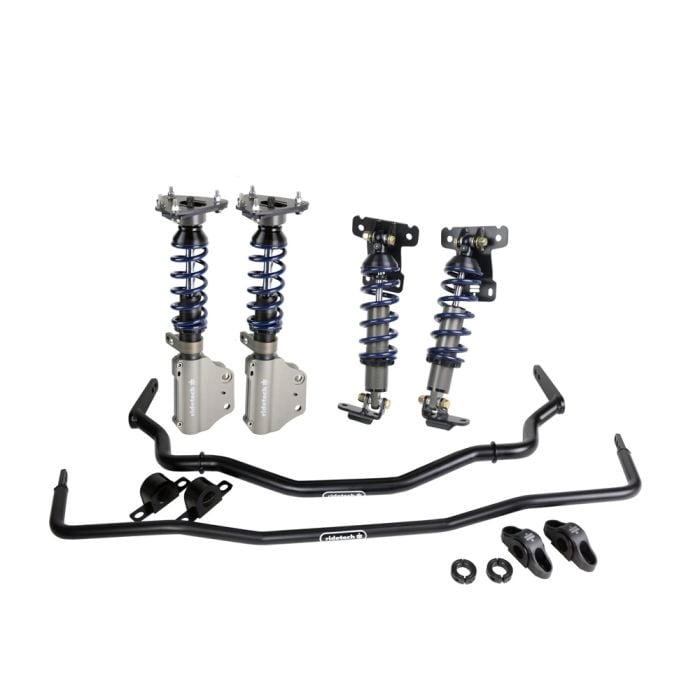

Ridetech HQ Series Coil-Over System With Sway Bars Mustang 2015-2024

Overhaul the suspension of your 2015-2024 Mustang with the powerful yet stylish Ridetech HQ Series Coil-Over System (12270202) with Sway Bars. This premium system utilizes an impact-forged aluminum shock body that boasts an excellent strength-to-weight ratio and features Fox Factory shock internals and valving paired with a monotube design to ensure exceptional ride quality and handling. The system offers a 1.5”-2.5” drop from stock, improving the vehicle's center of gravity and reducing the wheel-to-tire gap.

Features and Benefits:
- Fox Factory shock internals and valving along with monotube design
- Provides excellent ride quality and handling
- Anodized gunmetal black and gray finish provides great looks
- Impact-forged aluminum shock body provides an excellent strength-to-weight ratio
- 1.5”-2.5″ drop from stock to improve vehicle center of gravity and reduce wheel-to-tire gap
- 24-position rebound allows ride quality and suspension responsiveness adjustability
- Improved camber and caster range for performance-driving
- Custom spring rates allow fine-tuning for many driving applications
- Rubber-isolated spherical bearing minimizes NVH noises
- Application-specific mounting for a seamless installation
- Included Hyperco springs provide consistent spring rates at all four corners
- No irreversible modifications are necessary
- 2-position adjustability front sway bars allow bar stiffness refinement
- 3-position adjustability rear sway bars adapt bar rate to your car’s individual setup
- Both bars reuse OE end-links
- Bolt-on installation
- Made in the USA

With 24-position rebound adjustability, the system allows for precise tuning of ride quality and suspension responsiveness. Elevating the efficiency of the system even further, the included front and rear sway bars provide additional setup refinement. Regardless of your motorsport discipline, your Mustang will be tailored to best suit your needs.  Both bars reuse OE end-links, ensuring a straightforward bolt-on installation. Proudly made in the USA, the Ridetech HQ Series Coil-Over System with Sway Bars represents the pinnacle of performance and precision for your Mustang.

Specifications:
- Caster range: +7.5 to +8.5 degrees
- Camber range: -2.5 to +.25 degrees
- Camber range extreme (slugs flipped): -1.0 to -4.25 degrees
- Front bar dimensions: 35mm/1.375” bar thickness x .250” tubing wall thickness
- Front sway bar rates: 500 ft-lbs. (first setting) and 616 ft-lbs. (second setting)
- Rear bar dimensions: 25.4mm/1” bar thickness x .125” tubing wall thickness
- Rear sway bar rates: 165 ft-lbs. (first), 210 ft-lbs. (second), and 264 ft-lbs. (third)

Vehicle Fitment:
- 2015-2024 S550/S650 Mustangs
- Compatible with 4-, 6-, and 8-cylinder models

Please Note: Vehicles equipped with factory electronic shock systems require an “Electronic Shock Simulator” kit. Negative camber settings of more than -1 degree will require Ridetech front sway bar.
