Wilwood Aero4-MC4 Rear Disc Brake Kit Red With 14” Slotted Rotors Mustang V6 2015-2017/ EcoBoost/ GT 2015-2023

The Wilwood (140-13888-R) Red Aero4-MC4 Rear Disc Brake Kit with 14” Slotted Rotors is designed to be a performance upgrade for V6, EcoBoost, and GT Mustangs. This Wilwood Rear Disc Brake Kit will replace your factory Rear Disc Brakes and uses 4-Piston Rear Capliers and a separate MC4 Parking Brake Assembly.

Features and Benefits:
- Provides Better Braking Capability for your Rear End
- 4-Piston Rear Calipers (Red Powder Coat Finish)
- Single Piston Parking Brake Calipers
- 14” Slotted Rotors
- Aluminum Rotor Hat
- Made in the USA!
- Bolt-On installation

The Rear Disc Brake Kit includes a Pair of 4-Piston Calipers that feature Stainless Steel Pistons and are finished in a durable red powder coat. The Rotors in this kit are slotted and have a vane count of 36 per rotor, this will reduce the heat produced when heavy braking is needed.

The Rear Rotors are a two-piece design that features an Aluminum Rotor hat that is finished in a Black E-Coat. Wilwood includes a Set of BP-20 Brake Pads that have a compound SmartPads provide high response and holding power when cold, and resistance to fade when hot. The Rear Wilwood Disc Brake Kit is a complete bolt-on installation, no modification is required. This Wilwood (140-13888-R) Red Aero4-MC4 Rear Disc Brake Kit with 14” Slotted Rotors is proudly made in the USA!

Specifications:
- Rear End Axle: OEM
- Axle Offset: 0.00
- Mount Type: Radial
- Caliper Type: 4-Piston Calipers (Red Powder Coat)
- Rotor Diameter: 14.00
- Min Wheel Diameter Required: 18”

Please Note: Wilwood recommends using an 18" or larger wheel with this 14" rear brake kit to ensure proper clearance.

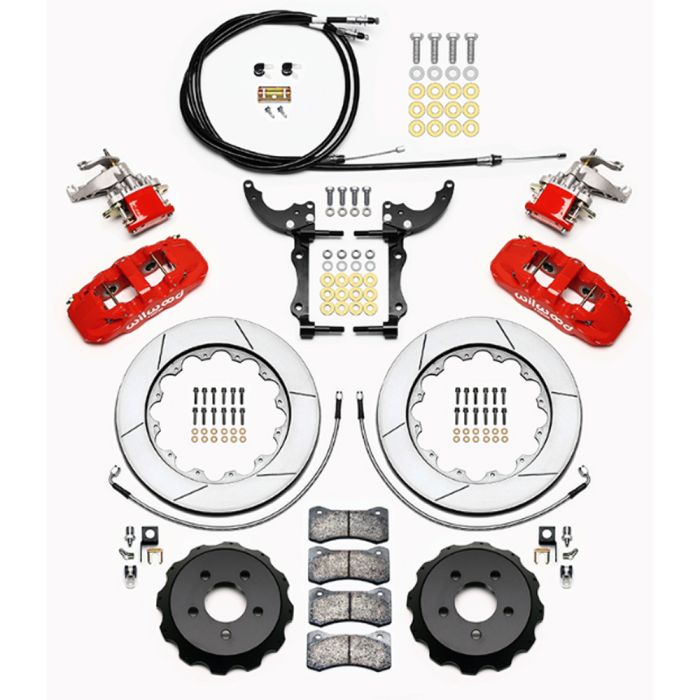

Kit Includes:
- Pair of Caliper Mounting Brackets
- All Necessary Mounting Hardware
- Pair of Slotted 14” Rotors (2-Piece)
- Pair of 4-Piston Calipers
- Pair of Parking Brake Calipers
- Set of BP-20 Compound Brake Pads
- Parking Brake Cable Kit

*This Wilwood Brake Kit does NOT include the Stainless Steel Braided Flexline Hose Kit (BHS64).
