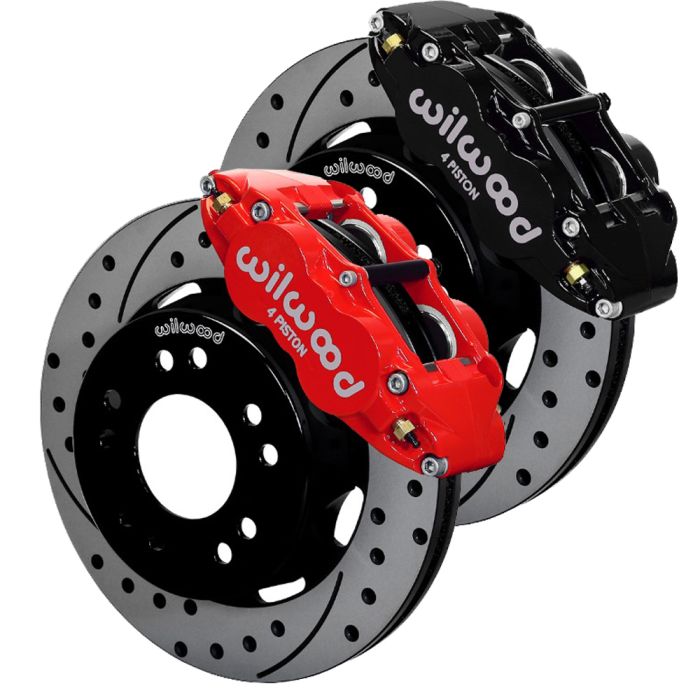

Wilwood Front Big Brake Kit Forged Narrow Superlite 4R With 12.19” Drilled/Slotted Rotors GM Truck/Chevrolet C10 1963-1987

CJ's Part Number:
DBF203-V
From
$1,089.99

Wilwood Forged Narrow Superlite 4R Front Big Brake Kit with 12.19” Drilled and Slotted Rotors for 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 and 1987 GM Trucks and Chevrolet C10s.

Restore your faith in the stopping power and braking reliability in your classic 1963-1987 GM Truck or Chevrolet C10 pick-up with this Wilwood 140-15302 Forged Narrow Superlite 4R Front Big Brake Kit with 12.19” Drilled and Slotted Rotors. Along with enhancing your brake performance, this kit opens some style options as the included calipers come in your choice of black or red powder coated finish.

Features and Benefits:
- Wilwood narrow forged superlite 4R big brake front brake kit
- SRP Drilled and slotted 12.19” iron rotors 1.1” thick
- Red or black powder coated superlite 4 piston calipers
- Stainless steel pistons
- Black E-coated aluminum rotor hats

With the Forged Narrow Superlite 4R four-piston caliper serving as the base of this 12.19” big rotor kit, this kit will work perfectly with the new modular drop pro spindles. For simplified installation and full compatibility with OE master cylinder output and ABS functions (where applicable), this kit is application specific. The wheel, tire and suspension upgrades that come from this brake kit provide increased brake capacity and complimentary style. The drilled and slotted rotors are constructed of iron and measure in with a thickness of 1.1” as a complement to the stainless steel pistons. Additionally, the aluminum rotor hats are finished with a black E-coating for enhanced durability. Constructed using a BP-10 brake pad compound, the included calipers feature a radial mounting style.

Calipers:
- Superlite 4R Forged Narrow
- Black or Red Powder Coated
- Four (4) Stainless Pistons
- 4.80 Square Inches of Piston Area
- Radial Mounting Style
- Brake Pad Area 8.2 Square Inches
- Brake Pad Compound BP-10

Rotors:
- 12.19” Diameter
- SRP Drilled and Slotted Iron Ultralite Rotors
- 1.1” Thick
- Dynamically Balanced

Rotor Hats:
- Light-Weight Aluminum Construction
- Black E-Coat Finish
- 1.53” Hat Offset
- Dual Drilled Lug Pattern
- 5x4.75
- 5x5

Please Note: This brake kit recommends the use of a 16” wheel or larger for clearance. Additionally, this Wilwood big brake kit has been specifically designed for use with Wilwoods Prospindles only.

Wilwood has developed a substantial matrix of brake components and engineering techniques that allow them to quickly and reliably create brake systems for almost any application. Their core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components, in addition to designing and manufacturing brakes for all types of competitive motor sports.

Order this Wilwood 140-15302 Forged Narrow Superlite 4R Front Big Brake Kit with 12.19” Drilled and Slotted Rotors for your 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 or 1987 GM Truck or your Chevrolet C10 today from CJ Pony Parts.

California Residents: Proposition 65 Warning

Installation Difficulty

Moderate
Moderate

Intermediate skill is required for this installation.

Vehicle Fitment

This product will fit the following C10 years:
