Wilwood Front Big Brake Kit Forged Narrow Superlite 4R With 12.19” Rotors GM Truck/Chevrolet C10 1963-1987

CJ's Part Number:
DBF201-V
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 135.9ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
From
$899.95

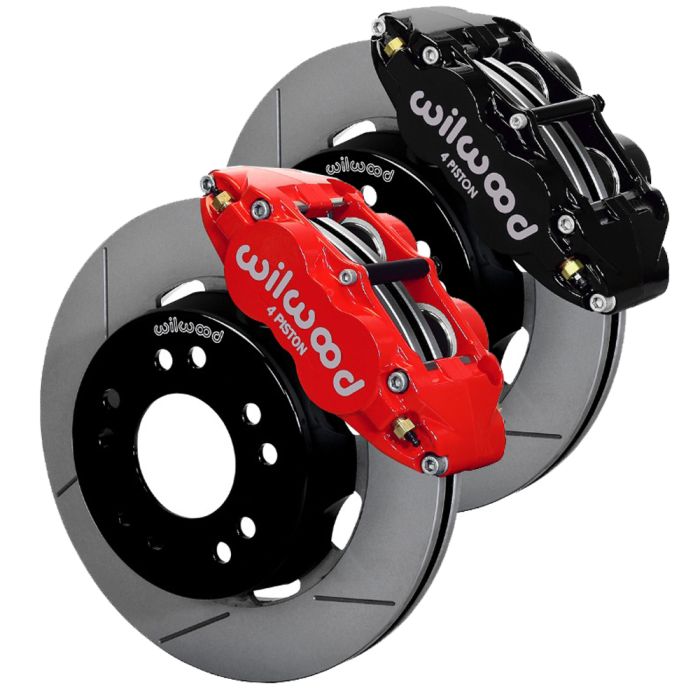

Wilwood Forged Narrow Superlite 4R Front Big Brake Kit with 12.19” Rotors for 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 and 1987 GM Trucks and Chevrolet C10s.

Vastly improve your stopping power while reinforcing the brake reliability in your 1963-1987 GM Truck or Chevrolet C10 pick-up by applying this Wilwood 140-15302 Forged Narrow Superlite 4R Front Big Brake Kit with 12.19” Rotors to your classic vehicle. With an eye on style as well as performance, this brake kit comes with your choice of black or red powder coated brake calipers.

Features and Benefits:
- Wilwood narrow forged superlite 4R big brake front brake kit
- GT slotted 12.19” iron rotors 1.1” thick
- Red or Black powder coated superlite 4 piston calipers
- Stainless steel pistons
- Black E-coated aluminum rotor hats

Along with wheel, tire and suspension upgrades, this brake kit provides increased brake capacity and complimentary style. The optional caliper finishes and Ultralite HPS 32 rotor design simplifies the personalization, style and braking requirements when utilized in any application. Additionally, the rotors are dynamically balanced for enhanced performance. The included GT slotted 12.19” iron rotors are 1.1” thick to work in conjunction with the stainless steel piston. The aluminum rotor hats are topped off with a sleek black E-coating. Featuring a radial mounting style, the included calipers are constructed using brake pad compound BP-10. Lightweight aluminum construction is utilized on the black E-coated rotor hats to ensure they stand the test of time. All in all, this kit covers all of your brake system upgrade needs in one convenient to purchase package.

Calipers:
- Superlite 4R Forged Narrow
- Black or Red Powder Coated Finish
- Four (4) Stainless Pistons
- 4.80 Square Inches of Piston Area
- Radial Mounting Style
- Brake Pad Area 8.2 Square Inches
- Brake Pad Compound BP-10

Rotors:
- 12.19” diameter
- GT slotted Iron Ultralite HPS 32 Rotors
- 1.1” Thick
- Dynamically Balanced

Rotor Hats:
- Light-Weight Aluminum Construction
- Black E-Coat Finish
- 1.53” Hat Offset
- Dual Drilled Lug Pattern
- 5x4.75
- 5x5

Please Note: This brake kit recommends the use of a 16” wheel or larger for clearance. Additionally, this Wilwood big brake kit has been specifically designed for use with Wilwoods Prospindles only.

Wilwood has developed a substantial matrix of brake components and engineering techniques that allow them to quickly and reliably create brake systems for almost any application. Their core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components, in addition to designing and manufacturing brakes for all types of competitive motor sports.

Order this Wilwood 140-15302 Forged Narrow Superlite 4R Front Big Brake Kit with 12.19” Rotors for your 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 or 1987 GM Truck or your Chevrolet C10 today from CJ Pony Parts.

California Residents: Proposition 65 Warning

Installation Difficulty

Moderate
Moderate

Intermediate skill is required for this installation.

Vehicle Fitment

This product will fit the following C10 years:

  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,
  • 1980,
  • 1981,
  • 1982,
  • 1983,
  • 1984,
  • 1985,
  • 1986,
  • 1987,
