Wilwood Front Big Brake Kit Forged Narrow Superlite 6R With 13.06” Slotted Rotors GM Truck/Chevrolet C10 1963-1987

CJ's Part Number:
DBF224-V
From
$1,494.99

Wilwood Forged Narrow Superlite 6R Front Big Brake Kit with 13.06” Slotted Rotors for 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 and 1987 GM Trucks and Chevrolet C10s.

Are you looking to overhaul the front brakes in your 1963-1987 GM or Chevrolet truck? If so, this brand-new Wilwood Forged Narrow Superlite 6R Front Big Brake Kit with 13.06” Slotted Rotors (140-15303) is calling your name! Be sure to purchase your brake kit now from CJ Pony Parts!

Wilwood Big Brake Kit Features:
- Direct-fit upgrade for all 1963-1987 GM trucks
- Provides better braking capability for your front end
- Includes forged narrow superlite 6R calipers in your choice of color
- Perfect for show trucks and high performance street/track applications
- Ideal if you're looking to upgrade to a larger wheel/tire package

Wilwood understands that you want reliable, comfortable braking no matter when your GM truck came off the factory line, and that's exactly why they designed this complete Big Brake Kit for your C10's front end! It includes absolutely everything you'll need to update and upgrade your front brakes, including 13.06" slotted rotors and superior Superlite calipers in your choice of finish. This superior kit is ideal if you're turning your classic truck into a show vehicle or plan on using it to race the streets or track, so hurry up and grab yours now from CJ's!

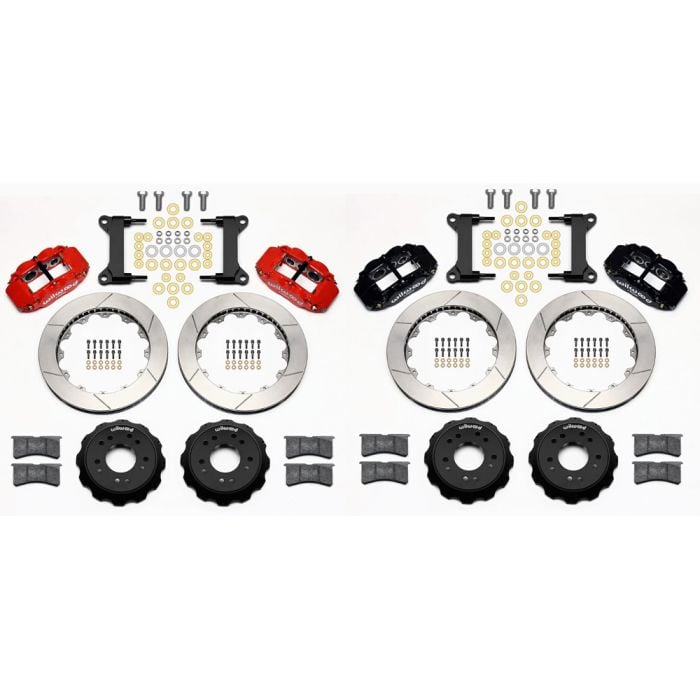

Kit Component Specs
Calipers:
- Superlite 6R forged narrow
- Available in Black or Red
- Six (6) stainless pistons
- 4.04 square inches of piston area
- Radial mounting style
- Brake pads feature 8.2" of surface area
- Uses brake pad compound BP-10

Rotors:
- 13.06" diameter
- GT slotted Iron Ultralite rotors
- 1.25" thick
- Dynamically balanced

Rotor Hats:
- Lightweight aluminum construction
- Black e-coat finish for protection
- 1.38" hat offset
- Dual drilled lug pattern: 5x4.75 and 5x5

Vehicle Fitment Note: Wilwood recommends using an 17" or larger wheel with this front brake kit to ensure proper clearance.

Please Note: This Wilwood Big Brake kit has been specifically designed for use with Wilwoods Prospindles ONLY.

Replacing brakes are a necessity of owning any classic vehicle. However, while they will always wear out, the brakes on your vintage Chevrolet C10 truck don't need to wear out as fast when you install well engineered, high performance braking components. With CJ Pony Parts now offering the latest selection of brakes from Wilwood, you can find these parts at some of the best prices around. Browse around and grab the upgraded Wilwood brake kit your Chevy truck deserves, and place your order with CJ’s today!

Don't wait and order this complete Wilwood 140-15303 Forged Narrow Superlite 6R Front Big Brake Kit with 13.06” Slotted Rotors for your 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 or 1987 GM Truck or Chevrolet C10 from CJ Pony Parts today!

Installation Difficulty

Moderate
Moderate

Intermediate skill is required for this installation.

Vehicle Fitment

This product will fit the following C10 years:
