Wilwood Narrow Superlite Front Disc Big Brake Kit Dana 30/44 Bronco 66-75 6-Piston w/ 12.88" Drilled/Slotted Rotors

Upgrade your 1966‑1975 Bronco’s stopping power with this Wilwood front big brake kit! It provides a straightforward bolt‑on installation for Dana 30/44 front axles.

Features and Benefits:
- Available with black or red powder coat on calipers
- Six piston forged Narrow Superlite calipers for increased braking force
- 12.88” drilled and slotted rotors improve heat dissipation
- Bolt‑on design fits Dana 30/44 axles
- Black e‑coated aluminum big brake hats resist corrosion
- Includes braided stainless brake hoses for improved pedal feel
- Wilwood BP‑10 brake pads for all‑around performance
- Provides high performance stopping power
- Fits most 17” or larger wheel packages

This kit improves brake bite and fade resistance without requiring OE spindle modifications. it features forged Narrow Superlite 6‑piston calipers and high‑performance 12.88” drilled/slotted rotors. Each kit includes braided hoses, Wilwood BP‑10 pads, and all necessary hardware. Plus, it's available in a black or red powder coat finish.

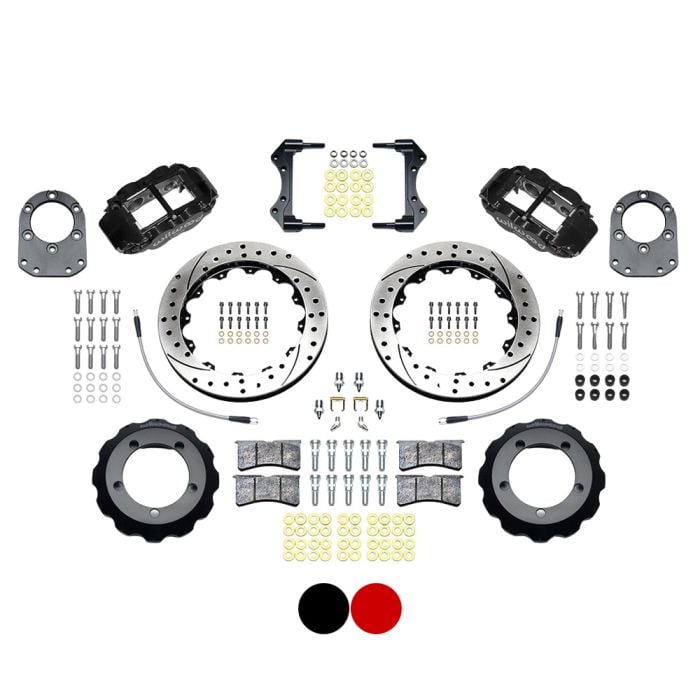

Kit Includes:
- Mounting brackets
- 2-Piece 12.88” rotor assemblies options
- Six piston calipers
- Wilwood BP-10 brake pads
- Braided brake hoses
- All necessary mounting hardware
- Detailed installation instructions

Specifications:
- Hub Offset: +.00
- Spindle Type: Factory Drum Spindle
- Mount Type: Radial
- Caliper Type: 6 Piston in Black or Red Powder Coat
- Rotor Diameter: 12.88”
- Wheel Diameter: 17”

Please Note: This brake kit fits OE spindles.

Vehicle Fitment:
- 1966-1975 Bronco with Dana 30/44
