Wilwood Brake Master Cylinder Tandem With Push Rod And 1-1/8" Bore

CJ's Part Number:
BMC93-V
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 164.75ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Highlights

  • High Pressure Aluminum
  • 2:1 Volume Chamber Ratio
  • Simple Installation
  • Weighs 75% Less Than OE MC
From
$199.95

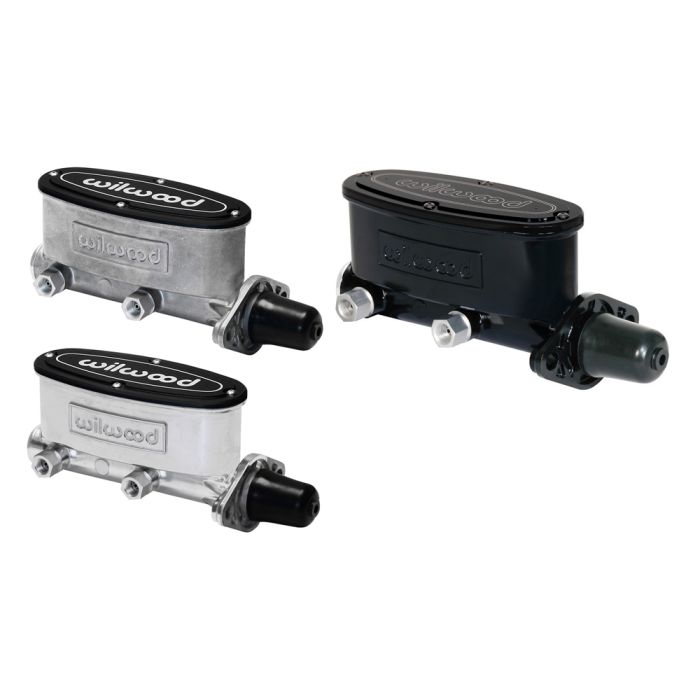

Wilwood Tandem Brake Master Cylinder With Push Rod And 1-1/8" Bore.

Braking power is just as important as speed, so give your classic car the dependability it needs on the track or the streets with a Wilwood Tandem Brake Master Cylinder With Push Rod And 1-1/8" Bore. Upgrade the master cylinder under your hood with your choice of finish on a smaller bore for improved braking for faster speeds.

Features and Benefits:
- Available in raw, black, and polished finish
- High-pressure, die casting aluminum materials
- Correct pushrod and 1-1/8” bore included
- Fluid outlet ports on both sides of bore
- Total piston stroke is set to 1.10”
- Chamber volume ratio of 2:1
- Simple installation
- Direct-fit replacement

The 1-1/8” bore on Wilwood's Tandem Brake Master Cylinder is designed primarily for use with power brake applications from vacuum assist or hydraulic assist systems. Mount flanges from 3.22” to 3.40” are compatible and common measurements for most domestic Mustangs, Broncos, F-100s, and C10s. The bore offers fluid outlet ports on both sides and the stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only three pounds, a 75 percent weight savings over most cast iron OE type master cylinders. Improve your braking performance by replacing the brake master cylinder in your Restomod for a smaller bore.

Vehicle Fitments:
- 1965-1973 Mustang
- 1966-1977 Bronco
- 1948-1979 F100
- 1960-1987 C10

Please Note: If you are replacing a factory style master cylinder, additional plumbing lines and fittings may be required for correct installation.

California Residents: Proposition 65 Warning

Vehicle Fitment

This product will fit the following Bronco years:

This product will fit the following C10 years:

  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,
  • 1980,
  • 1981,
  • 1982,
  • 1983,
  • 1984,
  • 1985,
  • 1986,
  • 1987,

This product will fit the following F-100 years:

  • 1948,
  • 1949,
  • 1950,
  • 1951,
  • 1952,
  • 1953,
  • 1954,
  • 1955,
  • 1956,
  • 1957,
  • 1958,
  • 1959,
  • 1960,
  • 1961,
  • 1962,
  • 1963,
  • 1964,
  • 1965,
  • 1966,
  • 1967,
  • 1968,
  • 1969,
  • 1970,
  • 1971,
  • 1972,
  • 1973,
  • 1974,
  • 1975,
  • 1976,
  • 1977,
  • 1978,
  • 1979,

This product will fit the following Mustang years:
