Aeromotive Race Fuel System Stealth A1000 Mustang Cobra 2003-2004

Aeromotive:
17188

Highlights

  • OEM Chassis FItment
  • Factory System Compatible
  • Stealth A1000 Fuel Pump
  • Made in the USA
$1,986.99

Aeromotive Stealth A1000 Race Fuel System for 2003 and 2004 Cobra Mustangs.

Boost up your 2003-2004 Cobra Mustang’s engine fuel system to race-quality with the Aeromotive Stealth A1000 Race Fuel System! Designed for stock integration, this kit is directly compatible with the OEM fuel-level sending unit and installs onto the factory chassis location without the need for extensive modification. The Stealth A1000 fuel pump combined with billet high flow fuel rails and a high flow filter create a top-notch system replacing your current worn out fueling components. Taking the liberty to keep installation as simple as possible, Aeromotive uses a one-piece CNC Y-block and includes all necessary ORB port fittings. For Cobras that will be primarily raced, this kit provides an HD fuel pump wiring kit to bolster your electrical supply and ultimately put you miles ahead. All components of this kit are made in the USA for optimal quality and customer satisfaction.

Features and Benefits:
- Rated for EFI Engines Producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated on Gas
- Designed for SN95 Cobra Mustang Chassis and Intake Manifolds with OEM 2003-2004 Cobra Fuel Tank
- Aeromotive HD Fuel Pump Wiring Kit
- Stealth A1000 Fuel Pump
- Billet High Flow Fuel Rails
- Billet EFI Pressure Regulator
- One-Piece CNC Y-Block
- High Flow Filter
- Made in the USA

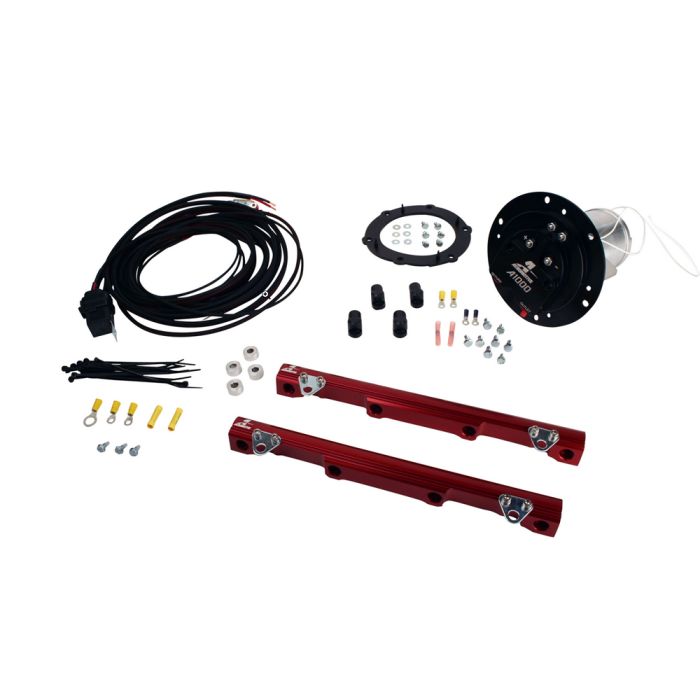

Kit Includes:
- (1) Set of Fuel Rails
- (1) Fuel Pressure Regulator
- (1) Fuel Pump Assembly
- (1) Fuel Pump Speed Controller
- (1) Filter Bracket
- (1) Filter Assembly, 40-Micron
- (1) One-Way Check Valve
- (6) ORB-08 to AN-08 Fittings
- (4) ORB-10 to AN-08 Fittings
- (1) ORB-06 to AN-08 Fitting
- (1) Y-Block, AN-08
- (1) OR002-2910 AN-10 O-Ring

Please Note:
- Fuel lines and hose-ends sold separately.
- For continuous duty and street applications, please see P/N: AER17189
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.

Tech Tip:
- All Aeromotive fittings and adapters are fully compatible with gasoline and alcohol-based fuels.

California Residents: Proposition 65 Warning

Note: This item is not CARB (California Air Resource Board) exempt and is not legal for sale or use in the state of California.

Installation Difficulty

Difficult
Difficult

Advanced skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
