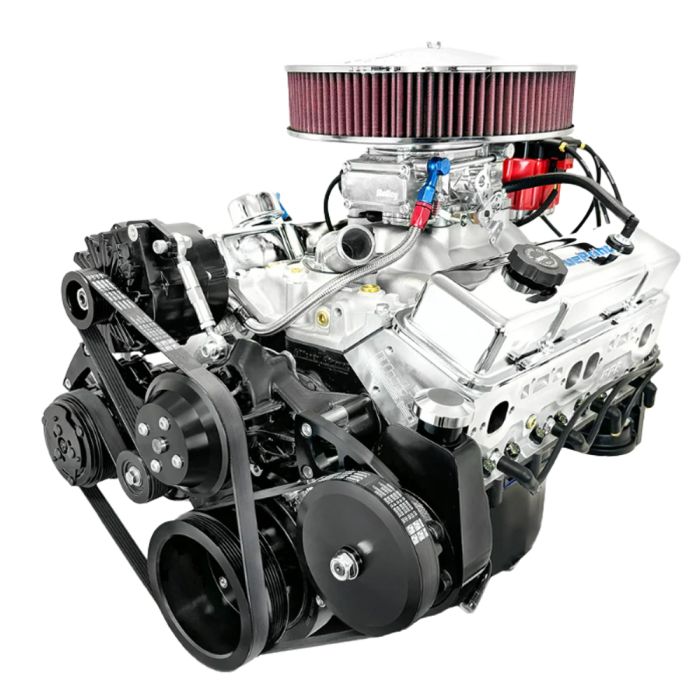

BluePrint Engines GM 350 Crate Engine Carbureted Deluxe Dressed 341 HP W/ Black Pulley Kit

This crate engine (BP350CTCK) features aluminum cylinder heads for enhanced airflow for improved performance. The advanced hydraulic roller cam offers optimized valvetrain geometry to maximize the potential of your vehicle. With a compression ratio of 9.2:1, this engine is engineered for dependable operation while balancing power with everyday drivability. Plus, it is Deluxe-dressed and comes with a front accessory drive in all black.

Features and Benefits:
- High-strength cast iron deluxe-dressed crate engine block
- 341 Horsepower / 371 FT. LBS. Torque
- Compression Ratio: 9.2:1
- Black front accessory drive w/ water pump, A/C compressor, alternator, power steering pump
- Features 4-bolt main, 4.000" bore, and 1-piece rear main seal
- Includes mech fuel pump provision
- Drilled and tapped for use with clutch linkage
- Passenger side dipstick placement
- Cast crankshaft with hypereutectic pistons and 3.480" rotation stroke
- Forged 5.700" crankshaft connecting rods
- Crankshaft is internally balanced at the front and externally balanced at the rear
- Aluminum cylinder heads feature 64cc chamber
- Hydraulic roller cam design
- 32-degree total ignition timing at 3500 RPM
- Holley Street Warrior 600cfm vacuum secondary carburetor w/ electric choke
- Backed by BluePrint Engines' 30-month/50,000-mile warranty

Cylinder Head Specifications:
- 64cc Chambers
- 2.02" Intake / 1.60" Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners

Camshaft Specifications:
- 0.477” Intake / 0.471” Exhaust Lift
- 202 Intake / 212 Exhaust Duration
- @ 0.050-115° Lobe Separation

Deluxe Dressed Includes:
- Valve Covers
- Spark Plugs
- Spark Plug Wires
- Water Neck
- Thermostat and Thermostat Housing
- Mechanical Fuel Pump
- Rear Sump Oil Pan
- Timing Cover
- Aluminum Intake
- HEI Distributor

Additional Notes:
- The front accessory drive on this engine fits many vehicles, however, it is the customer responsibility to accurately measure and confirm fitment. Note that this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- Front accessory drive does NOT fit Corvette.
- This engine makes up to 18" of vacuum. It is designed to work well with power brakes, stock torque converter, stock gearing, and to run on 87 octane fuel.
- The performance aluminum cylinder heads on this engine feature a 0.500" raised port vs. OEM.
