BluePrint Engines GM 350 Crate Engine Fuel Injected Base Dressed 341 HP
Highlights
- 341 HP & 371 Ft-Lbs Torque
- 9.2:1 Compression Ratio
- Hypereutectic Pistons
- Aluminum Head Construction

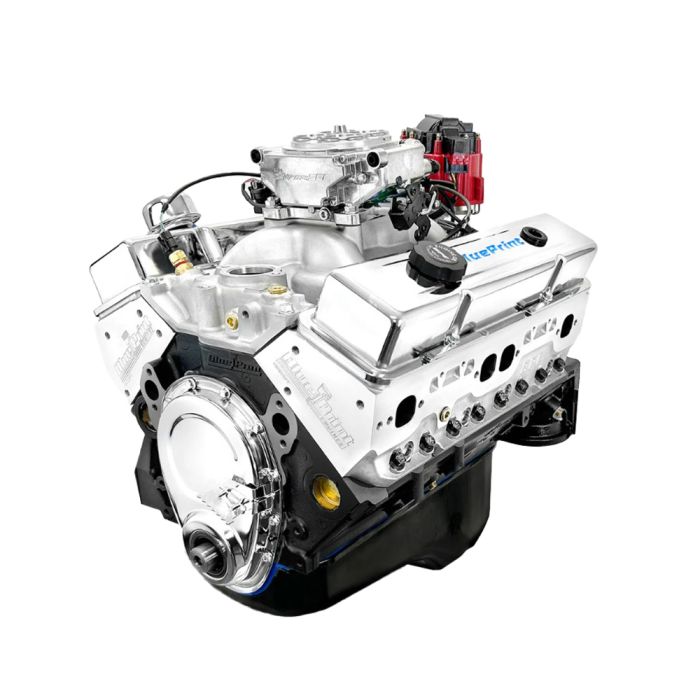

BluePrint Engines Base-Dressed 341-Horsepower Fuel Injected GM 350 C.I. Crate Engine.
This base-dressed, fuel-injected crate engine (BP350CTF) showcases an innovative design engineered to excel under various conditions, whether you're hitting the open road or navigating city streets. It is finely tuned to deliver 341 horsepower and a robust 371 ft. lbs. of torque. It employs a cast iron block, superior aluminum cylinder heads with optimal airflow, and a hydraulic roller cam. Pair these features with a 9.2:1 compression ratio and you get smooth operation and power delivery! Dressed for performance, this engine comes complete with components like an aluminum intake, timing cover, rear sump oil pan, an HEI distributor, and Holley Sniper II EFI.
Features and Benefits:
- High-strength cast iron base-dressed crate engine block
- 341 Horsepower / 371 FT. LBS. Torque
- Compression Ratio: 9.2:1
- Features 4-bolt main, 4.000" bore, and 1-piece rear main seal
- Includes mech fuel pump provision
- Drilled and tapped for use with clutch linkage
- Passenger side dipstick placement
- Cast crankshaft with hypereutectic pistons and 3.480" rotation stroke
- Forged 5.700" crankshaft connecting rods
- Crankshaft is internally balanced at the front and externally balanced at the rear
- Aluminum cylinder heads feature 64cc chamber
- Hydraulic roller cam design
- 32-degree total ignition timing at 3500 RPM
- Utilizes Holley Sniper II electronic fuel injection (EFI)
- Backed by BluePrint Engines' 30-month/50,000-mile warranty
Cylinder Head Specifications:
- 64cc Chambers
- 2.02" Intake / 1.60" Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners
Camshaft Specifications:
- 0.477” Intake / 0.471” Exhaust Lift
- 202 Intake / 212 Exhaust Duration
- @ 0.050-115° Lobe Separation
Base Dressed Includes:
- Valve Covers
- Rear Sump Oil Pan
- Timing Cover
- Aluminum Intake
- HEI Distributor
Additional Notes:
- This engine makes up to 18" of vacuum. It is designed to work well with power brakes, stock torque converter, stock gearing, and to run on 87 octane fuel.
- The performance aluminum cylinder heads on this engine feature a 0.500" raised port vs. OEM.
California Residents: Proposition 65 Warning
Related Categories: C10 Crate Engines & Cylinder Blocks, C10 Restomod Engine, C/K Engine, C/K Restomod
Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:
- 1965 and older U.S. manufactured California certified vehicles
- 1967 and older U.S. manufactured federally certified vehicles
