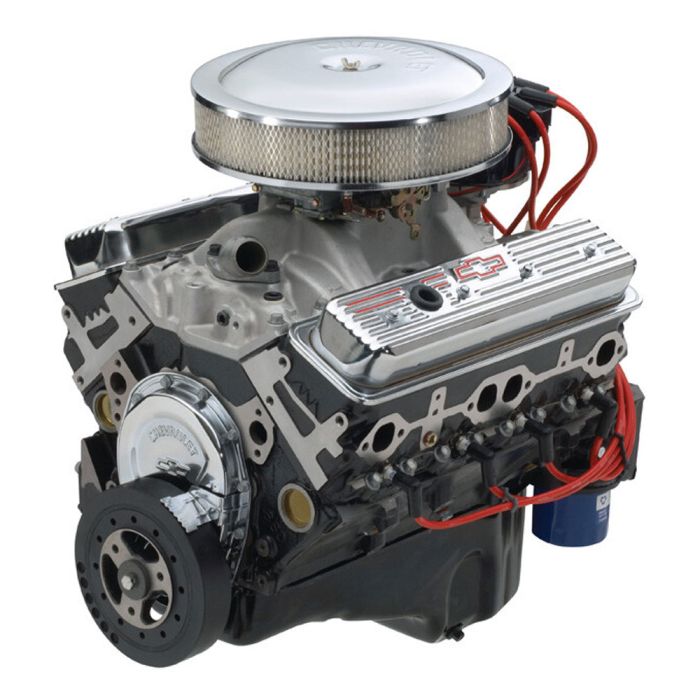

Chevrolet Performance 350 C.I. Deluxe Crate Engine 330HP

The double rotating assembly of this engine (19433038) features a 9.0:1 compression ratio. Its flat-tappet hydraulic camshaft needs no adjustments while high-flow heads offer increased power. Get 330 horsepower and 381 ft-lbs. of torque!

Features and Benefits:
- Engine Type: Chevy Small-Block V8
- Displacement (cu in): 350
- Bore x Stroke (in): 4.000 x 3.480
- Block: Cast-iron with 4-bolt main caps
- Crankshaft: Forged steel
- Connecting Rods: Powdered metal steel
- Pistons: Cast-aluminum
- Camshaft Type: Hydraulic flat tappet
- Camshaft Lift (in): .435 intake / .460 exhaust
- Cylinder Heads: Vortec iron; 64cc chambers
- Valve Size (in): 1.940 intake / 1.500 exhaust
- Compression Ratio: 9.0:1
- Rocker Arms: Stamped steel
- Rocker Arm Ratio: 1.5:1
- Water Pump: Cast iron, long-style
- Recommended Fuel: Premium pump
- Ignition Timing: 32° Total at 4,000 rpm
- Maximum Recommended rpm: 5100
- Balanced: External
- Flexplate: 12.750
- Intake Manifold: Dual Plane

Additional Notes:
- Comes with 12.750" externally balanced 153-tooth automatic transmission flexplate. Requires externally balanced flywheel for manual transmission.
- Requires fuel line from fuel pump to carburetor.
- Some assembly and minor engine tuning required.
- NOT intended for marine applications.

*Only for use on pre-pollution controlled vehicles: Designed for pre-1976 street vehicles or any off-road vehicle.
