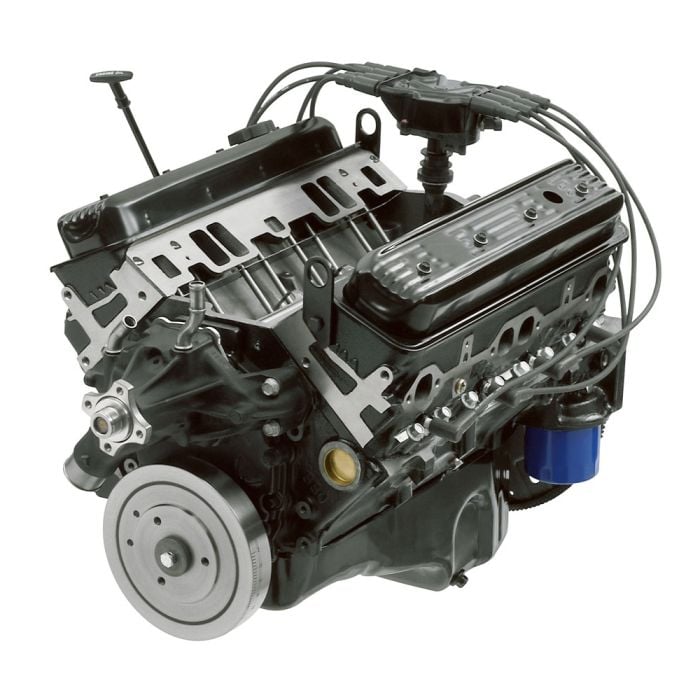

Chevrolet Performance HT383E 383 C.I. Truck Crate Engine 323 HP
Highlights
- 383 C.I. Stroker Power
- 4-Bolt Main Cast-Iron Block
- Hydraulic Roller Camshaft
- Built for Half-Ton Trucks
Chevrolet Performance HT383E 383 C.I. 323 HP Truck Crate Engine.
The Chevrolet Performance HT383E (19435449) is a strong upgrade for trucks that originally came with a small-block 350. With 323 horsepower, a forged 4340 steel stroker crank, and a hydraulic roller camshaft, it delivers better torque and stronger pulling power without changing the character of your classic truck. This engine is designed to keep the swap economical by allowing you to reuse key components from your original 350 like the intake manifold, throttle body, and exhaust manifolds. A brand-new 4-bolt-main cast-iron block and Vortec-style iron heads provide the durability you want for work, street driving, and off-road use. It also includes a new water pump and vibration dampener that are commonly replaced during a rebuild.
Features and Benefits:
- Engine Type: Chevy Small-Block V-8
- Displacement (cu in): 383
- Bore x Stroke (in): 4.000 x 3.800
- Block: Cast-iron with 4-bolt main caps
- Crankshaft: 4340 Forged steel
- Connecting Rods: Heavy-duty forged steel
- Pistons: Hypereutectic aluminum
- Camshaft Type: Hydraulic roller
- Camshaft Lift (in): .431 intake / .451 exhaust
- Camshaft Duration (@.050 in): 196° intake / 206° exhaust
- Cylinder Heads: Vortec iron; 64cc chambers
- Valve Size (in): 1.940 intake / 1.500 exhaust
- Compression Ratio: 9.1:1
- Rocker Arms: Stamped steel
- Rocker Arm Ratio: 1.5:1
- Water Pump: Cast iron
- Recommended Fuel: Regular pump
- Maximum Recommended RPM: 5000
- Balanced: External
- Flexplate: 12.750"
Additional Notes:
- Requires the reuse of the stock intake manifold, distributor, wiring harness and fuel injection system.
- Due to calibration variances between half-, three-quarter- and one-ton vehicles, this engine is designed for half-ton trucks and SUVs ONLY.
- Comes with 12.750" externally balanced 153-tooth automatic transmission flexplate. Requires externally balanced flywheel for manual transmission.
- Has right-side dipstick.
- Distributor with melonized steel gear MUST be used with long-blocks and partial engines with steel camshafts, or engine damage will occur.
*Distributor and plugs/wires ARE NOT INCLUDED with this engine!
*Only for use on pre-pollution controlled vehicles: Designed for pre-1976 street vehicles or any off-road vehicle.
Vehicle Fitment:
- 1960-1987 Chevy/GMC C10
- 1988-1998 Chevy C/K
California Residents: Proposition 65 Warning
Related Categories: C10 Crate Engines & Cylinder Blocks, C/K Engine
Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:
- 1965 and older U.S. manufactured California certified vehicles
- 1967 and older U.S. manufactured federally certified vehicles
