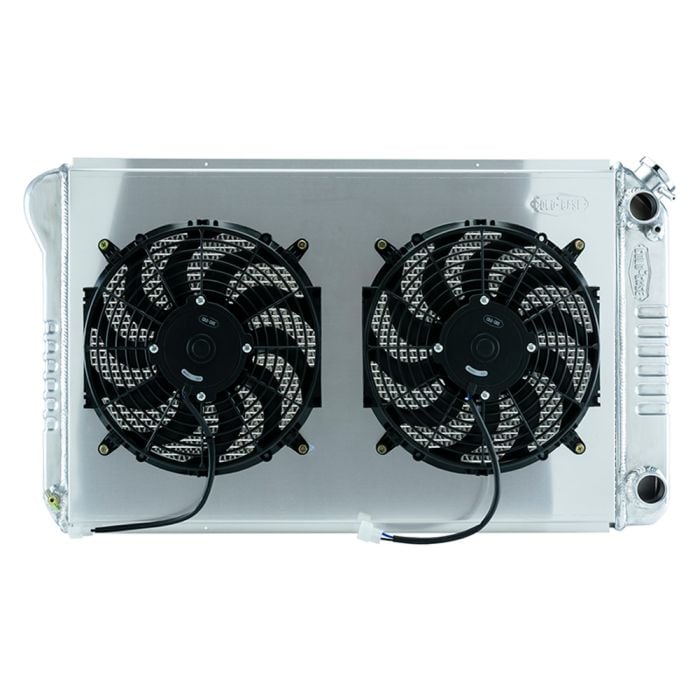

Cold Case Performance Radiator W/ Dual 12" Fans/ Shroud LS Swap Chevy C10 67-76 Aluminum

Support your LS Engine Swap with an Aluminum Performance Radiator (GMT558ALSK) and Dual 12" Fan and Shroud Kit from Cold Case Radiators. Designed for 1967-1976 Chevrolet C10s, this Radiator delivers exceptional cooling performance.

Features and Benefits:
- 100 Percent TIG Welded for Structural Integrity
- 12-Inch Fan Diameter
- All-Aluminum Construction
- (2) 1.25-Inch Tubes
- Polished OE-Style Tanks
- 16 Fins per Inch
- Corrugated Fins with Increased Surface Area and Thermal Transfer
- Pressure Tested
- Direct Fitment for 1967-1976 GM LS Swap trucks

This Performance Radiator offers amazing thermal transfer using 16 corrugated fins per inch. It features a 100 percent TIG-welded aluminum construction that is stamped for an original aesthetic. This radiator features two (2) 1.25-inch tubes and polished OE-style tanks. This is an oversized 2-row Radiator that cools better than 3-row or 4-row radiators.

Specifications:
- Core Height: 18.4 Inches
- Core Width: 28.5 Inches
- Overall Height: 18.82 Inches
- Overall Width: 34.21 Inches
- Overall Thickness: 3 Inches
- Upper Hose: 1.50 Inches
- Lower Hose: 1.50 Inches
- Tubes (2): 1.25 Inches

Vehicle Fitment:
- 1967-1976 GM LS Swap Trucks

Please Note: Radiator is not equipped with a transmission cooler. Models with automatic transmission will require use of an external transmission cooler. See part numbers TC100 or TC101.

Tech Tip: To run an LS swap on your classic truck, you can run this radiator and run a separate transmission cooler OR run Cold Case Radiators P/N: GMT558A standard high flow C10 radiator with a 2-piece upper hose that goes to the driver's side inlet (use a 'T' fitting in between the 2 hoses for the steam port).
