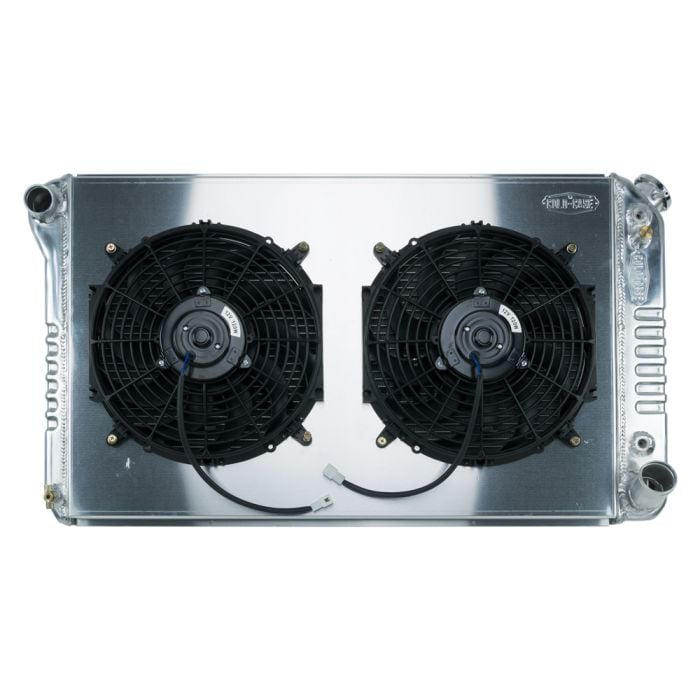

Cold Case Radiator Radiator Performance Aluminum With Dual 14" Fans Automatic Transmission Chevrolet C10 1967-1976

A larger radiator for your 1967-1976 Chevy C10 will optimize the airflow through your engine bay for improved cooling. The Cold Case Radiator Aluminum Performance Radiator uses Dual 14" Fans with 2,200 cfm and 2-row oversized tubes. The 1-1/4-inch tubes and corrugated fins allow for full airflow to pass through the 28-inch wide radiator. Construction with 16 fins per inch, the stamped aluminum radiator will span wider than any stock radiator.

Features and Benefits:
- Aluminum TIG-Welded w/ Factory Correct Stamping
- 2-Row Wide 1-1/4" Tubes
- Corrugated 16 fin/inch for Added Surface Area
- Pressure Tested for Exceptional Thermal Transfer
- Includes OE Style Fittings for Factory Location Installation

You will use four core mounting brackets and insulators for factory location installation.

Specifications:
- Core Height: 17.25"
- Core Width: 28.35"
- Overall Height: 18.6"
- Overall Width: 34"
- Overall Thickness: 3"
- Fan Diameter: 14"
- Fan Volume: 2,200 cfm
- Tubes: (2) 1.25" Tubes
- Upper Hose: 1.50"
- Lower Hose: 1.77"
- Trans Cooler Fitting: 5/16" Inverted Flare
