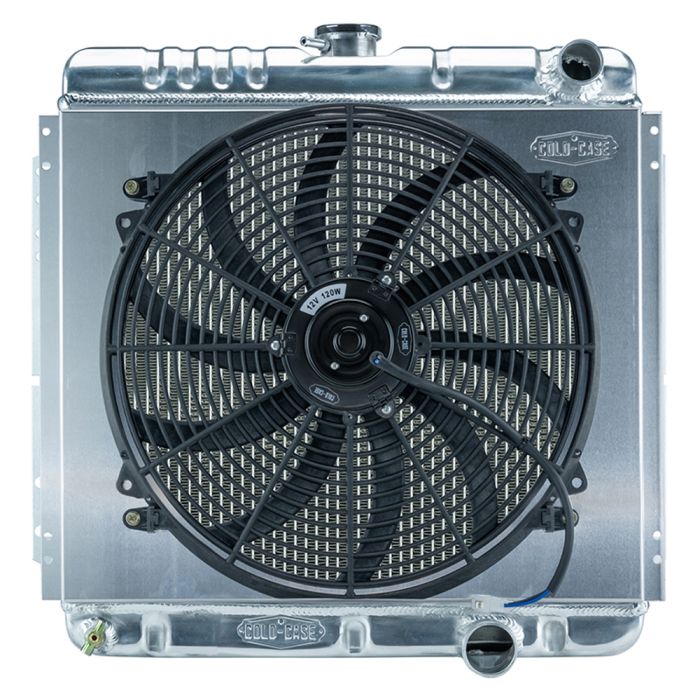

Cold Case Radiators Aluminum Performance Radiator 20" With 16" Fan Manual Transmission Mustang 289/ 302 1967-1970

For improved cooling on your classic Mustang, Cold Case offers these direct-fit upgrade Radiators. Made from 100% tig welded aluminum, these radiators offer a revised 2-row design for a simple upgrade that fits in the core support and provides excellent performance. A 16" electric fan is also included, so you can ditch the crank-driven original.

Features and Benefits:
- 100 percent TIG welded
- 16" fan diameter
- All aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins add surface area and thermal transfer
- Pressure tested

These Cold-Case radiators are Tig-welded 100 percent aluminum and absolutely beautiful. The oversize 2-row design of this radiator will out-cool competing three and four row designs. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find the difference between an original and a Cold-Case.

Specifications:
- 16.5" Core Height
- 19.6" Core Width
- 21.5" Overall Height
- 22.4" Brackets Overall Width
- 3" Overall Thickness
- Two 1.25" Tubes
- 1.50" Upper Hose
- 1.75" Lower Hose
