Dakota Digital 5-Gauge Set HDX Series With Silver Alloy Style Face 1967-1968

Dakota Digital:


  • Silver Alloy Gauge Face
  • Multi Color LCD Display
  • Fully Lit Needles And Faces
  • 5 Gauge Set
MSRP $1,295.00
You save $64.75

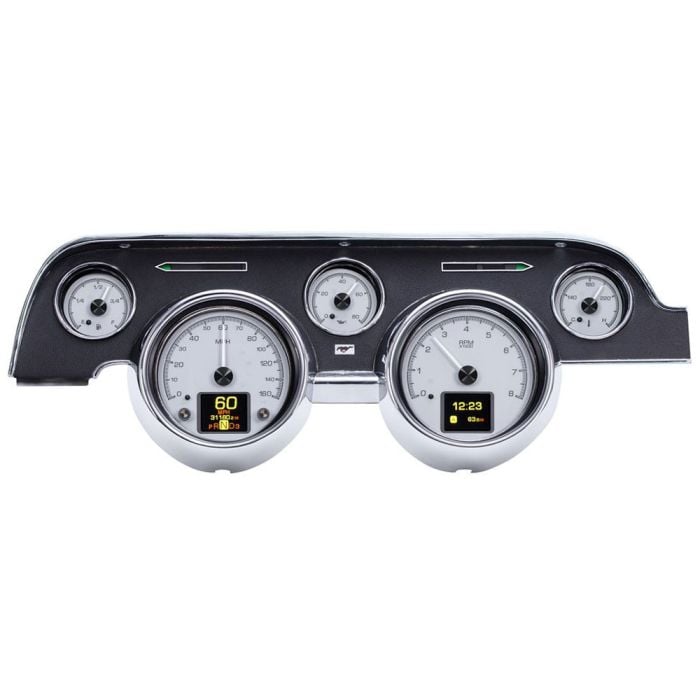

Set of Dakota Digital HDX Series Gauges with Silver Alloy Style Faces for all 1967-1968 Mustangs.

Upgrade the interior of your classic 1967-1968 Mustang when you install this Set of Dakota Digital HDX Series Gauges with Silver Alloy Style Faces from CJ Pony Parts! This set of gauges can display different engine parameters digitally and features the ability to customize the needle, gauge reading, and display colors independently to give your gauge cluster a nice custom touch.

Dakota Digital HDX Gauges HDX-67F-MUS Include:
- Speedometer - 0-160 MPH Analog, 0-255 MPH Digitally
- Fuel Level - Empty-Full Analog, 0-99% Digitally
- Tachometer - 0-8,000 Analog, 0-9,990 Digitally
- Voltmeter - 9-17 VDC Analog and Digitally
- Oil Pressure - 0-80 PSI Analog, 0-100 Digitally Displayed in 1 psi Increments
- Water Temperature - 100-260F Analog, 100-300F and 40-150C Digitally

These HDX Series Gauges from Dakota Digital offers you a lot of control over the display of the gauges. The five gauges will bolt right into a stock of reproductions 67-68 Mustang bezel and feature twin TFT message centers. These message centers can display different parameters of your engine more accurately as well as some performance meters such as 0-60 times and 1/4 mile times.

Performance Meters:
- 0- 60 MPH Timer (0- 100 kmh)
- 1/4 and 1/8 mile time
- 1/4 and 1/8 mile end speed (trap speed)
- High-speed recall
- High RPM recall

Calibration and personal settings can be easily set with the built-in capacitive touch buttons or with the Bluetooth app which is available on Apple and Android devices. With the HDX system, you can even personalize the display with over 30 selectable color options and change the color of the needle, gauge readings, and both TFT displays independently! This allows you to truly customize your gauge cluster.

- Turn Signals (Left/ Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/ On & Engaged when vehicle is equipped)
- Gear Position (Optional GSS-2000 sensor required)
- 4 x 4 (When vehicle is equipped)
- Wait to Start (When vehicle is equipped)
- Two Auxiliary input indicators with user-programmable labels
- Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)

Dakota Digital’s HDX system will include a water temperature sensor, oil pressure sensor, cable driven speed sensor/generator, bushings and of course the HDX central control box.

Included Sensors and Fittings:
- Water Temperature: 1/8" NPT, ground isolated sensor with a 10 ft. harness
- Oil Pressure: 1/8" NPT solid state sensor with a 10 ft. harness
- Cable Driven Speed Sensor: Replaces Ford speedometer cables with a 10 ft. harness
- Bushings: Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads

*Bezel not included. Can use OEM or reproduction style bezel.

If you are looking to replace the original gauges on your early model Mustang, CJ Pony Parts has a great brand of equipment for you to look at: Dakota Digital. Dakota Digital manufactures restoration and replacement style gauges for early model Mustang that incorporate new age technology, replacing the out of date components with new digital versions that fit seamlessly into position.

Order this Set of Dakota Digital HDX-67F-MUS HDX Series Gauges with Silver Alloy Style Faces for your 1967-1968 Mustang from CJ Pony Parts today!

California Residents: Proposition 65 Warning

Installation Difficulty


Intermediate skill is required for this installation.

Vehicle Fitment

This product will fit the following Mustang years:
