Dakota Digital Gauge System HDX Ford F-100 1973-1979

CJ's Part Number:


  • Choice of Black or Silver Face
  • Capacitive-Touch Buttons
  • Available App for Android/iOS
  • Simplified Installation

Dakota Digital HDX Gauge System for all 1973, 1974, 1975, 1976, 1977, 1978 and 1979 Ford F-100s.

Are you ready for high-tech convenience in your 1973-1979 Ford F-100? Now is the chance to give your truck the upgrade it deserves! Check out this Dakota Digital HDX Gauge System from CJ Pony Parts today!

Features and Benefits:
- Direct fit system
- Full color TFT message center

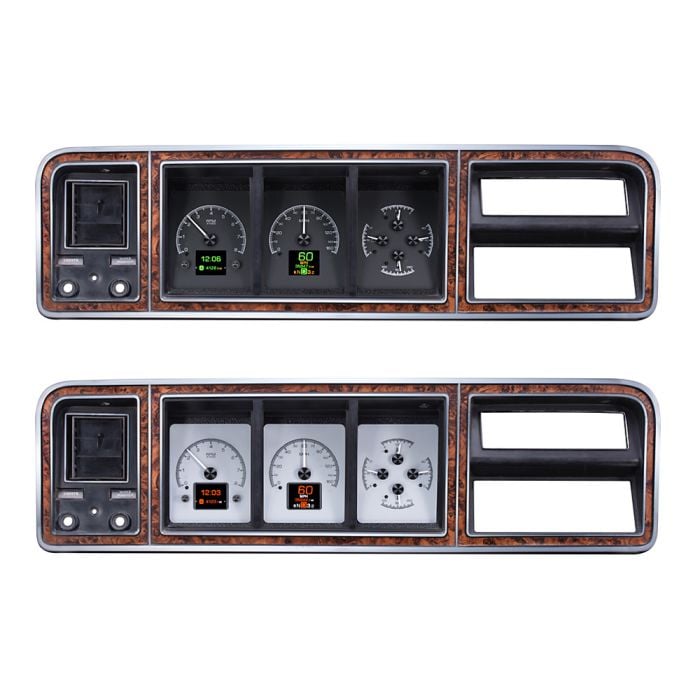

- Choose from black or silver face
- Built-in capacitive-touch buttons
- Available Bluetooth app for Android/Apple
- Dead-faced indicators
- Simplified installation

This HDX Gauge System made by Dakota Digital is a direct fit system that blends today’s technology with the classic styling of your vintage truck! Install this system with the drivetrain of your choice using supplied sensors and available expansion modules. It comes in your choice of face color (silver or black) and features a full-color TFT message center. The system allows you to select independent illumination colors for this message center, along with the gauge readings and needles. You can use built-in capacitive-touch buttons or the available mobile app to calibrate or change personal settings. The system features dead-faced indicators, a red settable warning light for each gauge, and black nickel-plated spun-aluminum needle hubs. Installation is simplified thanks to a central control box, vehicle-harness source signals, and solid state sending units connected to their respective terminals. See the SPECIFICATIONS section below for more information regarding your new Dakota Digital HDX Gauge System from CJ's!

Vehicle Fitment:
- 1973-1979 Ford F-100

Analog Gauges:
- Speedometer: 0-160 MPH (optional metric version 0-260kmh)
- Split scale provides resolution of 120mph speedometer with top range of 160mph
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 psi
- Water Temperature: 100-260ºF (optional metric version 40-120ºC)
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
- Clock: 12-hour analog clock movement

Digital Message Centers Standard Displays:
- Odometer (One time user settable, Million Mile)
- Dual (A/B) Trip Meter (0-9,999.9)
- Clock (12 hour)
- Estimated Range/Miles to Empty

Digital Message Centers Performance Meters:
- 0- 60 MPH Timer (0-100kmh)
- 1/4 and 1/8 mile time
- 1/4 and 1/8 mile end speed (trap speed)
- High speed recall
- High RPM recall

Built-In Indicators:
- Turn Signals (Left/ Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/ On & Engaged when vehicle is equipped)
- Gear Position (Optional GSS-3000 sensor required)
- 4 x 4 (When vehicle is equipped)
- Wait to Start (When vehicle is equipped)
- Two Auxiliary input indicators with user-programmable labels
- Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)
*Not all OEM indicator lamp functions will be replaced. If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Lighting Technology:
- Over 30 selectable colors for needle, sweep, and TFT display
- Controllable daytime and nighttime brightness
- 12 factory preset color themes
- Full RGB LED backlighting with sharp contrast

Included Sensors:
- Water Temperature: 1/8” NPT solid state sensor with 10ft harness
- Oil Pressure: 1/8” NPT solid state sensor with 10ft harness
- Cable Driver Speed Sensor/Generator: Requires approx. 5” clearance
- Bushings: Includes 1/8” to 1/4", 3/8”, and 1/2” NPT bushings and bushings for 12mm and 16mm x 1-1/2 threads

Calibration and Use:
- Pushbutton Control: LED-lit onboard capacitive touch pushbuttons through gauge face provide quick and consistent access to all functions. Button-press feedback available through TFT message center or included buzzer.
- Mobile App: Configurable thru mobile app on Android or Apple devices for real-time readouts, diagnostics, or secondary display.
- Calibration: Handled thru pushbutton switch or remote app. Speedometer and fuel level completed thru pushbuttons and test driving your truck, unless GTP-50-2 is used.
