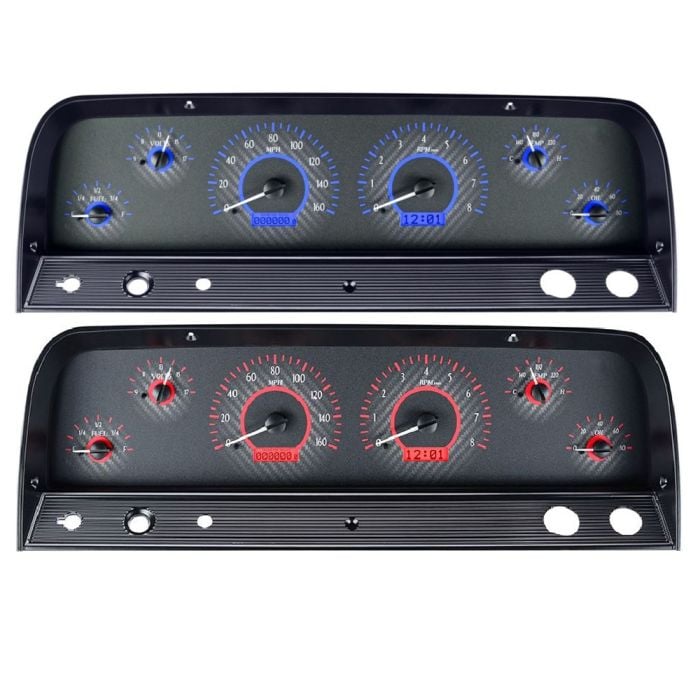

Dakota Digital Gauge System VHX With Carbon Fiber Style Face Chevrolet C10 1964-1966

If you want modern functionality in your classic C10 truck but don't want the hassle of costly and extensive modifications, you need to check out this Dakota Digital VHX Gauge System with Carbon Style Faces. This system fits all 1964-1966 Chevrolet C10 pickups and will give you a modern upgrade that fits in perfectly with your vintage interior. Don't struggle with sluggish or damaged gauges. Replace them with this LED back lit assembly available at CJ Pony Parts.

Analog Gauges:
- Speedometer (0 - 160 MPH)
- Tachometer (0 - 8,000 RPM)
- Oil Pressure (0 - 81 psi)
- Water Temperature (100 - 260ºF)
- Fuel Level (E, 1/4, 1/2, 3/4, F)
- Voltmeter (9 - 17 VDC)

Lighting:
- Auto-Contrasting LED Displays
- LED Lighting Behind Gauge Faces

Dakota Digital manufactures this gauge assembly to fit perfectly into your factory bezel without any modifications. It includes six highly accurate gauges: a speedometer that runs up to 160 mph, a tachometer that runs up to 8,000 rpm, an oil pressure gauge, water temperature gauge, fuel level gauge and a voltmeter. The odometer and dual trip meter is displayed on a digital message center. There are several built-in indicators, including both left and right turn signals, high beam, check engine, parking brake and a gear position indicator that requires P/N: GSS2000 to function (sold separately). All of the sensors come with 10-foot harnesses. The speed sensor harness replaces the GM-style speedometer cables for a cleaner engine bay.

This assembly is designed with gauges that can be programmed and operated with the push of a button. The included buttons can be mounted wherever is most convenient for you to reach while still or driving. You can use the buttons to configure the speedometer and set the cylinder count and fuel level gauge. Once you've calibrated the gauges, the buttons can be used to access the information stored in the digital message centers.

Along with modern functionality that won't change the factory appearance of your classic C10's interior, this system features carbon style gauge faces and comes with your choice of either blue or red displays. Behind each of the gauge faces is a series of LEDs. This configuration is popular with performance instrumentation because of the precise lighting that allows you to read your gauges at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message is illuminated. The auto-contrasting LCD display allows for optimal view despite the time of day or sun glare. At night, you'll find that the blue or red lights complete your look and add custom flare to your interior.

Digital Message Centers
Standard Displays:
- Odometer (one time user settable, Million Mile)
- Dual (A/B) Trip Meter (0 - 9,999.9)
- Clock (12-hour)

Performance Meters:
- 0 - 60 MPH Timer
- 1/4 Mile Time
- 1/4 Mile End Speed (trap speed)
- High Speed Recall
- High RPM Recall

Gauges:
- Speedometer (0 - 255 MPH)
- Tachometer (0 - 9,900 RPM)
- Oil Pressure (0 - 100 psi)
- Water Temperature (100 - 300ºF)
- Voltmeter (9 - 17 VDC)
- Fuel Level (0 - 99%)

Built-In Indicators:
- Turn Signals (left/right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (when equipped)
- Gear Position (P/N: GSS-2000 required)
- 4 x 4 (when equipped)
- Wait to Start (when equipped)

Sensors:
- Water Temperature with 10ft Harness
- Oil Pressure with 10ft Harness
- Speed Sensor with 10ft Harness
- Bushings - 1/8" to 1/4", 3/8" and 1/2" NPT Bushings and for 12mm and 16mm x 1.5 Threads

*Fits factory bezel (not included).

Please Note: GSS2000 is required to use the gear indicator function (sold separately).

Order this Dakota Digital VHX Gauge System with Carbon Fiber Style Faces for your 1964, 1965 or 1966 Chevrolet C10 from CJ Pony Parts today!
