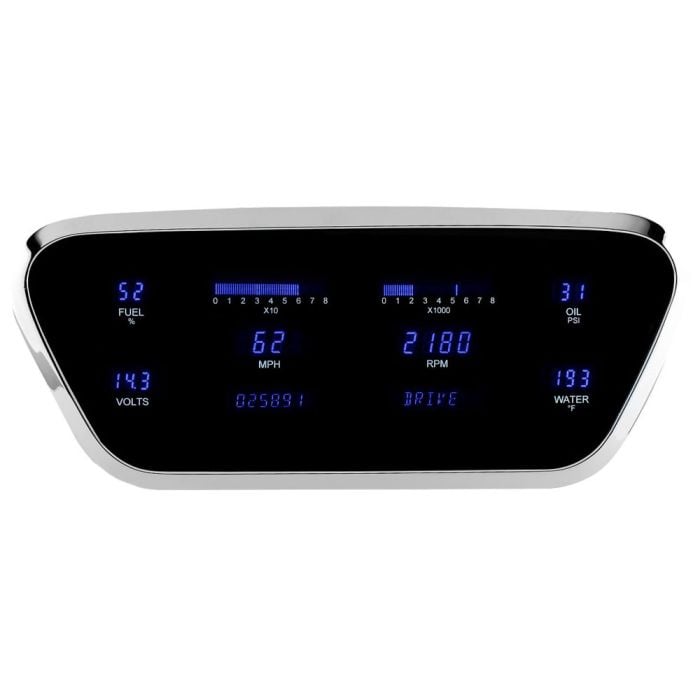

Dakota Digital VFD3 Digital Instrument Gauge System F-100 1953-1955

Dakota Digital has developed a way to improve the features and function of your old 1953-1955 F-100 instrumentation panel with this Dakota Digital VFD3-53F-PU-O-Z VFD3 Digital Instrument Gauge System. Designed to modernize your dash, this new instrument gauge system installs directly into your factory bezel for a perfect fitment. Increased accuracy and additional features are offered through the high brightness vacuum fluorescent displays that bring a modern feel to your F-100s interior.

Literally operated by the push of a button, this instrument gauge system is designed to be as user friendly s possible. Simply mount the included push buttons supplied with your gauges in an easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured, these same buttons are utilized to access the wealth of information located in the Digital Message Centers.

Digital Gauges:
- Speedometer: 0-255MPH
- Tachometer: 0-17,500RPM
- Oil Pressure: 0-99PSI
- Water Temperature: 0-300F
- Fuel Level: 0-99%
- Voltmeter: 8-17VDC
- Standard Colors: Blue or Teal
- Digital Message Centers

Standard Displays:
- Odometer: One time user settable, million mile
- Dual: A/B Trip Meter 0-9,999.9

Performance Meters:
- 0-60MPH Timer
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall

Gauges:
- Speedometer: 0-255MPH opposite scale of main speedometer

Built-in Indicators:
Indicators:
- Turn Signals: Left and right hand
- High Beam
- Check Engine
- Parking Brake
- Cruise Control: On/on and engaged when vehicle is equipped
- Gear Position: Optional GSS-2000 sensor required
- 4x4: When vehicle is equipped
- Wait to start: When vehicle is equipped

Included Sensors:
- Water temperature: W/10ft harness
- Oil pressure: W/10ft harness
- Speed sensor: W/10ft harness
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1-1/2 threads

*These gauges come with Blue and Teal lenses. Full 6 gauge instrument system fits into OEM bezel for 1953-1955 F-100 pick-up.

Tech Tip: Fits directly into existing bezel (not included).

Please Note: GSS2000 is sold separately and is needed for gear indicator function.

Order this Dakota Digital VFD3-53F-PU-O-Z VFD3 Digital Instrument Gauge System for your 1953, 1954 or 1955 F-100 today from CJ Pony Parts.
