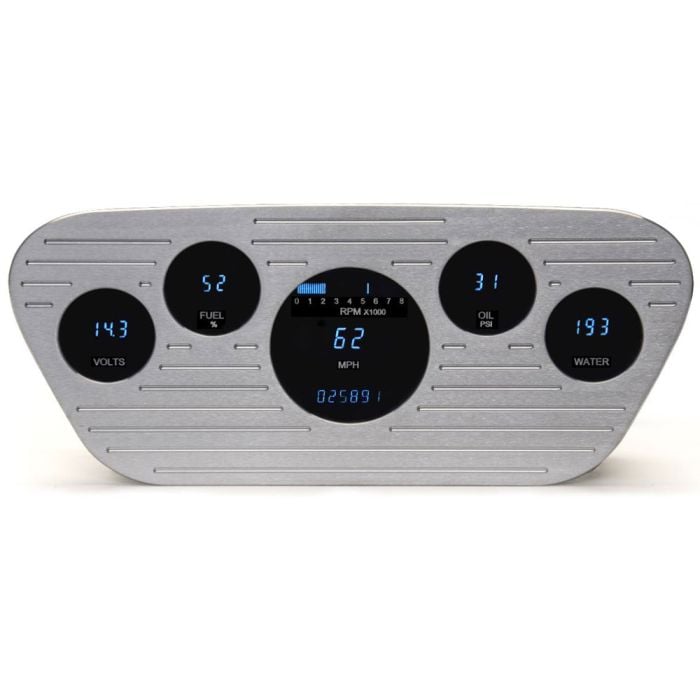

Dakota Digital VFD3 Digital Instrument Gauge System With Aluminum Bezel F-100 1953-1955

Offering technology and features that are literally decades ahead of the current instrumentation in your 1953-1955 F-100, this Dakota Digital VFD3-53F-PU-A-Z VFD3 Digital Instrument Gauge System comes with and aluminum bezel. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and detailed diagnostic information to totally transform the instrumentation panel of your classic F-100 pick-up.

Dakota Digital treats user friendly operation as one of the most important features of all of their products. The same holds true for the push-button functionality of your new instrumentation system. Simply mount the included push buttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Digital Gauges:
- Speedometer: 0-255MPH
- Tachometer: 0-17,500RPM
- Oil Pressure: 0-99PSI
- Water Temperature: 0-300F
- Fuel Level: 0-99%
- Voltmeter: 8-17VDC
- Standard Colors: Blue or Teal
- Digital Message Centers

Standard Displays:
- Odometer: One time user settable, million mile
- Dual: A/B Trip Meter 0-9,999.9

Performance Meters:
- 0-60MPH Timer
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall

Gauges:
- Speedometer: 0-255MPH opposite scale of main speedometer

Built-in Indicators:
Indicators:
- Turn Signals: Left and right hand
- High Beam
- Check Engine
- Parking Brake
- Cruise Control: On/on and engaged when vehicle is equipped
- Gear Position: Optional GSS-2000 sensor required
- 4x4: When vehicle is equipped
- Wait to start: When vehicle is equipped

Included Sensors:
- Water temperature: W/10ft harness
- Oil pressure: W/10ft harness
- Speed sensor: W/10ft harness
- Bushings: 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1-1/2 threads

*These gauges come with Blue and Teal lenses. Full 5 Gauge Instrument System includes Billet Aluminum dash housing to fit 1953- 1955 Ford F-100.

Please Note: GSS2000 is sold separately and is needed for gear indicator function.

Order this Dakota Digital VFD3-53F-PU-A-Z VFD3 Digital Instrument Gauge System with an Aluminum Bezel for your 1953, 1954 or 1955 F-100 today from CJ Pony Parts.
