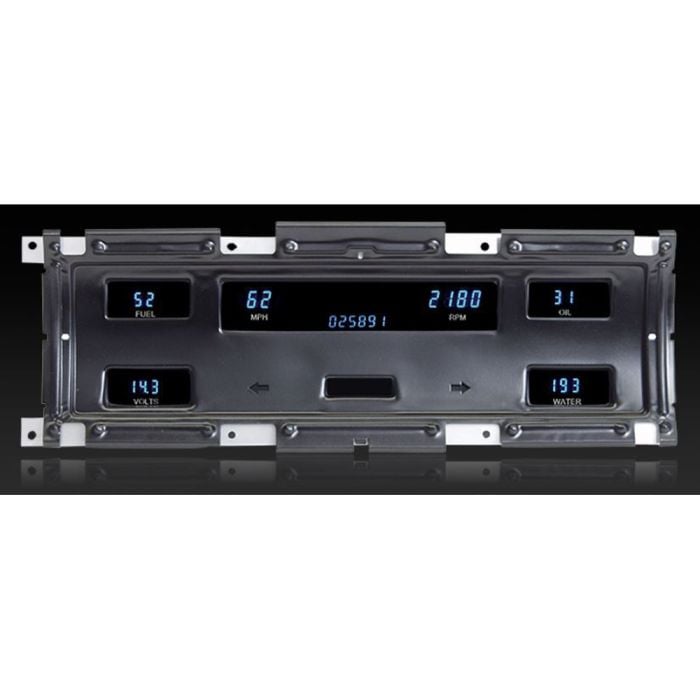

Dakota Digital VFD3 Digital Instrument Gauge System F-100 1967-1972

When restoring your classic 1973-1979 F-100, it wouldn’t hurt to update the old worn out gauges in your dash. Dakota Digital has the perfect setup with their VFD3 Digital Instrument Gauge System! Available at CJ Pony Parts, this gauge system will give your F-100’s dash a custom look with precise digital readings that are easy to read.

The VFD3 Digital Instrument Gauge System (VFD3-67F-PU-Z) from Dakota Digital will give your classic F-100 the latest in technology and features. The gauges provide you with highly accurate readings and a highly bright vacuum fluorescent display which provides a lifetime of trouble free use. The gauge system comes with blue and teal colored lenses that you can choose from to provide a visually appealing appearance that best fits your F-100’s interior!

Digital Gauges:
- Speedometer: 0-255 MPH
- Tachometer: 0-17,500 RPM
- Oil Pressure: 0-99 psi
- Water Temperature: 0-300ºF
- Fuel Level: 0-99%
- Voltmeter: 8-17 VDC
- Standard Colors: Blue or Teal

Digital Message Centers:
Standard Displays:
- Odometer (One time user settable, Million Mile)
- Dual (A/B) Trip Meter (0-9,999.9)

Performance Meters:
- 0- 60 MPH Timer
- 1/4 mile time
- 1/4 mile end speed (trap speed)
- High speed recall
- High RPM recall

Gauges:
- Speedometer (0-255 MPH) opposite scale of main speedometer.

Built-in Indicators:
- Turn Signals (Left/ Right)
- High Beam
- Check Engine
- Parking Brake
- Cruise Control (On/ On & Engaged when vehicle is equipped)
- Gear Position (Optional GSS-2000 sensor required)
- 4 x 4 (When vehicle is equipped)
- Wait to Start (When vehicle is equipped)

Included Sensors:
- Water temperature - W/ 10ft harness
- Oil pressure - W/ 10ft harness
- Speed sensor - W/ 10ft harness
- Bushings - 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Push-button Calibration:
- Mounted pushbuttons are used to calibrate the speedometer, set the cylinder count and fuel level gauge
- These same included buttons are used to access all of the information from your LCD Digital Message Center

Please Note: GSS2000 is sold separately and is needed for gear indicator function.

*Fits directly into existing bezel. Bezel not included.

If you are looking to replace the original gauges on your F-100, CJ Pony Parts has a great brand of equipment for you to look at: Dakota Digital. Dakota Digital manufactures restoration and replacement style gauges for F-100 that incorporate new age technology, replacing the out of date components with new digital versions that fit seamlessly into position.

Order this Dakota Digital VFD3-67F-PU-Z VFD3 Digital Instrument Gauge System for your 1967, 1968, 1969, 1970, 1971 or 1972 F-100 from CJ Pony Parts today!
