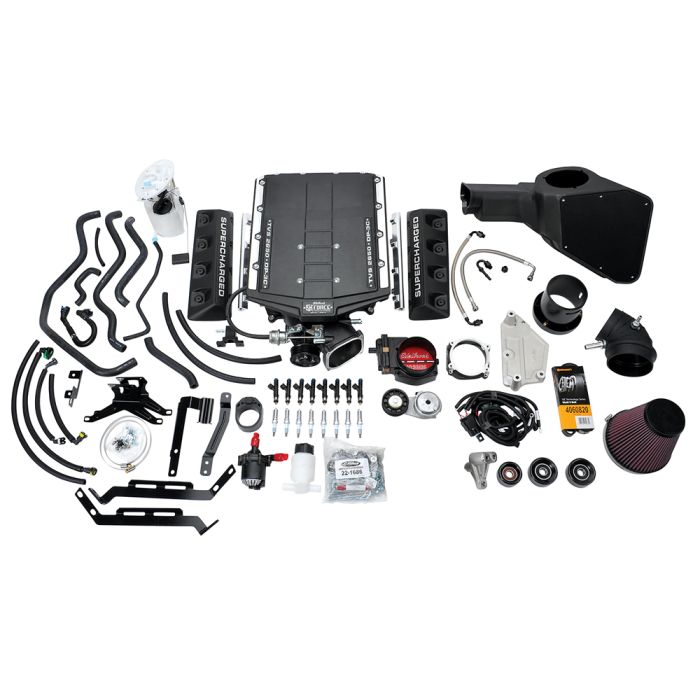

Edelbrock Stage 2 Supercharger Kit Black With R2650 TVS Rotor & Tuner Mustang 5.0L 2015-2017

Introduce 76 lb/hr direct-port fuel injectors and a 4000-LPH fuel pump to your 2015-2017 5.0L Mustang using the Edelbrock Stage 2 Black Supercharger Kit (15839)! A modular inlet supercharger system with a 113mm MAF housing serves as the centerpiece of this kit. Thanks to its 103mm billet aluminum throttle body and the tuner, you’ll experience a dramatic airflow improvement. An R2650 TVS rotor assembly and air-to-water intercooler help it come to life. While the rotor is housed in the new manifold, the intercooler is integrated and bears a dual-pass, three-core design. Together, they garner lower inlet air temperatures and boosted power potential!

Features and Benefits:
- Modular, inlet supercharger system
- 103mm, billet aluminum throttle body w/ 113mm MAF housing
- 76 lb/hr direct-port fuel injectors
- 4000-LPH pump features internal check valve
- R2650 TVS rotor assembly housed in new manifold
- Integrated, DP3C, air-to-water intercooler
- Lower inlet air temps & boosted power potential
- Higher horsepower & torque on pump gas
- Bypass valve mitigates power loss during cruise
- Lubrication system self-services at 100,000-mile intervals
- Uses 170° lobes, big bearings, & burly timing gears
- Maximum reliability & smooth acceleration
- Black powder coat blends in w/ engine compartment
- Includes pre-formed hoses, hardware, & full-color manual
- Bolts on under stock hood w/o cutting/modifications

Provided that you’re running on pump gas, this kit helps you experience next-level horsepower and torque levels. Drivers even get little to no power loss during normal driving because of the bypass valve. High-twist 170° lobes, larger bearings, and burly timing gears are supplied for smooth acceleration throughout powerband. For a long service life, the self-contained lubrication system activates at 100,000-mile intervals. With a bolt-on installation under the hood that’s completely mod-free, the kit is a great way to reliably sharpen your performance!

Vehicle Fitment:
- 2015-2017 Ford Mustang
- For models with a 5.0L engine ONLY

Please Note: For driver safety, the Edelbrock-supplied calibration will retain the factory vehicle speed limiter setting. Supercharger systems that are sold with a tuner are only emissions legal when used with the correct Edelbrock calibration.
