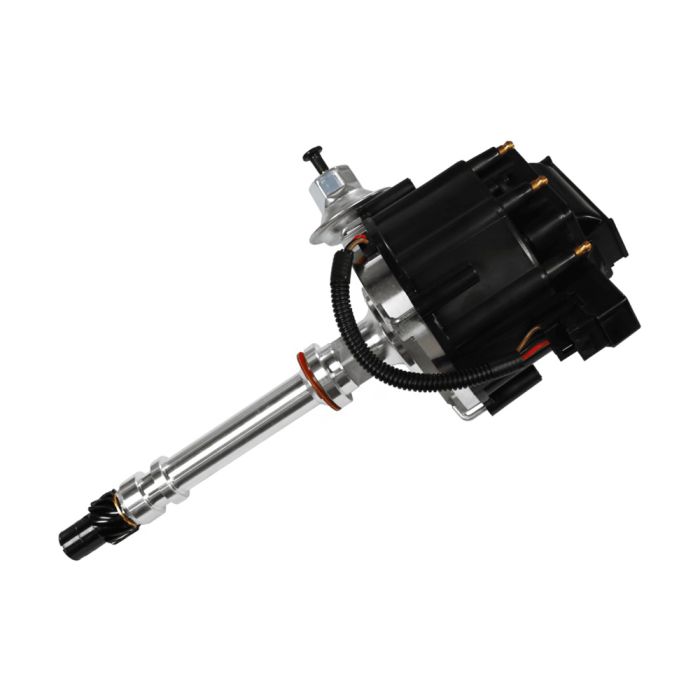

FiTech Go Spark HEI Distributor with Mechanical Advance for Small/Big-Block Chevy Engines
Highlights
- istributor with 5.8-Amp Module
- GM 4-Pin Configuration
- Smooth Operation at High RPMs
- Includes 130:1 Ratio Coil
FiTech Go Spark HEI Distributor with a Mechanical Advance for Small and Big-Block Chevy Engines.
Maximize your spark energy at any RPM with the help of this HEI distributor from FiTech, perfect for small and big-block Chevys (99017)! From a 5.8-amp dwell limit module to a 6061-T6 aluminum housing, this distributor is a powerhouse. It follows the standard GM 4-pin configuration with a centerless ground shaft that rides on an extra long lower bronze bushing. Because this bushing is coated in Oil-Lite, the intricate design rewards drivers with smooth operation at high RPMs.
Features and Benefits:
- Powerful HEI Distributor with 5.8-Amp Dwell Limit Module
- Designed in Standard GM 4-Pin Configuration
- CNC-Machined 6061-T6 Aluminum Housing
- Centerless Ground Shaft on Extra Long Lower Bronze Bushing
- Bushing Uses Oil-Lite for Smooth Operation at High RPMs
- Adjustable Mechanical Advance with Springs & Stop Bushings
- Advance is Welded to the Top of the Shaft for Easy Access
- Plating Reduces Friction & Prevents Corrosion
- 130:1 Ratio Coil Ensures Maximum Spark Energy at Any RPM
- Melonized Iron Drive Gear for Long Service Life
- Cap & Rotor Molded in 30%+ Glass Fiber Reinforced Polyester (PBT)
- High Impact & Dielectric Strength that Resists Carbon Tracking
- Advance Weight Pins Are Staked & TIG-Welded to Plate
- Nylon Pads Ensure Smooth Advance Weight Use
- Vacuum Advance Canister for Better Fuel Economy
- Includes Vacuum Advance Eliminator & Lockout Plate
Alongside the distributor is a mechanical advance, welded to the top of the shaft. This placement combined with its springs and stop bushings make it easy to adjust at any time. As for the assembly’s strength, it uses a cap and motor molded from 30%+ glass fiber reinforced polyester. Not only does this create high impact and dielectric strength, but it also allows resistance to carbon tracking. Plus, you get a vacuum advance canister that’s excellent for fuel economy and comes with a lockout plate.
Vehicle Fitment:
- 1960-1987 Chevy C10
- 1988-1998 Chevy/GMC C/K
- Compatible with small-block Chevy engines
- Compatible with big-block Chevy engines
California Residents: Proposition 65 Warning
Related Categories: C10 Restomod Engine, C10 Distributors, C/K Engine, C/K Restomod
Only for use on pre-pollution controlled vehicles: This product can be used on vehicles that were manufactured before emissions control regulations were imposed. Pre-pollution vehicles are defined as:
- 1965 and older U.S. manufactured California certified vehicles
- 1967 and older U.S. manufactured federally certified vehicles
