ICON Vehicle Dynamics Stage 3 Suspension System F-150 Raptor 2017-2020

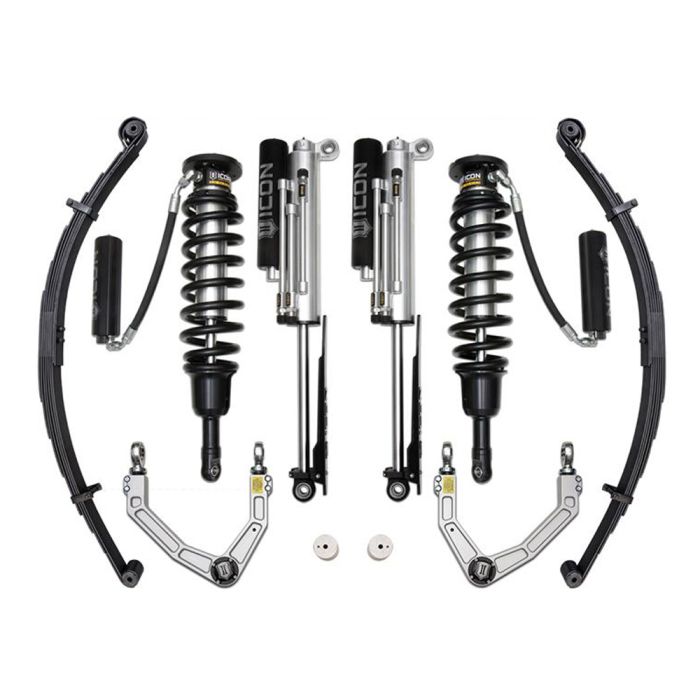

An ICON Vehicle Dynamics Stage 3 Suspension System (K93153) will lift your 2017-2020 F-150 Raptor 1 to 3 inches while increasing wheel travel and vehicle-specific valving that allows you to control your experience on and off the road. The entire ICON Vehicle Dynamics team considers your vehicle as a whole when putting together this state-of-the-art suspension system which features adjustable coilovers with 10 compression damping settings for use in a variety of terrains.

3.0 Series Coilover Shock Kit Features & Benefits:
- Adjustable coilovers yield 1-3" of front lift height
- Increased wheel travel and vehicle-specific valving for on- and off-road use
- Superior low-speed control reduces body roll and increases on-road stability
- Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings
- Multi-stage hydraulic “Bump Zone” increases bottom-out resistance in last 40% of compression travel
- 10" finned aluminum reservoirs increase oil volume and surface area
- Enhanced cooling properties and consistent damping
- Barreled coil spring design maximizes travel
- ICON-engineered coil springs resist sagging or breakage
- Heavy duty CNC machined 1" shock shafts
- FK Rod End COM12 spherical bearings ensure maximum strength and durability
- CAD-plated shock body with hard anodized piston and top cap
- Fully serviceable design allows for re-valves and rebuilds
- Bolt-in design makes for an easy install into OEM shock location

This Stage 3 Suspension System increases your Raptor's on-road stability and low-speed control capabilities using a fully serviceable design. Its shocks utilize 10" finned aluminum reservoirs that provide more oil and greater surface area, allowing for more consistent damping with better cooling. They also have a multi-stage hydraulic "Bump Zone" which increases your Raptor's resistance to bottoming out in the last 40% of compression travel.

This Stage 3 Suspension System also features 3.0 Series 3-tube bypass shocks that allow you to tackle extreme off-road scenarios thanks to a 50% increase in damping. They feature 12" finned aluminum reservoirs with plenty of surface area to keep them cool. They also have a patented ICON Anti-Wobble link and offset upper eyelet for optimized packaging, easy-to-adjust detented knobs which eliminate the use of tools, specially engineered damped valve stops that eliminate that annoying "clicking" noise, and urethane shin guards that keep the shock shaft protected from premature wear.

3.0 Series 3-Tube Bypass Shock Kit Features & Benefits:
- 3-tube bypass design and "Bump Zone" technology
- Multiple unique zones of damping and rebound control
- 50% increase in damping ability over OE shocks
- Excellent performance in extreme off-road conditions
- 12" finned aluminum reservoirs increase oil volume and surface area
- Enhanced cooling properties and consistent damping
- Offset upper eyelet with patented ICON Anti-Wobble link
- Optimized shock mounting and packaging
- Easy-to-adjust detented knobs offer quick adjustability without tools
- Specially engineered damped valve stops for quiet and precise operation
- Eliminates loud “clicking” noise common with other brands
- Urethane shin guards help to protect the shock shaft & rod end from premature wear

Multi-Rate Leaf Spring Kit Features & Benefits:
- 3 user-adjustable spring rates for unique vehicle setups
- Triple military wrap front eyelet & rear half wrap for increased durability
- Rebound leaf reduces severe axle wrap
- Leaf separators & tip inserts reduce noise/friction & increasing ride comfort
- Direct bolt-in to OEM spring location for easy install
- "ICON 1K" tested under rigorous off-road conditions
- Testing validates tune, performance, strength, and durability

Upper Control Arm Kit Features & Benefits:
- CNC-machined 6061 billet aluminum construction
- Lightweight with exceptional strength
- Built-in caster correction improves front end geometry
- Patented Delta Joint (U.S. Patent No. 10,731,700) for maximum durability and noise-free operation
- Camber and caster adjustability allows for precise wheel alignment
- ICON double adjuster sleeves for easy on-vehicle adjustment
- Vehicle-specific taper pin provides OE-like fitment
- PTFE Lined 7/8” FK Rod Ends increase rigidity and improve response
- Built-in o-ring sealed dust cover cap

Additional Information:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
- Any 2019-2020 vehicles with factory live valve shocks will need an icon damper interface device (P/N: 95199) to allow the vehicle drive modes to operate correctly with the OE shocks removed.
- Ships in multiple boxes.
