LED Taillight Kit Bronco 1966-1977/ F-100/ F-250/ F350 1964-1972

CJ's Part Number:
TLLED83
Rating:
70% of 100

Highlights

  • OEM Fitment
  • LED Brightness
  • Simple Installation
  • Sold As A Kit
$76.49

LED Taillight Kit for all 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976 and 1977 Broncos and 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971 and 1972 F-100s, F-250s and F-350s.

Give your classic 1966-1977 Bronco or 1964-1972 F-100, F-250 of F-350 the ultimate upgrade with this all-new LED tail light kit from CJ Pony Parts! These modern LED taillight panels are extremely bright and very easy to install. Each LED panel is designed to plug directly into the factory taillight bulb socket for a plug and play installation.

Features and Benefits:

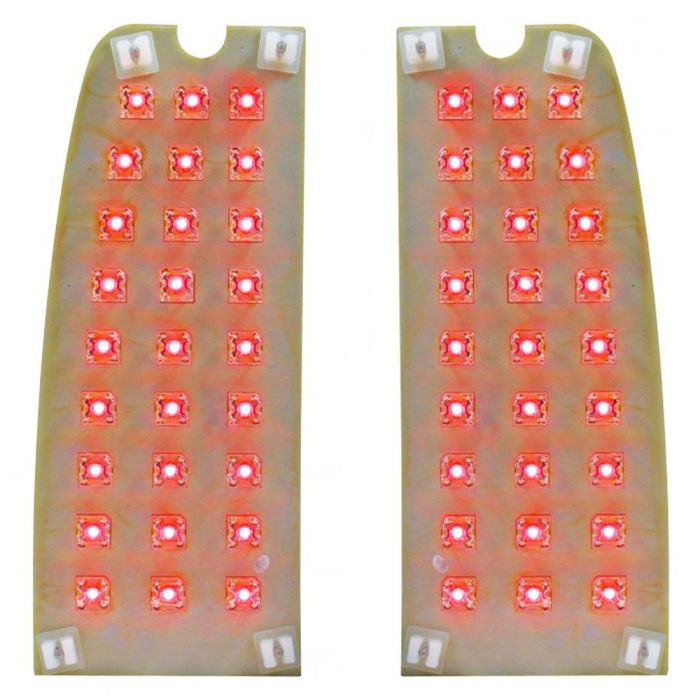

- Kit Includes a Driver and Passenger Side LED Panel
- Each Panel is Equipped with 27 Individual LEDs
- Much Brighter Light Output Than Factory Light Bulbs
- Simple Plug and Play Installation
- Will fit 1966-1977 Broncos and 1964-1972 F-100s/F-250s/F-350s

This kit comes with an LED taillight panel that is made up of 27 individual LED lights for each side of your Bronco or F series truck. Needless to say, these new LED taillights are much brighter than the factory light bulbs. Not only do LED lights look better than standard bulbs, they also provide an increase in safety since the drivers behind you will know exactly when you hit the brakes in hazardous conditions.

Please Note:
- These LED taillight panels will not replace the factory back up lights, and the use of load resistors (HW2811) are highly recommended for proper turn signal blink speed.
- This LED tail light kit will also fit 1964-1972 Ford Styleside (Fleetside) Trucks.

California Residents: Proposition 65 Warning

Installation Videos

Video Transcript

The factory incandescent bulbs for the taillights of the F-100 are pretty dull and can certainly use an upgrade, so today we're gonna get rid of them for these LED panels. These LED panels are gonna be direct fit, plug-and-play replacements for the factory incandescent taillight bulbs. They feature 27 bright LED chips that produce a bright and crisp red light, which allows for more light to pass through the lens, making your taillights brighter for more visibility and safety. For more information and pricing, click the link in the description down below. Now let's get to the install.

All right, these LED panels are pretty easy to install. All you'll need is a Phillips screwdriver.

Remove the lens. This is the taillight bulb right here. Push it in, but be careful. Do not break the glass. Twist it counterclockwise and pull it out. Grab your LED panel and plug in the bulb adapter. Push it in, twist it clockwise, lock it in place. Then you're gonna set this right in the taillight lens and reinstall the lens. Do the same thing to the other side and your install's finished.

All right, here's a side-by-side comparison of our LED taillight and the incandescent taillight. We have the LED on the right and it is brighter than the incandescent, and it has a nice custom look to it, too. The brake lights are significantly brighter, too.

Okay, we got our LED taillight panels installed in our 1971 F-250. They look a whole lot better than the factory incandescent bulbs. They give it a nice custom look, too. Install's pretty simple. It should only take you about 10 minutes and a Phillips screwdriver. Before you know it, you'll be heading on the road.
