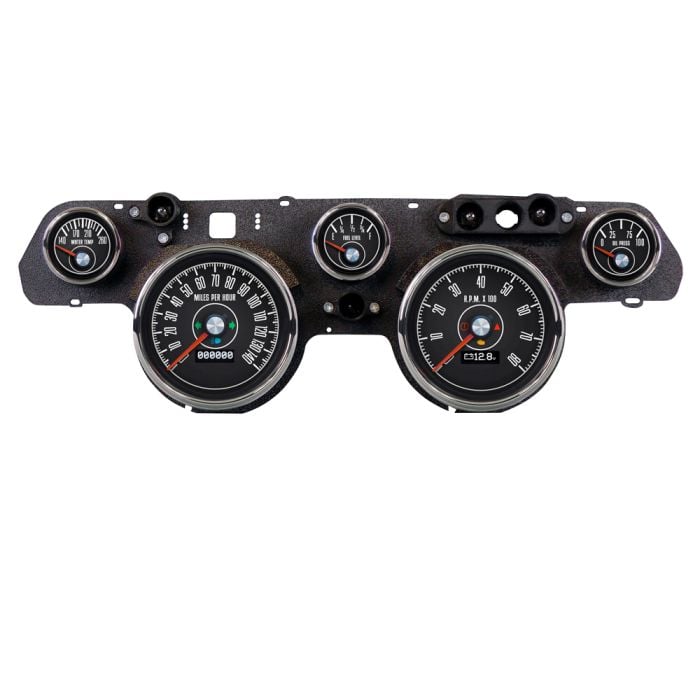

New Vintage USA M-153 Series Gauge Kit Mustang 1967-1968

Relish in the 60s-era charm your 1967-1969 Mustang is known for while mixing in modern engineering using this M-153 Series Black Gauge Kit from New Vintage USA (05305-53)! Packaged with five gauges, this kit provides users with the convenience of easy-to-read displays while preserving the timeless aesthetic. Domed glass lenses contribute to this, helping the incandescent bulbs proudly illuminate the spun-hub, backlit pointers.

Features and Benefits:
- Speed, tach, fuel, oil pressure, & water temp gauge kit
- Period-authentic domed, glass lenses
- Bright, easy-to-read displays
- Spun-hub, backlit pointers
- Illuminated by incandescent bulbs
- Fully programmable inputs & Phoenix drive tech on speed/tach
- 140-mph speed operable from any speed signal
- Each gauge: 2 AMP connectors, 4 indicator bulb assemblies, & 1 top adapter
- Includes all necessary hardware for installation

To further empower users, the kit’s 140-mph speedometer and 8000 RPM tachometer are integrated with Phoenix drive technology. It gives the freedom of fully programmable inputs in both, plus the privilege of operating the speedometer from any speed signal. The kit is complete with a mounting bracket kit, a 1/8-27 NPT bushing kit, and back clamps to ease installation!

Kit Includes:
- 4-3/8” speedometer
- 4-3/8” tachometer (8000 RPM)
- 2-1/16” fuel gauge (73-10 ohm)
- 2-1/16” oil pressure gauge (0-1000 PSI)
- 2-1/16” water temperature gauge (140-280°F)
- Hi-Match water temperature sender
- 1/8-27 NPT oil pressure sender (240-33 ohm)
- 1967-1968 Mustang mounting bracket kit
- 1/8-27 NPT bushing kit to 1/4", 3/8", & 1/2"

Additional Notes:
- Does not include a dash bezel.
- A speed sender may be required; please check your application.
