Oracle Lighting LED Reverse Light Assembly High Output With Clear Lens Mustang V6/ EcoBoost/ GT 2015-2017

Oracle Lighting:
3005-001
Rating:
95% of 100

Highlights

  • Direct Fit
  • 2,500 Lumens
  • Bright 5000K Color
  • Plug-And-Play Installation
MSRP $249.95
$213.71
You save 14%

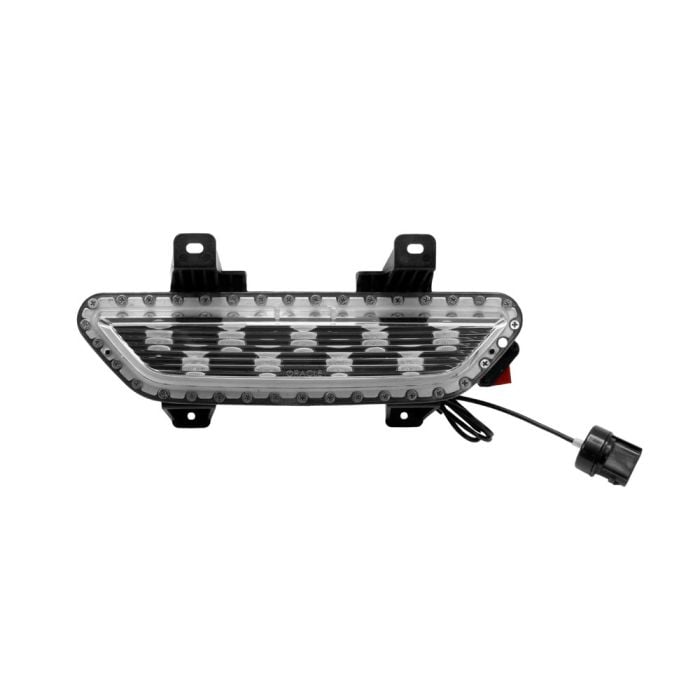

Oracle Lighting High Output LED Reverse Light Assembly with Clear Lens for 2015, 2016 and 2017 V6, EcoBoost and GT Mustangs.

Looking for high visibility at night while sporting a cool LED look? Oracle Lighting has your answer with this Clear Lens High Output LED Reverse Light Assembly (3005-001) designed as a direct-fit upgrade for your 2015-2017 V6, EcoBoost or GT Mustang.

Features and Benefits:
- Fits Directly Into OEM Bumper Slot With Zero Modification
- High-Power LED Bulbs For Maximum Visibility
- Bright 5000K Color And 2,500 Lumens of Light Output
- 27 Watts Total From CREE XP-E LEDs
- LED Life of 60,000 Hours
- Easy Plug-And-Play Installation
- Meets DOT, NHTSA and SAE Requirements

Includes:
- (1) Oracle Lighting High Output LED Reverse Light Module
- Detailed Installation Instructions

This Oracle Lighting High Output reverse light (3005-001) is a complete housing upgrade for your S550 Mustang. The LEDs inside the housing generate 450% more light than the OEM halogen housing. Thanks to an easy plug-and-play installation, this reverse light assembly is a no-brainer for any S550 Mustang build. With a 5000K color and 27 watts of CREE XP-E LEDs, this reverse light shines much brighter behind the car so backing up couldn’t be any easier.

Vehicle Fitment:
- 2015-2017 V6 Mustang
- 2015-2017 EcoBoost Mustang
- 2015-2017 GT Mustangs
*Will NOT fit GT350 models or any 2018+ Mustangs.

Please Note: This reverse light is NOT designed for use with models built for distribution outside of the USDM that feature the integrated rear fog light assembly.

California Residents: Proposition 65 Warning

Installation Videos

Video Transcript

LED lighting upgrades have been very popular to the S550 owners while the factory headlights and taillights are pretty impressive there's plenty of other lights on the car that could use an update. One of the common ones that gets upgraded is going to be the factory backup light. I'll be showing you several different ways to replace the single bulb, if you're looking to take it to the next level Oracle offers LED housing. Today we're going to show you how to install this on our 2015 Mustang GT.

This complete replacement housing is going to bolt in place of your factory backup lit assembly and will plug into the factory plug. Instead of having one bulb or one LED bulb, you've got two rows of LEDs for total light-up of 2500 lumens. Meaning it's going to be very, very bright. This has a lifespan of 60,000 hours so no worries about it burning out and the color is going to be a 5000K which would be a nice true light.

On the back you can see the massive heat sink to keep everything cool and then the factory style plug making a plug and play installation.

Before I begin the installation here's a shot of the factory backup light as a comparison. The installation is pretty straightforward. The only tool you're going to need is a 7 millimeter socket and a decent lamp extension or a 7 millimeter nut driver like I'm using here. The first part of the installation is remove the two screws under the bumper. The reason we're removing these two is basically for flexibility. The top two screws that hold in the backup light are kind of hidden so once we remove these we can pull down the bumper, make it easier to get to them.

With these two screws out now you can push forward and get it off the clips so you can see the bumper has a lot of flexibility to it. Next step we're going to do, unplug the factory bulb and disconnect the harness over there as well. Push down the tab and pull out. Give this little clip a little tug that'll come off. Push the harness out of the way.

There's four screws to remove to remove the housing. There's two that are easy to see at the bottom and then two that are pretty far in up top here. We're going to start with the bottom ones.

Now you want the new assembly up into place. We'll start by installing the lower screws. The top screws in, put a little piece of tape or maybe a little bit of strip caulk to hold it onto your socket or nut driver make it a little bit easier to get it up in there.

We're going to attach the bottom of the bumper cover next. Make sure you push the harness out of the way.

The last step is to plug in our LED into the factory plug. You'll want to tie the harness out of the way. Throw a zip tie in here if you have one, just to keep everything up out of the way. Make sure the harness isn't near the exhaust or anything, and your installation is finished.

Here is our ORACLE LED lit up. As you see this is like a headlight for the back of your car. This is so much brighter than the factory one it's not even comparable.

Our 2015 Mustang is about 15 feet away from the wall behind us and as you can see it lights up the entire wall. If you're ever worried about seeing at night when backing up with your Mustang this is the one to go with. It's insane how bright this thing is. We have every light in our studio turned off and it lights up the entire back of it with just the backup light.

If you're really looking to light up the ground behind you when reversing you can't go wrong with the ORACLE LED backup light. Obviously you can see it's far, far brighter than a stock light or even the stock housing with an LED bulb in it. It's available in a clear lens shown here and also available in a smoke lens as well. The installation is pretty straightforward, take you no more than a half hour, and back on the road in no time.

Vehicle Fitment

This product will fit the following Mustang years:
