Radiator Aluminum 3-Row 6-Cylinder Bronco 1966-1977

CJ's Part Number:
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 119.06ms
  • bvseo-msg: HTTP status code of 404 was returned;


  • Direct-Fit Replacement
  • Increases Cooling Efficiency
  • Includes Radiator Cap
  • Aluminum Construction
MSRP $275.99
You save 58%
Only 0 left

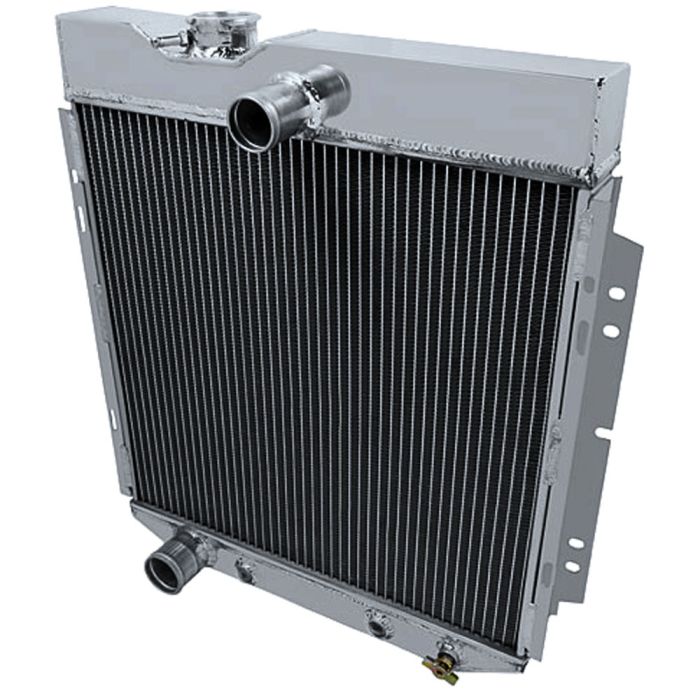

Aluminum 3-Row Radiator for all 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976 and 1977 Broncos with a 6-Cylinder Engine.

Keep your 1966-1977 Bronco's 6-cylinder engine cool on those hot summer days with an all-new, high-performance Aluminum 3-Row Radiator! This aluminum radiator is an outstanding upgrade over the original radiator and provides superior cooling efficiency and reliable performance when you need it most.

Radiator Specifications:
- Type: Bracket Mounted with a 3-Row Core
- Construction: 100% all Aluminum
- Cooling Range: Up to 450HP
- Radiator Cap: Included
- Transmission Cooler: Included
- Transmission Type: Fits Manual or Automatic

Radiator Dimensions:
- Total: 21-5/8" x 19-5/8"
- Core: 16-1/2" x 17-1/8"
- Inlet: 1-1/2" Center
- Outlet: 1-3/4" Driver Side
- Tanks: 2-3/4" Thick
- Tubes: 0.63" Thick
- Tranmission Cooler: Yes

This high-performance radiator is made entirely of aluminum from the tank to the 3-row core, and even the welds, all without using any epoxy. With a full aluminum construction, this radiator is nearly 10-20 pounds lighter than a copper or brass radiator. Not only will you gain from weight savings, but you can also expect much lower temperatures since aluminum is capable of dissipating heat a lot faster than copper or brass.

What really makes this aluminum radiator stand apart from the rest is the high density core which has cooling rows that are spaced 3/8" apart giving you 25 percent more rows than most aftermarket aluminum radiators and almost 35 percent more than OE copper radiators. This radiator also features 14-16 cooling fins per inch providing almost 1,500 more fins than other aluminum radiators and roughly 3,000 more than OE copper radiators.

Please Note: This aftermarket radiator will require a custom upper radiator hose to make the tight turn from pump to top center inlet.

Tech Tip: A single 16" electric fan is not required, but is highly recommended and has proven to work best with this core size.

Searching for a reputable company that only sells the finest parts available to restore or modify your beloved 1966-1977 Ford Bronco? Well, you have finally come to the right place! CJ Pony Parts has been a leader in the automotive industry for carrying the very best Mustang parts available and is now your one stop shop for all things classic Ford Bronco.

Order an Aluminum 3-Row Radiator for your 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976 or 1977 Bronco with a 6-Cylinder Engine from CJ Pony Parts today!

California Residents: Proposition 65 Warning

Installation Videos

Vehicle Fitment

This product will fit the following Bronco years:

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.23ms
  • bvseo-msg: HTTP status code of 404 was returned;

I've been looking at this radiator and can't see how that center inlet is gonna work. Mine is far to the passenger side and bending the upper hose that far would kink it. Do you have an installed pic?

Asked by: sixybronco
This radiator is for 6 cylinder broncos.
Answered by: rk cjpp
Date published: 2018-01-22
