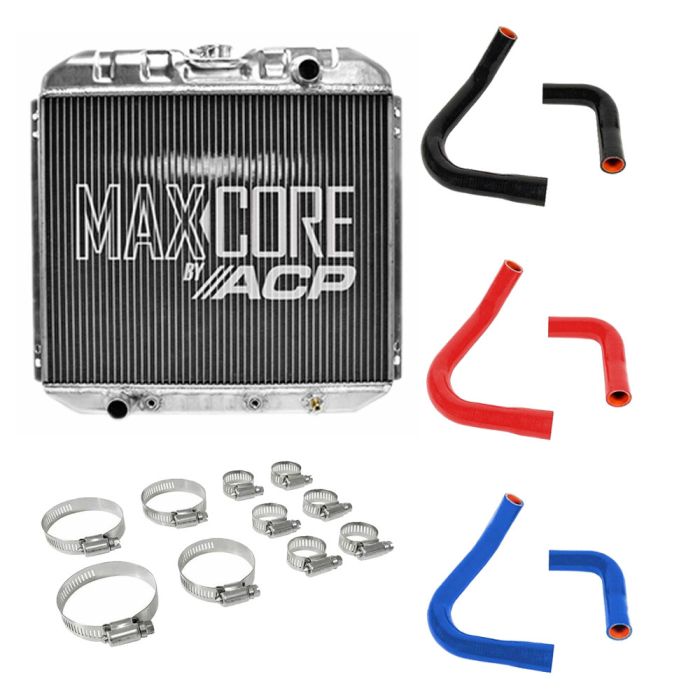

MaxCore Type 340 Radiator Kit 6-Cylinder Mustang 67-68/ no A/C 69-70 2-Row Aluminum

For better cooling, get your 1967-1968 6-cylinder Mustang or 1969-1970 6-cylinder Mustang without A/C this kit! It centers around a MaxCore Type 340 radiator, built with 2 rows from aluminum.  With oversized 1-1/4" tubes, it combines for a design that boosts cooling efficiency beyond traditional 4-row copper designs. The kit also features an integrated transmission cooler for automatic applications. Complete with upper, lower, and bypass hoses made of silicone for greater strength.

Features and Benefits:
- MaxCore Type 340 2-row aluminum radiator
- Direct-fit design, no drilling or modifications needed
- Oversized 1-1/4" tubes for improved cooling performance
- Factory-style construction with billet filler neck
- Integrated transmission cooler
- Factory-style brass petcock
- Your choice of black, blue, or red hoses
- Silicone upper, lower, and bypass hoses
- Higher burst pressure resistance than rubber hoses
- Nylon-reinforced lower hose with stainless spring
- Full 10-piece stainless clamp kit

Specifications:
- Overall dimensions: 20-1/2" width x 21-3/8" height x 3" depth
- Core size: 20" width x 16-1/2" height x 2-5/8" depth
- Total tubes: 49
- Tube spacing (fin height): 5/8"
- Fins per inch: 16
- Inlet: 1-1/4" top passenger side
- Outlet: 1-1/4" bottom driver side
- Mount width: 21-1/2" flange style
- Weight: 13.5 lbs.

Vehicle Fitment:
- 1967-1968 6-cylinder Mustang
- 1969-1970 6-cylinder Mustang without factory A/C
*Does NOT fit 1969-1970 models equipped with factory A/C
