Sequential LED Taillight Kit 8-Pattern Mustang 1969

CJ's Part Number:
TLLED69
Rating:
67% of 100

Highlights

  • Direct-Fit Replacement
  • 8 Sequential Patterns
  • Over 40 Bright LEDs Per Side
  • Correct Plug Connector
MSRP $409.99
$314.99
You save 23%
Earn
points.

8-Pattern Sequential LED Taillight Kit for 1969 Mustangs.

This 8-Pattern Sequential LED Taillight Kit for 1969 Mustangs takes sequential taillights to the next level. Eight user selectable sequential patterns are included in this plug-n-play wiring kit. Switching between the sequential patterns only requires the push of a button. The factory style connectors plug right into your OEM light bulb socket for simple installation. You can reuse your OEM housings and lenses. The factory taillight housing's waterproof sealing is maintained. This kit is engineered for simple mounting, wiring and operation.

Features & Benefits:
- Direct-Fit Replacement
- 8 Sequential Patterns
- Over 40 Bright LEDs Per Side
- Correct Plug Connector

The Standard Flash Mode flashes all LEDs in all panels together with the flasher relay or solid light with brake. This mimics light bulb operation. The Demonstration Mode steps through each sequential pattern cyclically. This mode flashes each sequence six times before stepping to the next sequence, then repeats.

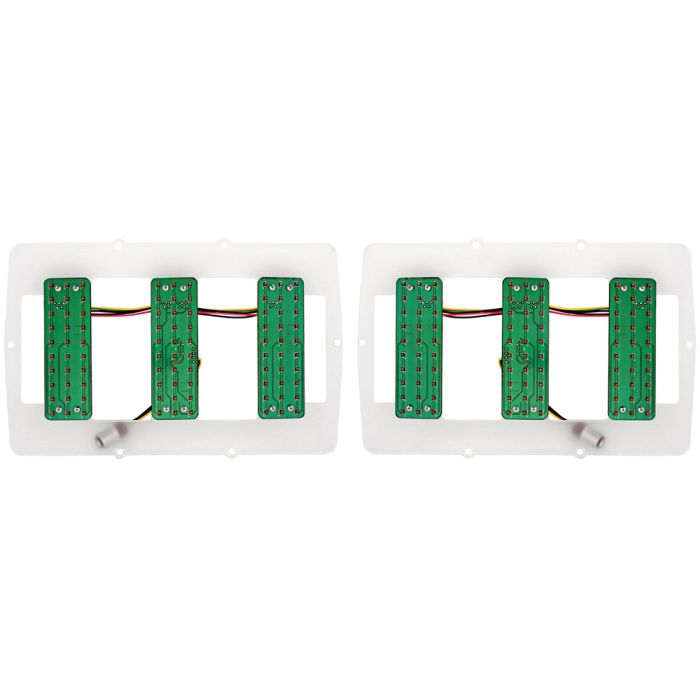

Over forty bright LEDs (per panel) replace the factory incandescent bulbs. The kit is designed to utilize all available illumination area of the lenses. LEDs are brighter than incandescent lights, last much longer, and run extremely cool. LED voltage is internally regulated assuring constant brightness regardless of vehicle voltage. Input voltage is rated at 11-15 volts. The kit doesn't draw any power when the ignition is off. All mounting hardware is included.

*This requires low current draw flasher module. This is also sold separately.

California Residents: Proposition 65 Warning

Related Categories: Mustang Lighting, Mustang Taillights, Restomod Lighting, Mustang LED Lighting, Mustang LED Taillights

Installation Videos

Video Transcript

We’re here with a set of custom programmable sequential LED taillights fitting all 1969 Mustangs.

These custom sequential LED taillights are going to fit in the stock housing of all 1969 Mustangs. They plug into your factory bulb location and feature 90 ultra-bright LED's. Unlike normal sequencing LED taillights these are actually programmable and give you eight different options for sequencing. Here we mocked up a 69 taillight lens to show you some of the sequencing options with these taillights.

You have your standard sequencing ... and there's a button on the back that makes them programmable. Option one is going to be normal, where they all light up at the same time. Option two, you'll get two flashes in the light knowing you changed it. Option two will do inboard to outboard. Option three will do inboard to taillight to out and then back. Five will be sequentially inboard to out and then back. Option six will be center to outboard. Option seven will be center to out and then back in. Eight will be sequential center to out. Your last option will be center to out and then back.

The program-ability adds a really unique twist to these custom LED taillights that will look great on your 1969 Mustang.

Vehicle Fitment

This product will fit the following Mustang years:
