Total Control Products Power Rack And Pinion Conversion For 3/4" Solid Shaft Column Small Block 1967
Total Control Products

Product Description

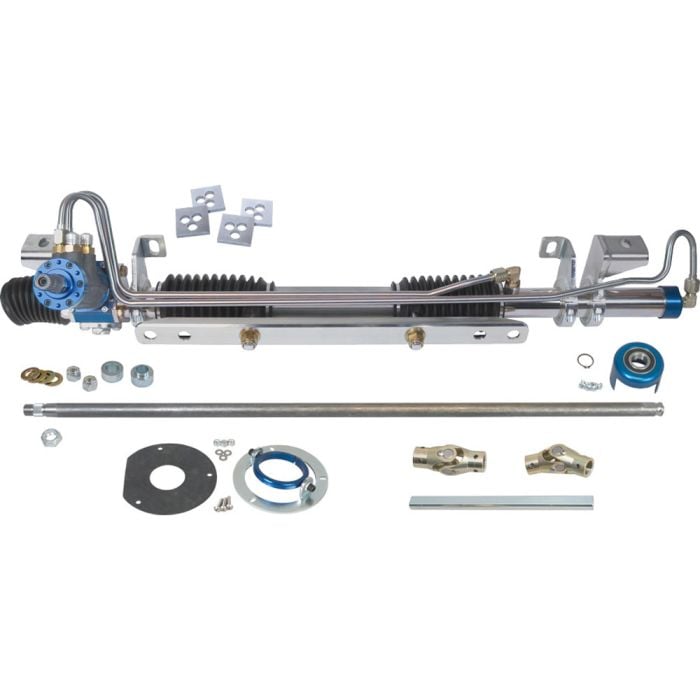

Total Control Products Power Rack and Pinion Conversion for 1967 Mustangs with a Small Block Engine and 3/4" Solid Shaft Column.

Looking to enhance your classic 1967 Mustangs steering? Then you should take a look at this Total Control Products Power Rack and Pinion Conversion for Small Block Engines with a 3/4" Solid Shaft Column TCP RCKP223 from CJ Pony Parts! This rack is a big upgrade over the stock components that duplicates steering geometry and increases steering feel among many other beneficial features.

This high performance rack and pinion from Total Control Products allows correct steering geometry and positive, direct steering feel for your classic Mustang that you cannot obtain with OEM units. To achieve a three turn lock-to-lock, Total Control utilizes quick ratio, straight-cut gears. This provides a quicker steering response compared to the 4-5 turns on a standard OEM steering system. To simplify the installation of the rack, factory mounting is used whenever possible along with a mixture of mounting brackets and centerlinks that help adapt to your 67 Mustang. The mounting brackets and centerlinks are engine size specific to take into account for oil pan clearance depending on the varying height of the rack. After installation, the straight steel tubing of the rack replaces the factory crossmember, adding more support and strength over the original tubular crossmember design.

Early 1967 Models: Column tube covers steering shaft completely or exposed shaft above rag joint is 3/4" diameter. Tilt and swing-away columns must upgrade to 1968 or later column.

Late 1967 Models: Exposed shaft above rag joint is 1" diameter.

When it comes to a successful rack and pinion conversion, there are six key features that are mandatory. Total Control Products has the only system on the market that nails all six of these features to bring you the most superior rack and pinion system.

Tires must turn as far as the factory system.
- TCP’s rack and pinion duplicates the factory travel of 6-3/8”, where typical OEM manufactured rack and pinions only have 5-1/2” of travel.

Steering column must provide adequate header clearance.
- Total Controls rack and pinion offers the most clearance for the installation of aftermarket headers and exhaust for classic Fords by keeping the steering shaft and universal joints close to the frame rail.

Correct Steering Geometry must be maintained.
- Incorrect steering geometry can lead to “Ackerman” problems and “bump steer”. Both of which can lead to excessive tire wear and a decrease in handling performance. This rack allows for exact duplication of stock inner tie rod positions to maintain correct geometry.

Installation must not decrease ground clearance.
- This Total Control Products rack and pinion maximizes ground clearance by replacing the factory crossmember behind the oil pan.

Frame stiffening crossmember is required.
- Stronger in both compression and torsion compared to the factory crossmember, the steel tubing of the rack has a 20% larger diameter than the factory brace of which it replaces.

System must allow for comfortable road feel.
- With its simple and efficient design, this TCP rack and pinion offers superior road feel and steering that can’t be matched. The main key to this superb steering feel is the use of straight-cut gears. Straight cut gears drive the rack gear in the desired direction, as opposed to OEM helical gears that slide across multiple contact surface that cause increased friction and wear.

Please Note: Installation of the rack and pinion on 64-66 Mustangs will require V8 spindles and tie-rod assemblies.

*Mustangs equipped with the 351 Cleveland engine will require installation of the big block power rack and pinion conversion.

Total Control, a partnered manufacturer of CJ Pony Parts, now has a full selection of their premium quality equipment available below. Total Control is an industry leading manufacturer of safety and steering assembly equipment for a wide range of Mustang years and models. They supply Mustang owners with a variety of products, ranging from bumpsteer kits, shock tower braces and coilover packages, to engine mounts, subframe connectors, driveshaft safety loops and suspension kits.

Order this Total Control Products TCP RCKP223 Power Rack and Pinion Conversion for your 1967 Mustang with a Small Block Engine and 3/4" Solid Shaft Column from CJ Pony Parts today!

Similar Mustang Parts

similar Mustang parts More Rack & Pinions

Mustang Applications

This product will fit the following Mustang years:

Product Reviews

Write a review
  • bvseo_sdk, p_sdk, 3.2.0
  • CLOUD, getContent, 116.03ms
  • bvseo-msg: HTTP status code of 404 was returned;

Product Questions

Hi Had a total control rack kit from you 18months ago, for a 1868 shelby 500 do you have the hydrolic pipes for the kit and at moment have standard pump, is that ok?Regards Norman

Asked by: norman hughes
You will need one of these kits,,
Answered by: rk cjpp
Date published: 2017-08-24
